VC Codes

WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

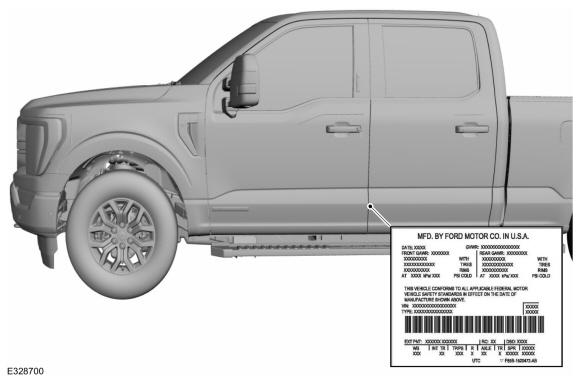

VC Label Locator

Courtesy of FORD MOTOR COMPANY

The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

Courtesy of FORD MOTOR COMPANY

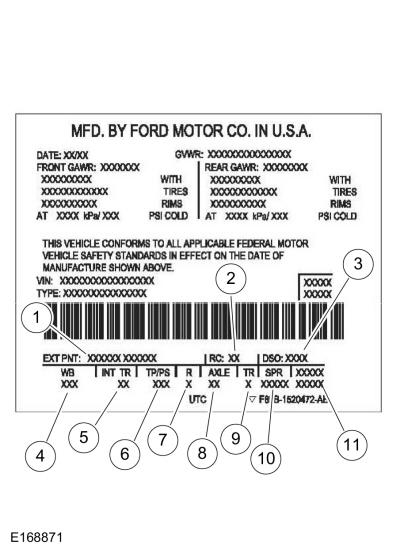

Item	Description
1	Exterior paint code
2	Region code
3	DSO (District Special Order) code
4	Wheelbase code
5	Interior trim code
6	Tape/paint stripe code
7	Radio code
8	Axle code
9	Transmission code
10	Spring code
11	Powertrain calibration information

Paint Codes

Paint codes are listed as a 2-part code. The first set of numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base/clear coat finish.

Primary Body Color

AT - Yellow W6695F (fleet/kcap only)
AZ - Star White Metallic (tri-coat) (DTP only)
B1 - School Bus Yellow (fleet/kcap only)
B3 - Atlas Blue Metallic (kcap only)
CN - Code Orange (DTP only)
D1 - Stone Gray (DTP only)
D4 - Rapid Red (tinted clearcoat) (DTP only)
DR - Avalanche
E4 - Vermillion Red (kcap only) (fleet only)
EA - Hot Pepper Red Metallic (tinted clearcoat) (kcap only)
G4 - Azure Gray Metallic (tri-coat) (DTP only)
GP - Iced/Elite Blue (REVC only)
GR - Green W7514G (fleet/kcap only)
HX - Antimatter Blue / Signature Navy
JS - Iconic Silver / Silver Radiance
KU - Area 51 Blue (kcap only)
M7 - Carbonized Gray / Asher Gray
MB - Orange W5684E (fleet/kcap only)
PQ - Race Red (kcap only)
UM - Agate Black Metallic
YZ - Oxford White

2-Tone/Accent Color

Exterior 2-Tone/Accent Colors are as follows.

D1 - Stone Gray
JS - Iconic Silver
M7 - Carbonized Gray
UM - Agate Black Metallic

Wheelbase Codes

The following identifies the vehicle wheelbase:

122 - 3, 098 mm (122 in) wheelbase
141 - 3, 581 mm (141 in) wheelbase
145 - 3, 683 mm (145 in) wheelbase
157 - 3, 987 mm (157 in) wheelbase
163 - 4, 140 mm (163 in) wheelbase

Interior Trim Codes

Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat type and fabric style. The second digit indicates the interior trim color.

Interior Trim Type

2 - Black Appearance Package leather#2, 40/console/40 bucket seats, Lariat
3 - Black Appearance Package leather#2, 40/console/40 bucket seats, Platinum
4 - Black Appearance Package leather#5, 40/console/40 bucket seats, XLT
5 - Recaro blue accent leather#1, 40/console/40 bucket seats, Raptor
6 - XL Rattler cloth 40/20/40 split bench seat
7 - Standard leather#4, 40/console/40 bucket seats, Raptor
8 - XL Rattler 40/console/40 bucket seats
9 - Luxury micro-perforated leather, 40/console/40 bucket seats, Platinum package
A - Vinyl 40/20/40 split bench seat
B - Luxury leather, 40/console/40 bucket seats
C - Cloth 40/20/40 split bench seat
E - Black Heavy Duty cloth SSV, 40/console/40 bucket seats
F - Sport cloth, 40/console/40 bucket seats
G - Cloth, 40/20/40 split bench seats
H - Luxury micro-perforated leather, 40/console/40 bucket seats
J - Cloth, 40/console/40 bucket seats
K - Luxury micro-perforated leather, 40/console/40 bucket seats
L - Black sport cloth#3, 40/console/40 bucket seats
M - Cloth, 40/20/40 split bench seat
N - Unique leather#2, 40/console/40 bucket seats
P - Vinyl cloth, 40/blank/40 Captain chair seat
R - Perforated leather, 40/console/40 bucket seats, Raptor
S - Raptro R Leather 40/console/40
T - Luxury leather, 40/console/40 bucket seats
U - Cloth, 40/console/40 bucket seats
V - Cloth Vinyl, 40/console/40 bucket seats
W - Cloth, 40/console/40 bucket seats
X - Police grade heavy duty cloth, 40/console/40 bucket seats
Y - XLT Heritage 40/console/40 bucket seats

Interior Trim Color Codes

A - Admiral Blue
B - Black
J - Java
S - Medium Dark Slate
T - Baja Tan

Tape/Paint Stripe Codes

Tape and paint stripe codes do not apply.

Radio Codes

The following lists available radio codes:

A - AM / FM stereo
2 - AM / FM stereo with SDARS (satellite digital audio receiver system)
3 - AM / FM stereo with SDARS (satellite digital audio receiver system) and HD (high-definition), B and 0 Play®
6 - AM / FM stereo, Digital A2B (Automobile Audio Bus), TMC
8 - AM / FM stereo with SDARS (satellite digital audio receiver system) and HD (high-definition), B and 0 Play®
9 - AM / FM stereo, Digital A2B (Automobile Audio Bus), TMC, Export

Axle Type

The following lists the available axle ratios and associated codes:

15 - 3.15 ratio, non-limited slip
19 - 3.55 ratio, non-limited slip
26 - 3.73 ratio, non-limited slip
27 - 3.31 ratio, non-limited slip
L3 - 3.31 ratio, electronic locking differential
L4 - 4.10 ratio, electronic locking differential
L6 - 3.73 ratio, electronic locking differential
L9 - 3.55 ratio, electronic locking differential
LB - Electric drive E-locking differential

Transmission Codes

Available transmissions are as follows:

G - 10-speed automatic (10R80)
H - HEV 10-speed (A10R80-MHT-X)
L - BEV Transmission

Spring Codes

Spring codes are listed as a 2-part code. The first 2 characters identify the RH and LH front springs. The third and fourth characters identify the RH and LH rear springs.

Front Springs

Base part number - 5310

Rear Springs

Base part number - 5560
