Image Processing Module A (IPMA): Removal
WARNING: This page is about a different car, the 2023 Ford F-150 Lightning and 2023 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- If a new IPMA is being installed, using a diagnostic scan tool, begin the PMI process for the IPMA following the on-screen instructions.

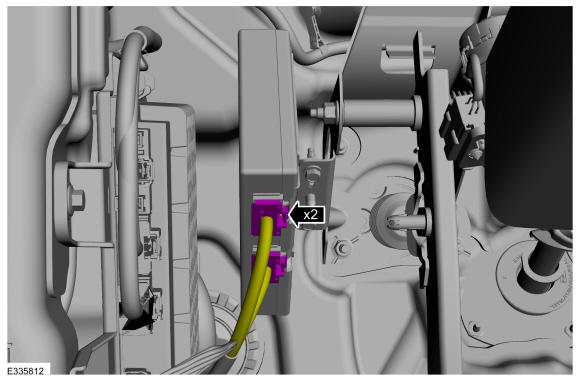

- Disconnect the trailer tow lighting module electrical connectors.

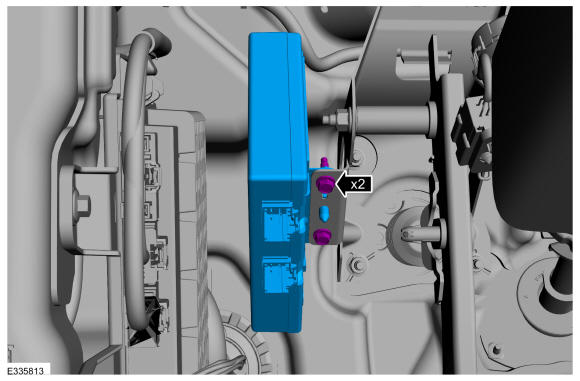

- Remove the bolts and trailer tow lighting module.
Torque: 106 lb.in (12 Nm)

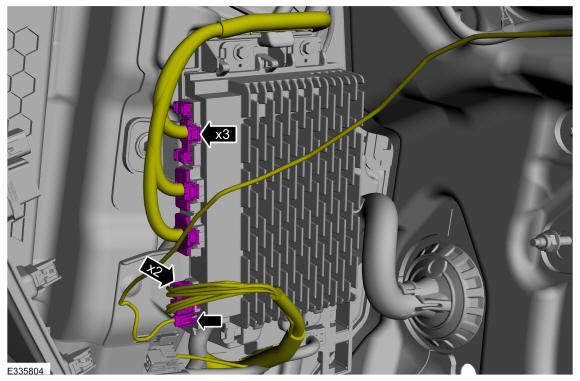

- Disconnect the IPMA electrical connectors.

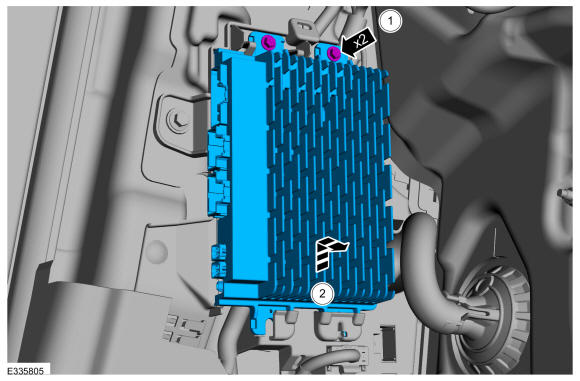

- Remove the bolts and IPMA
Torque: 53 lb.in (6 Nm)
