Image Processing Module A (IPMA) Camera: Removal

WARNING: This page is about a different car, the 2022 Ford F-150 Lightning and 2022 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

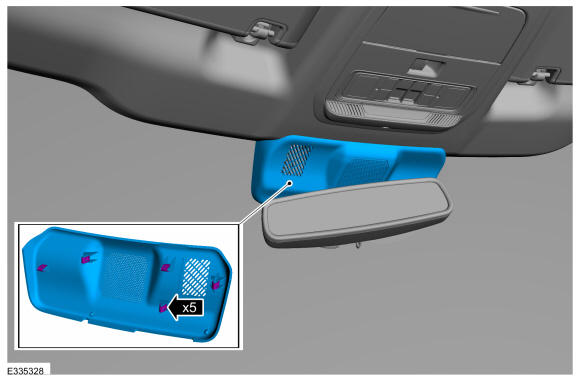

  1. Remove the rain sensor cover.
    GFD686280Courtesy of FORD MOTOR COMPANY

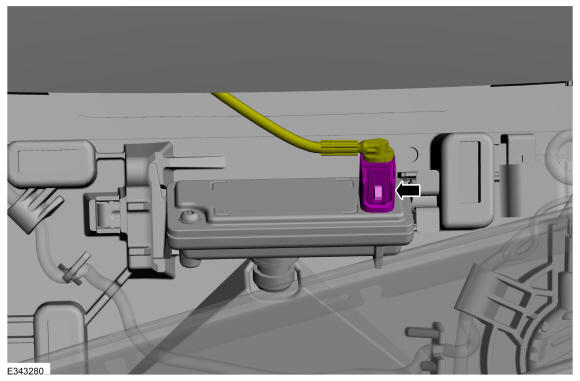

  2. Disconnect the IPMA camera electrical connector.
    GFD686281Courtesy of FORD MOTOR COMPANY

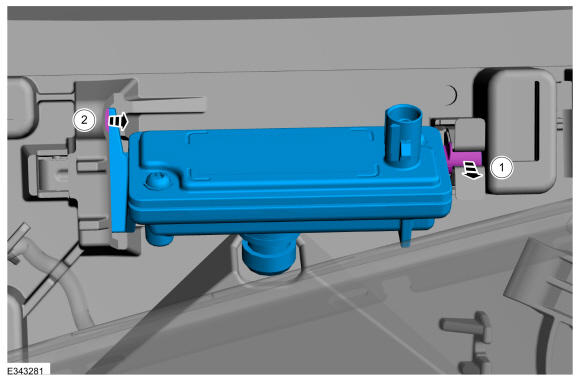

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD686282Courtesy of FORD MOTOR COMPANY
