Steering Column - System Operation and Component Description: Notes

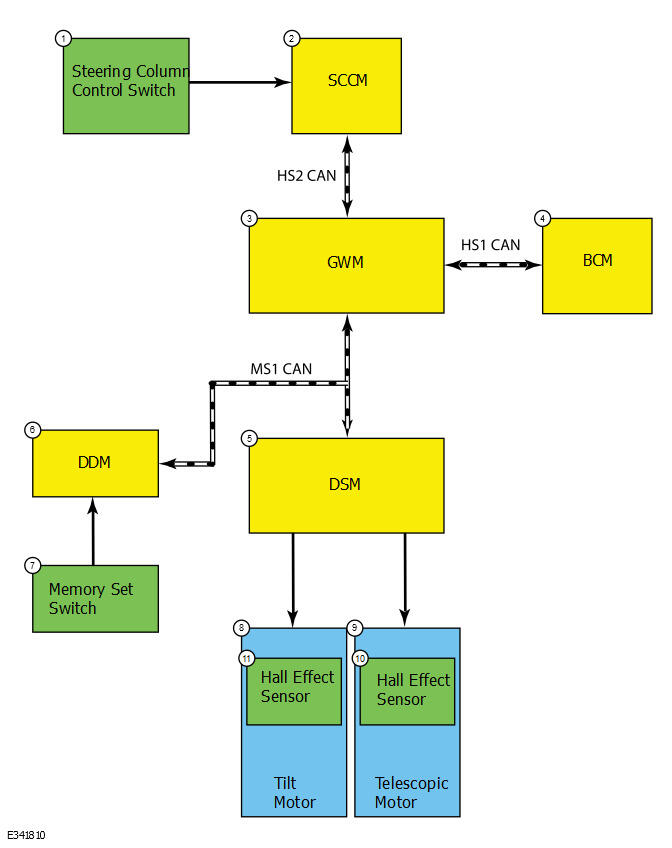

System Diagram

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Steering Column Control Switch
2	SCCM
3	GWM
4	BCM
5	DSM
6	DDM
7	Memory Set Switch
8	Tilt Motor
9	Telescopic Motor
10	Hall Effect Sensor
11	Hall Effect Sensor
