Vehicle Dynamics Control Module (VDM): Removal

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: The PMI process must begin with the current VDM installed. If the current VDM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the VDM following the on-screen instructions.

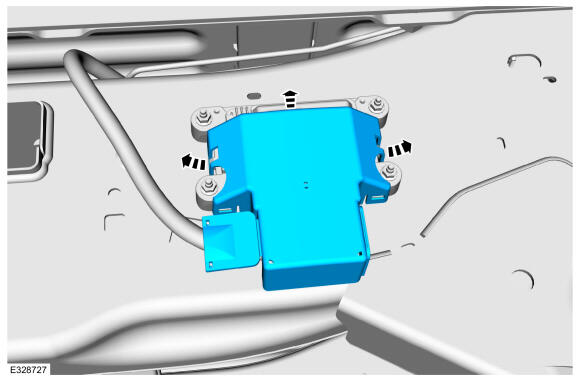

Remove the VDM cover.

Courtesy of FORD MOTOR COMPANY

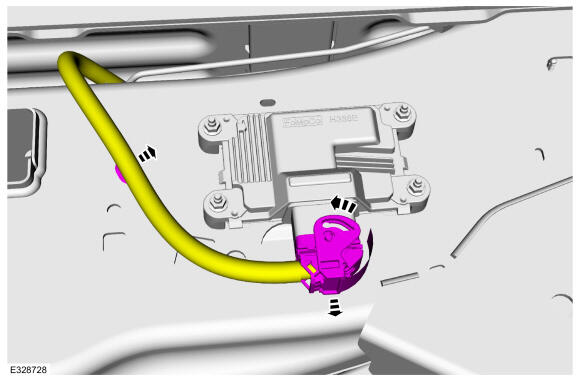

Disconnect the VDM electrical connector, release the clip and position the harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The VDM is mounted to the outside of the LH frame rail.

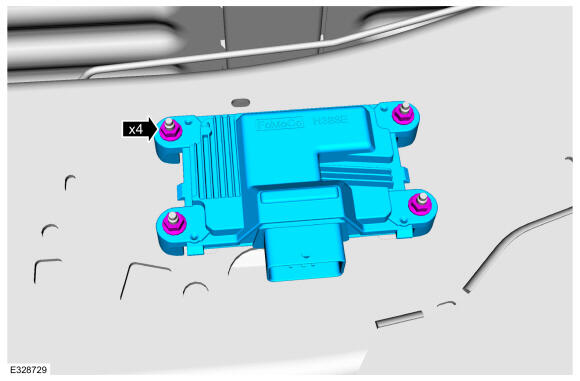

Remove the VDM nuts and remove the VDM.

Torque

: 9 Nm

Courtesy of FORD MOTOR COMPANY
