Engine Emission Control - Component Location

Courtesy of FORD MOTOR COMPANY

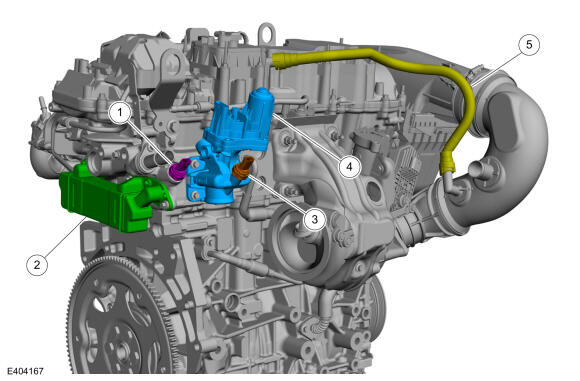

Item	Description
1	EGR back pressure sensor-downstream
2	EGR cooler
3	EGR back pressure sensor-upstream
4	EGR valve
5	LH crankcase ventilation tube

Courtesy of FORD MOTOR COMPANY

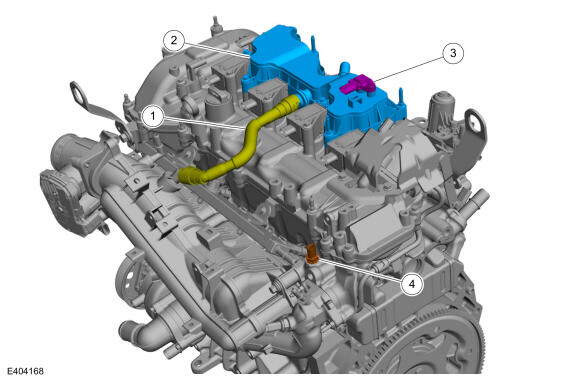

Item	Description
1	RH crankcase ventilation tube
2	Crankcase vent oil separator
3	Crankcase vent tube pressure sensor
4	EGR temperature sensor
