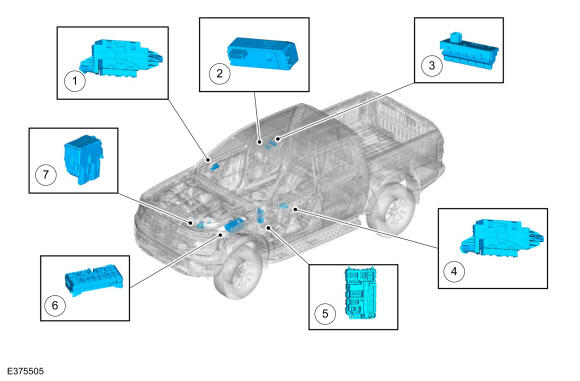

Module Controlled Functions - Component Location

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	PDM
2	RTM
3	Auxilary Switches
4	DDM
5	BCM
6	BCMC
7	Auxilary Relay Box
