Body Control Module C (BCMC): Removal

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.

Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
Disconnect the battery. Refer to: BATTERY DISCONNECT AND CONNECT

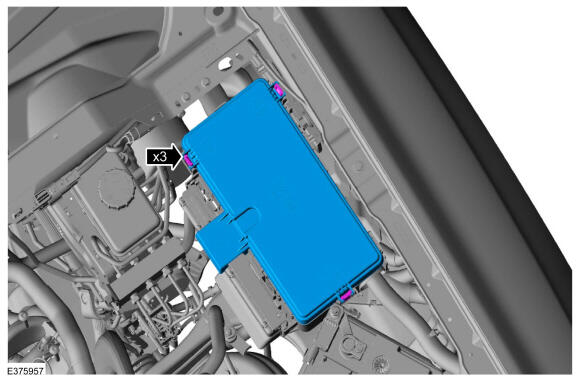

Release the tabs and remove the BCMC access cover.

Courtesy of FORD MOTOR COMPANY

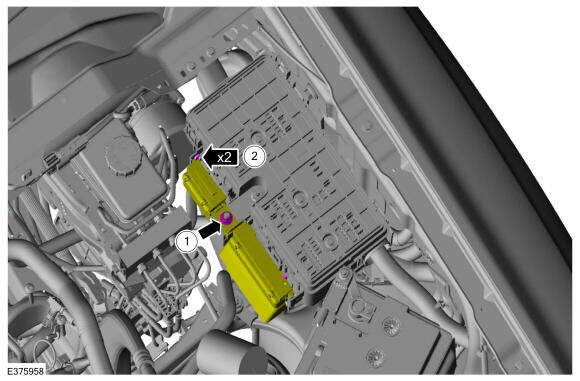

Remove the wiring junction blocks.
1. Remove the wiring junction blocks nut.
2. Release the tabs and position aside the wiring junction blocks.
Courtesy of FORD MOTOR COMPANY

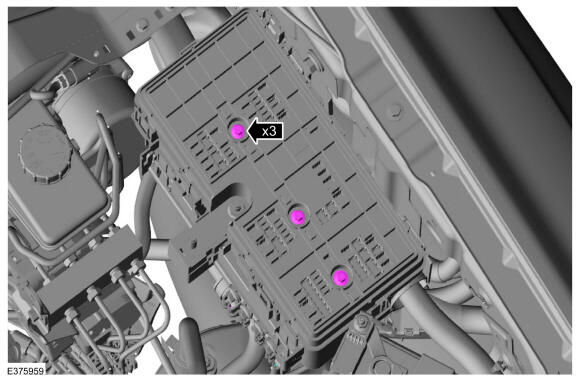

Loosen the BCMC bolts.

Courtesy of FORD MOTOR COMPANY

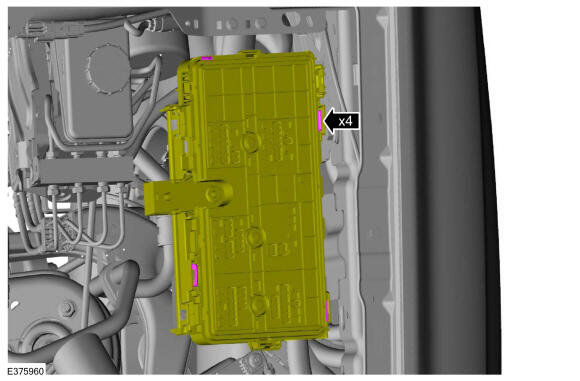

Release the tabs and position the BCMC up from the bracket.

Courtesy of FORD MOTOR COMPANY

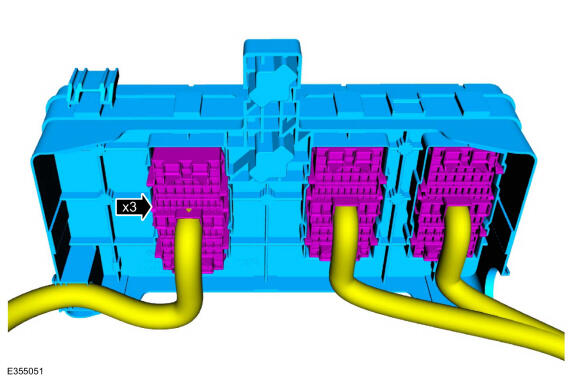

If necessary, remove the electrical connectors from the BCMC.

Courtesy of FORD MOTOR COMPANY
