Image Processing Module A (IPMA) Camera: Installation
WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.
-
NOTE: Inspect the wire harness for proper routing, especially near the IPMA camera. Make sure the harness is not chafed or pinched.

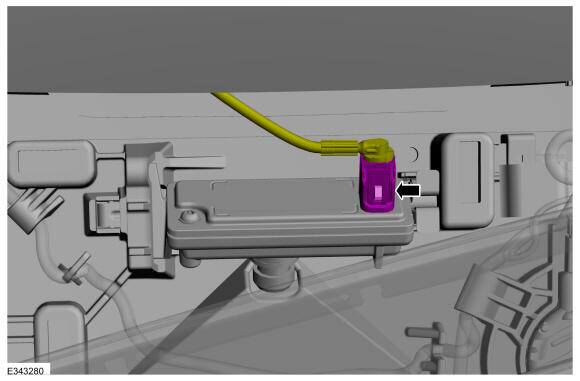

Connect the IPMA camera electrical connector.
- If a new IPMA camera has been installed, carry out the camera alignment using a scan tool.
