Image Processing Module A (IPMA) Camera: Removal

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The rear view mirror front cover has a tether clip that does not allow the cover to fully be removed.

NOTE: Components Removed for Clarity.

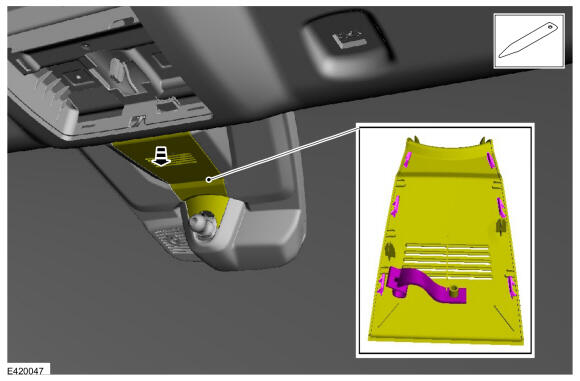

Release the tabs and position the rear view mirror front cover downward.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

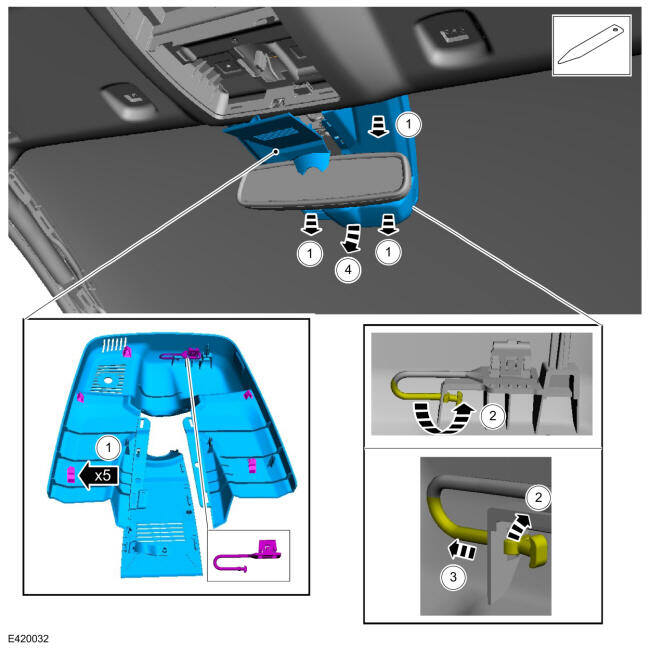

Remove the interior rear view mirror cover assembly.
1. Release the interior rear view rear cover tabs and the clip from the tether clip.Use the General Equipment: Interior Trim Remover
2. Rotate the tether clip line to align the end with the opening in the interior rear view mirror rear cover.
3. Slide the tether clip end out of the interior rear view mirror rear cover.
4. Rotate the interior rear view mirror cover assembly around the interior rear view mirror.
Courtesy of FORD MOTOR COMPANY
Disconnect the IPMA camera electrical connector.

Courtesy of FORD MOTOR COMPANY

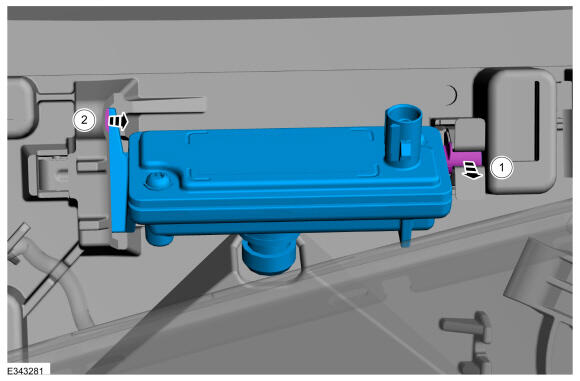

1. Release the tab.
2. Release the tab and remove the IPMA camera.

Courtesy of FORD MOTOR COMPANY
