Image Processing Module A (IPMA): Removal

WARNING: This page is about a different car, the 2024 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .
Remove the BCM. Refer to: Body Control Module (BCM) .

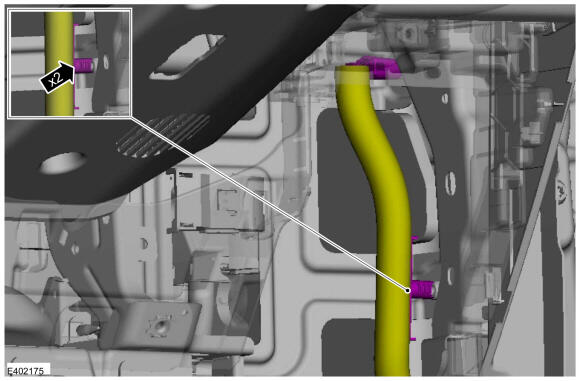

Remove the retainers and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY

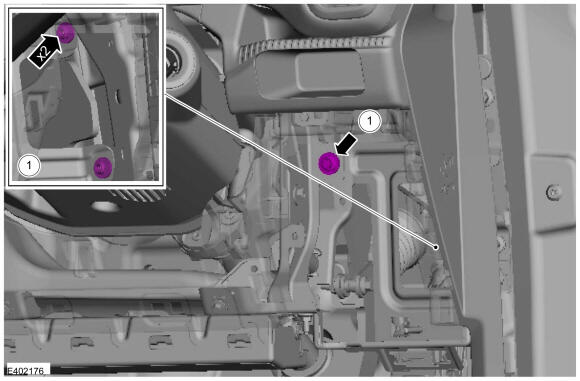

Remove the bolt and the nuts.
Torque: 7 Nm

Courtesy of FORD MOTOR COMPANY

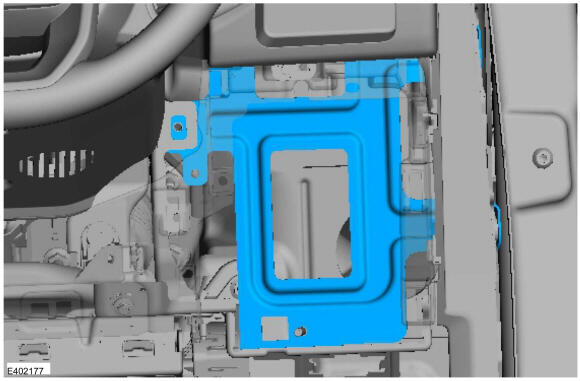

Remove the BCM bracket.

Courtesy of FORD MOTOR COMPANY

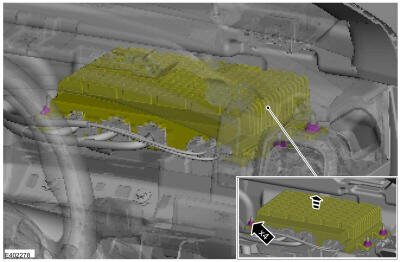

Remove the nuts and lift the IPMA in upward direction.
Torque: 6 Nm

Courtesy of FORD MOTOR COMPANY

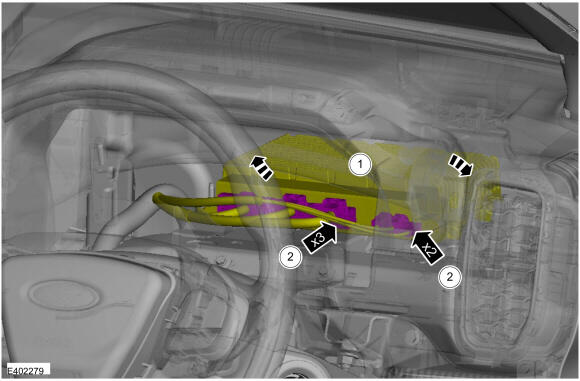

1. Move the IPMA RH and LH side direction to allow access to the electrical connectors (largest part of opening between IP and air vent ducting).
2. Disconnect the IPMA electrical connectors.
Courtesy of FORD MOTOR COMPANY

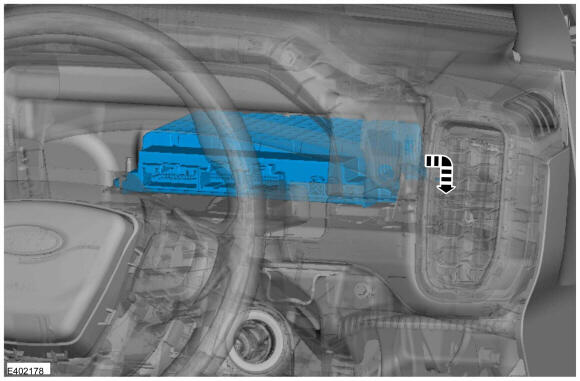

Remove the IPMA by rotating it vertically down through the vacant area where the BCM is positioned.

Courtesy of FORD MOTOR COMPANY
