Connector Repair Procedures

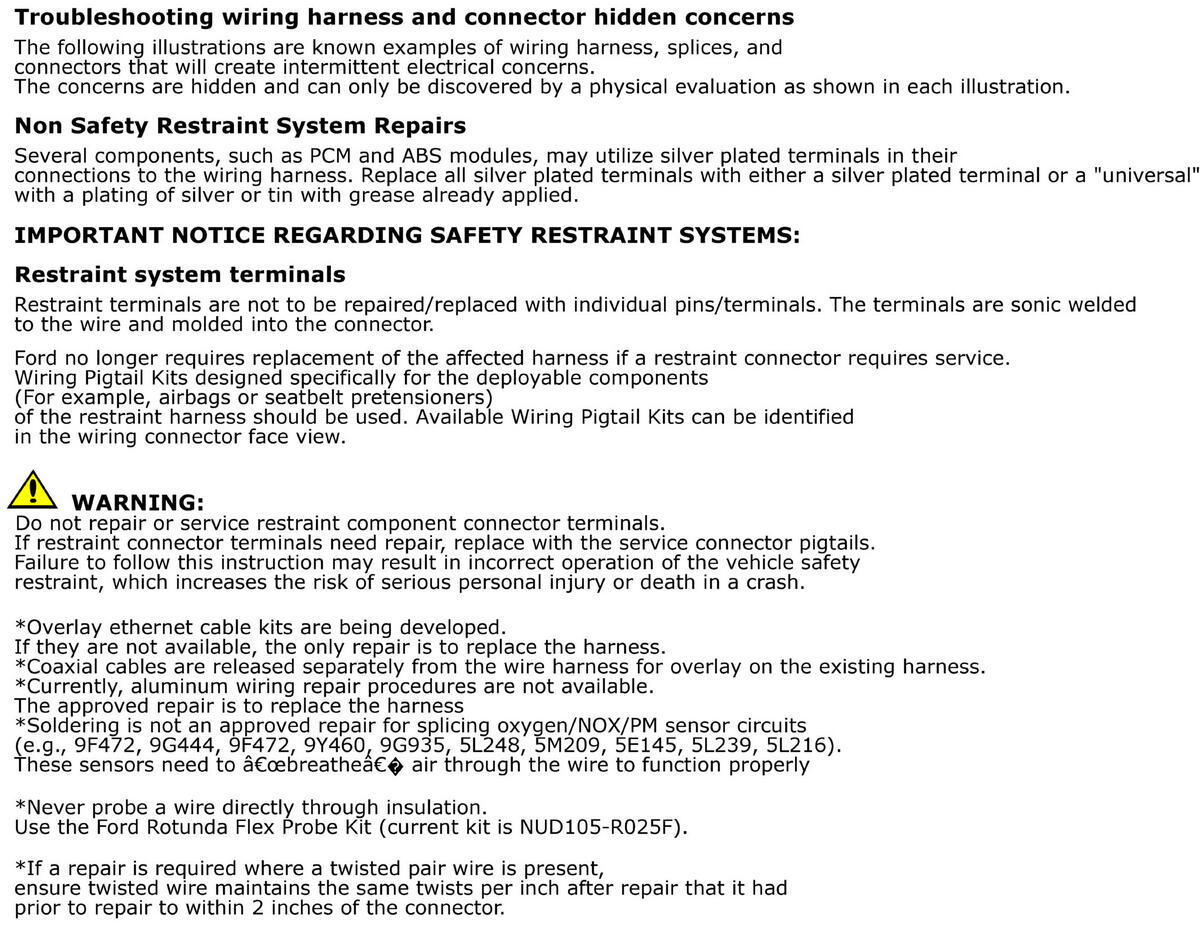

GFDWR250321Courtesy of FORD MOTOR COMPANY

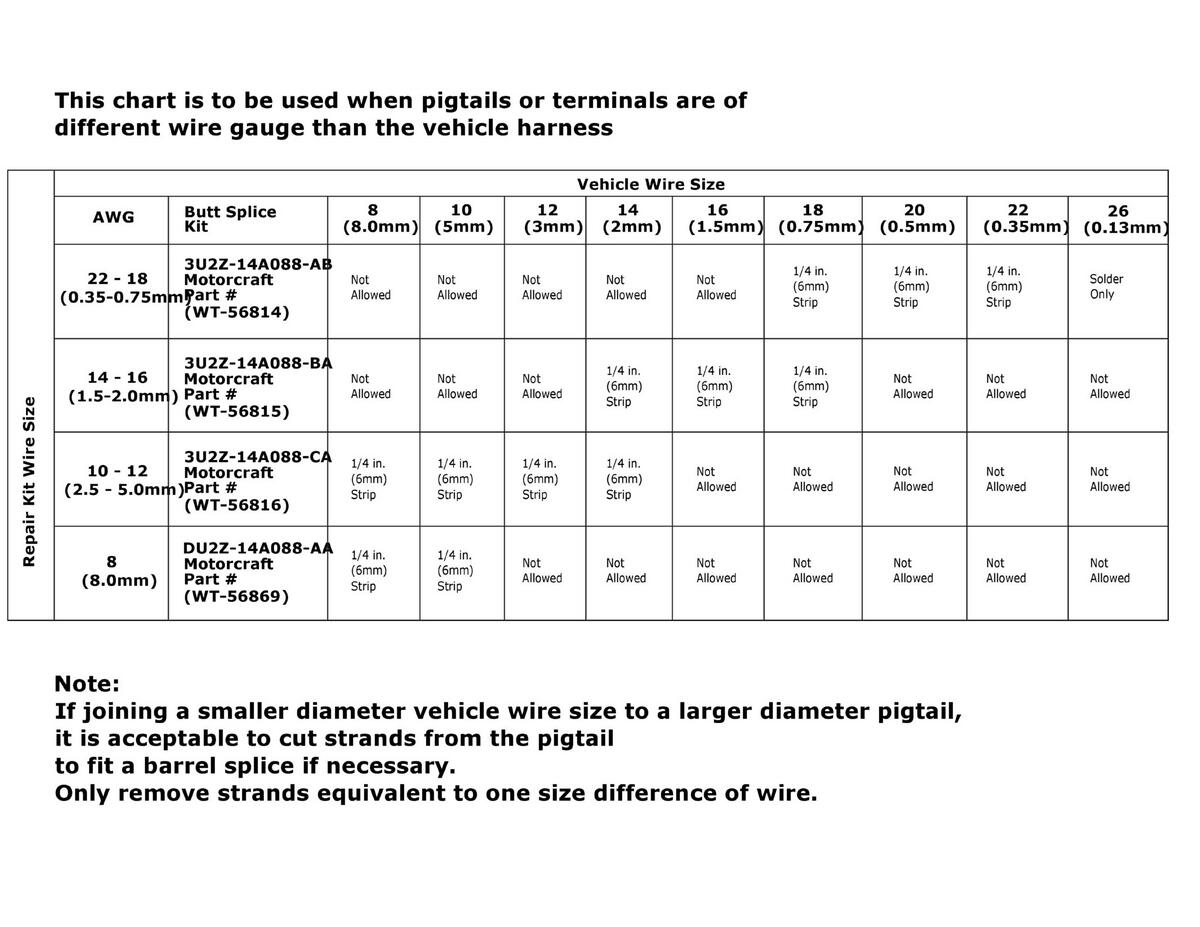

GFDWR250322Courtesy of FORD MOTOR COMPANY

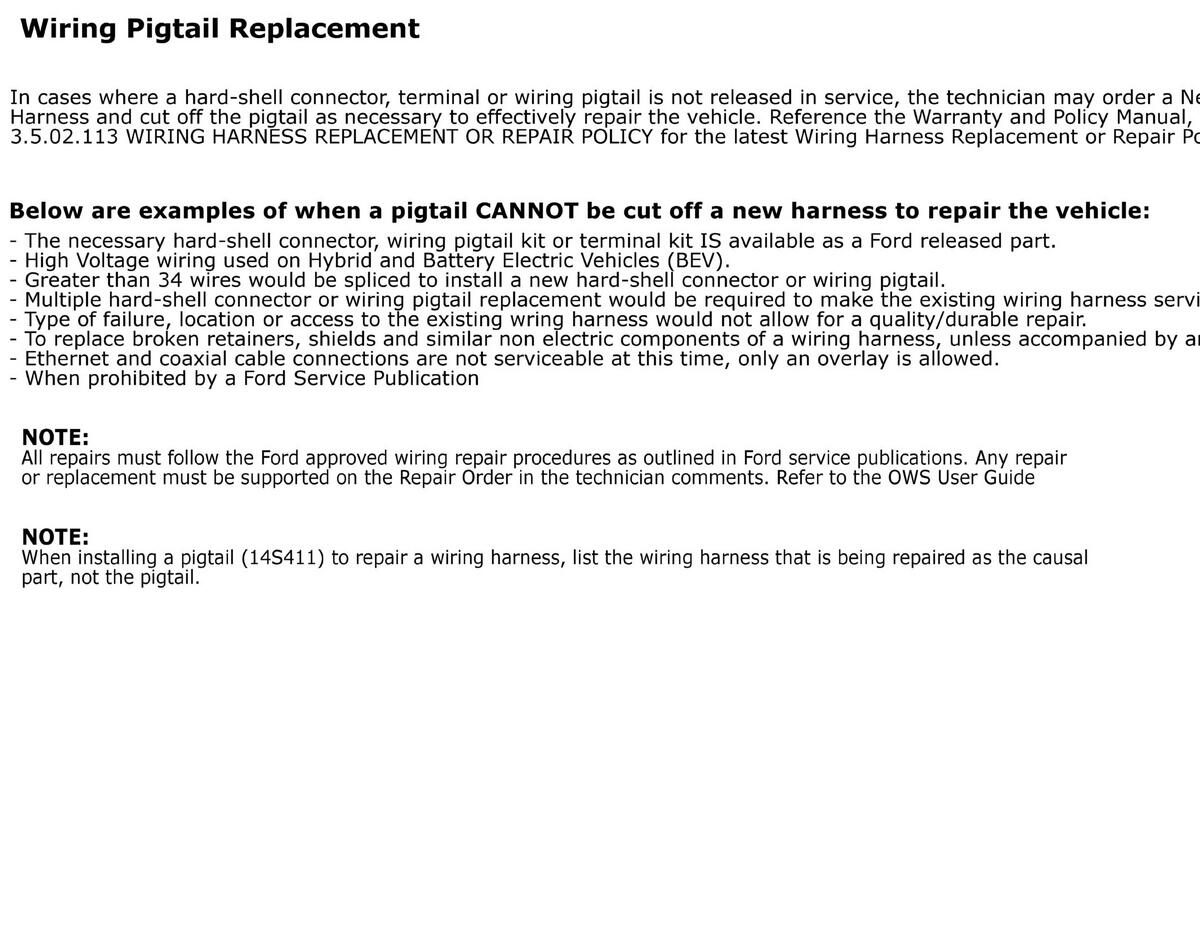

GFDWR250323Courtesy of FORD MOTOR COMPANY

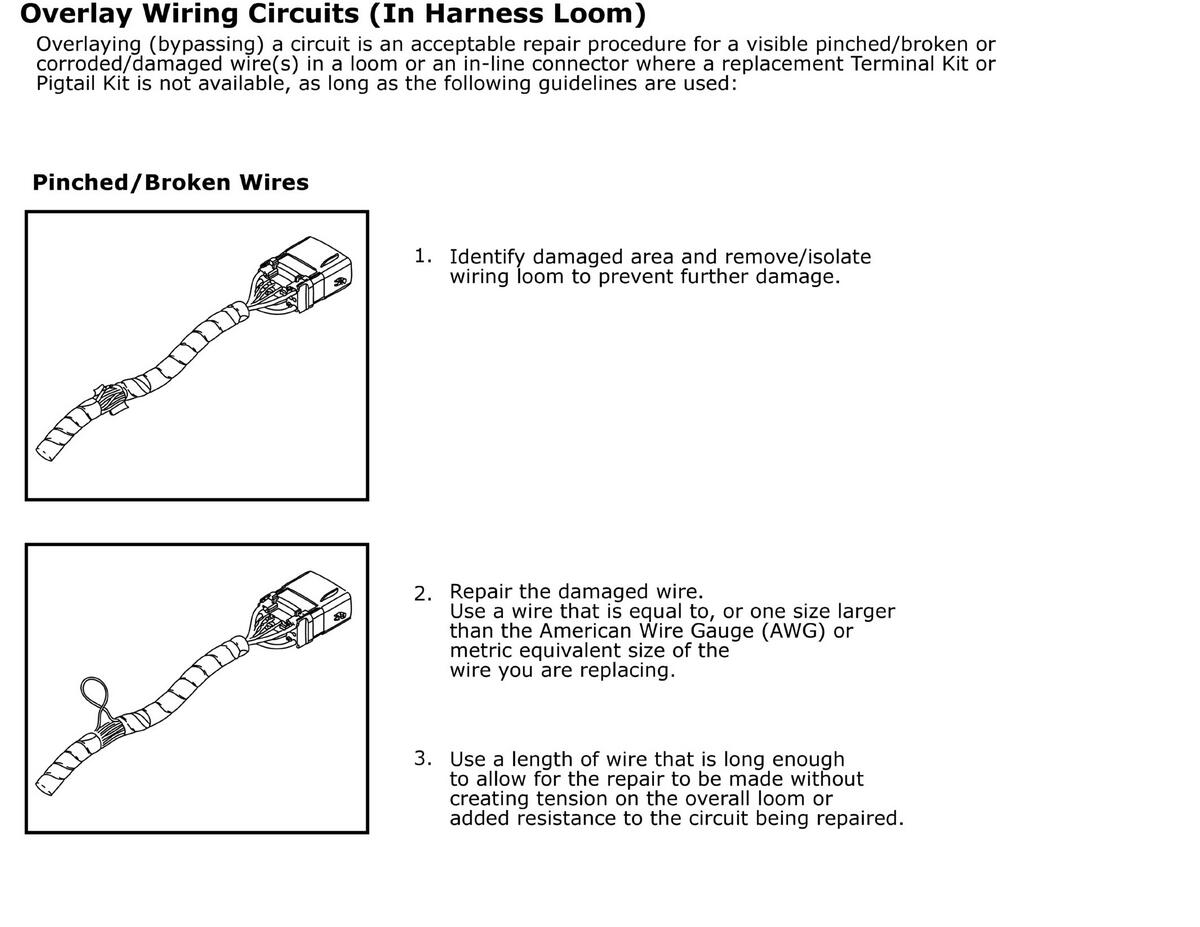

GFDWR250324Courtesy of FORD MOTOR COMPANY

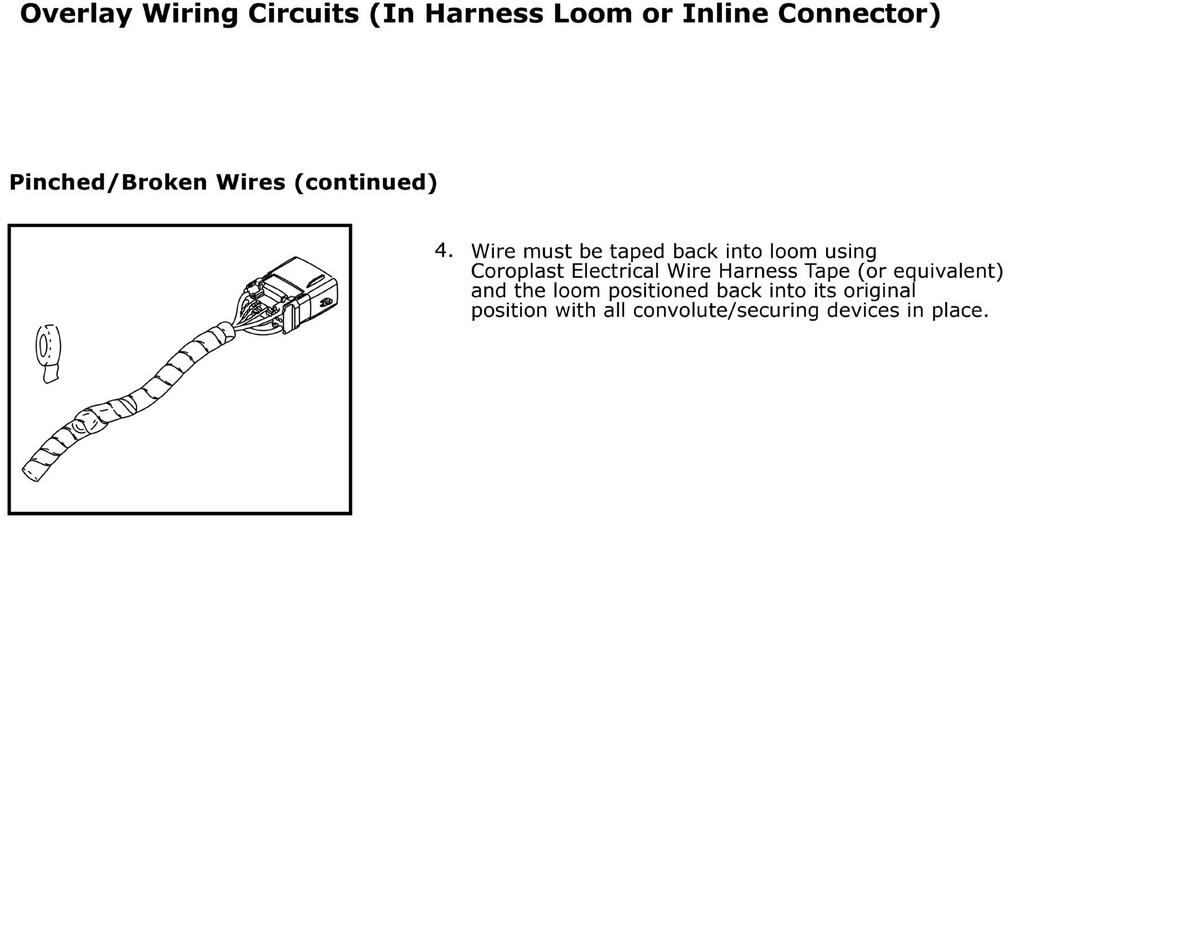

GFDWR250325Courtesy of FORD MOTOR COMPANY

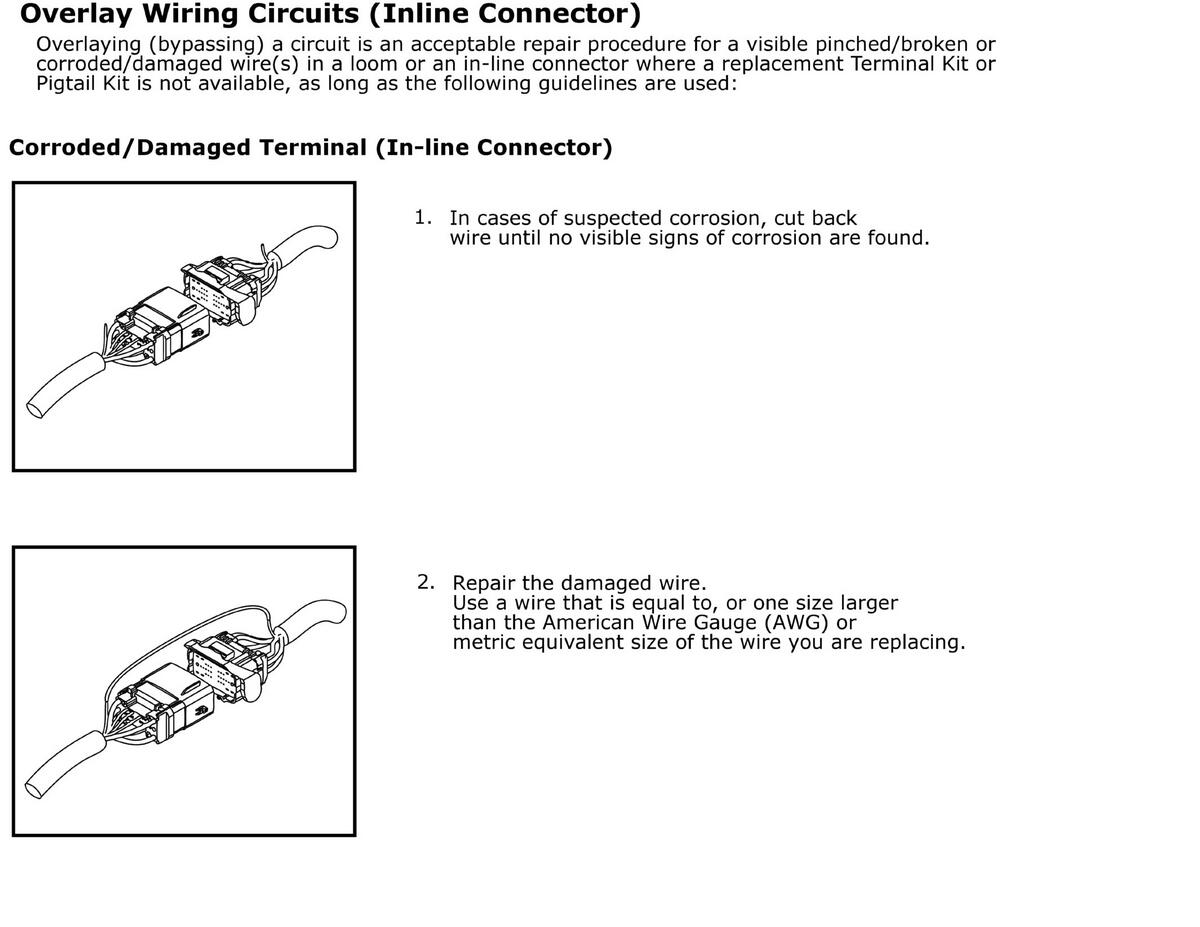

GFDWR250326Courtesy of FORD MOTOR COMPANY

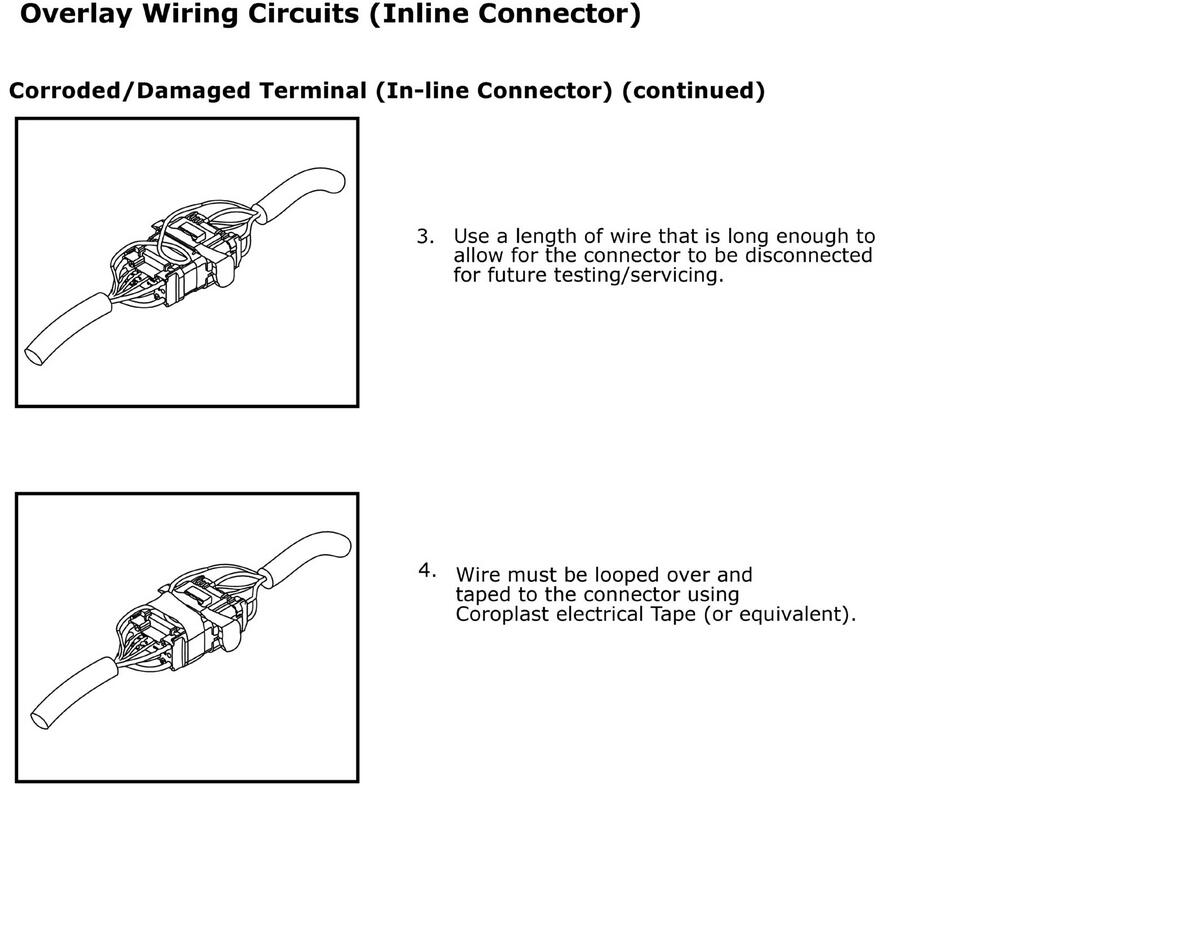

GFDWR250327Courtesy of FORD MOTOR COMPANY

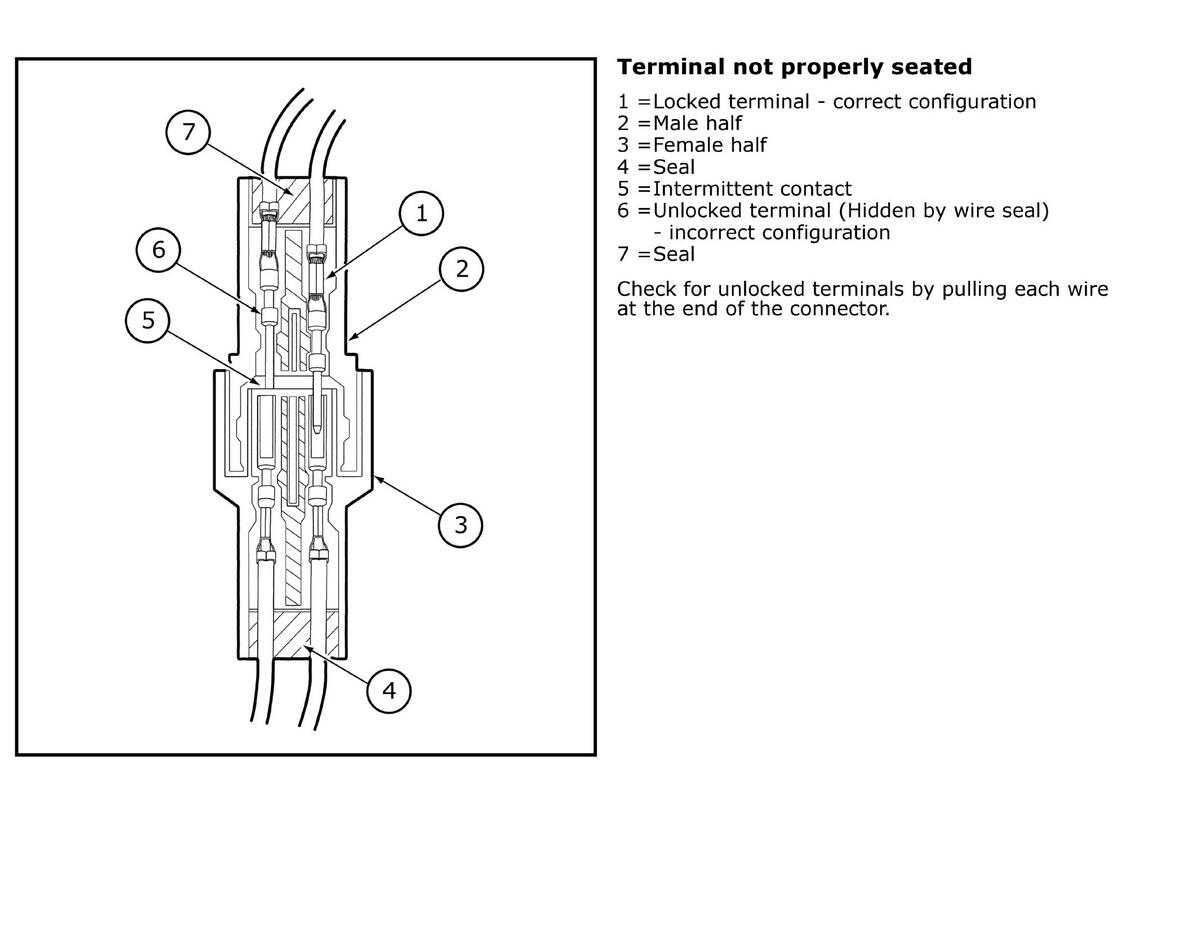

GFDWR250328Courtesy of FORD MOTOR COMPANY

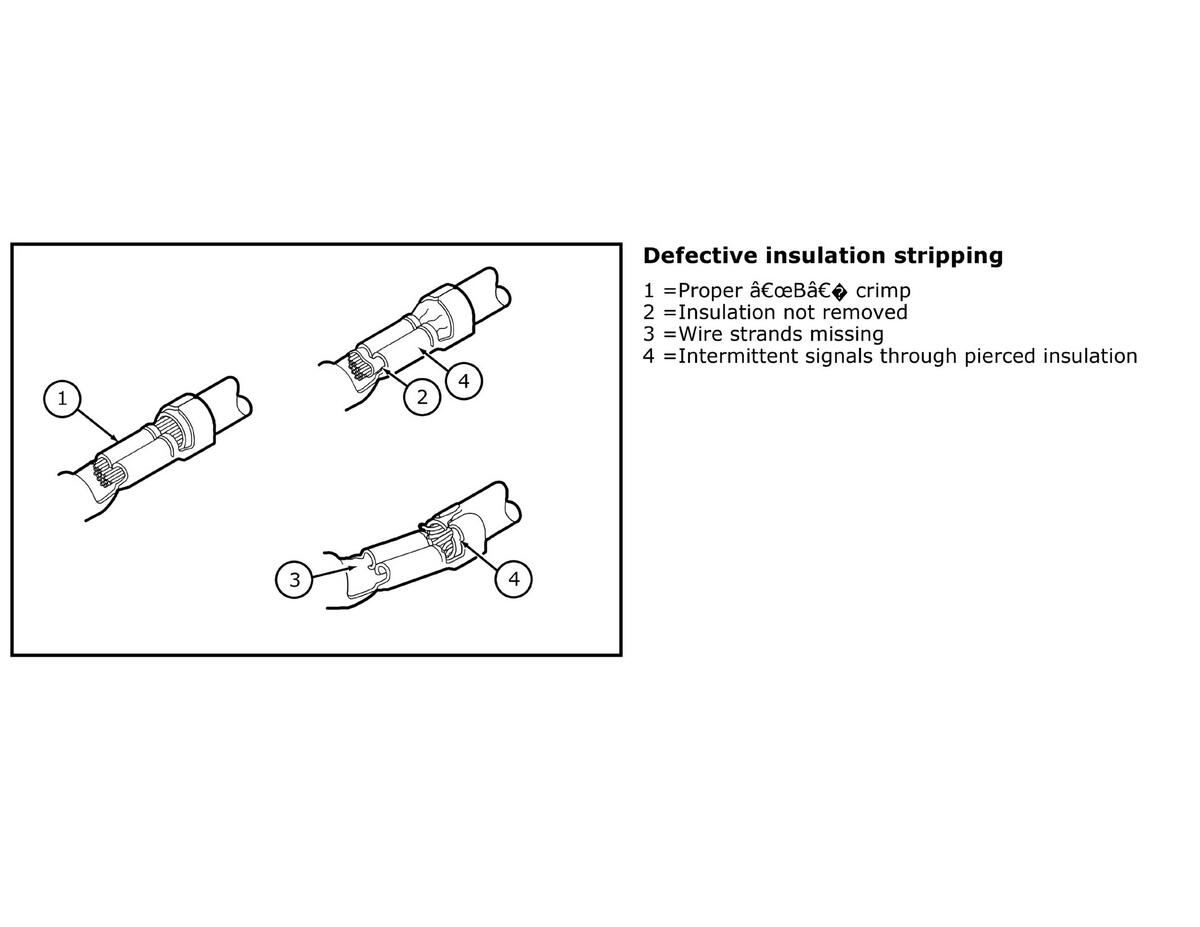

GFDWR250329Courtesy of FORD MOTOR COMPANY

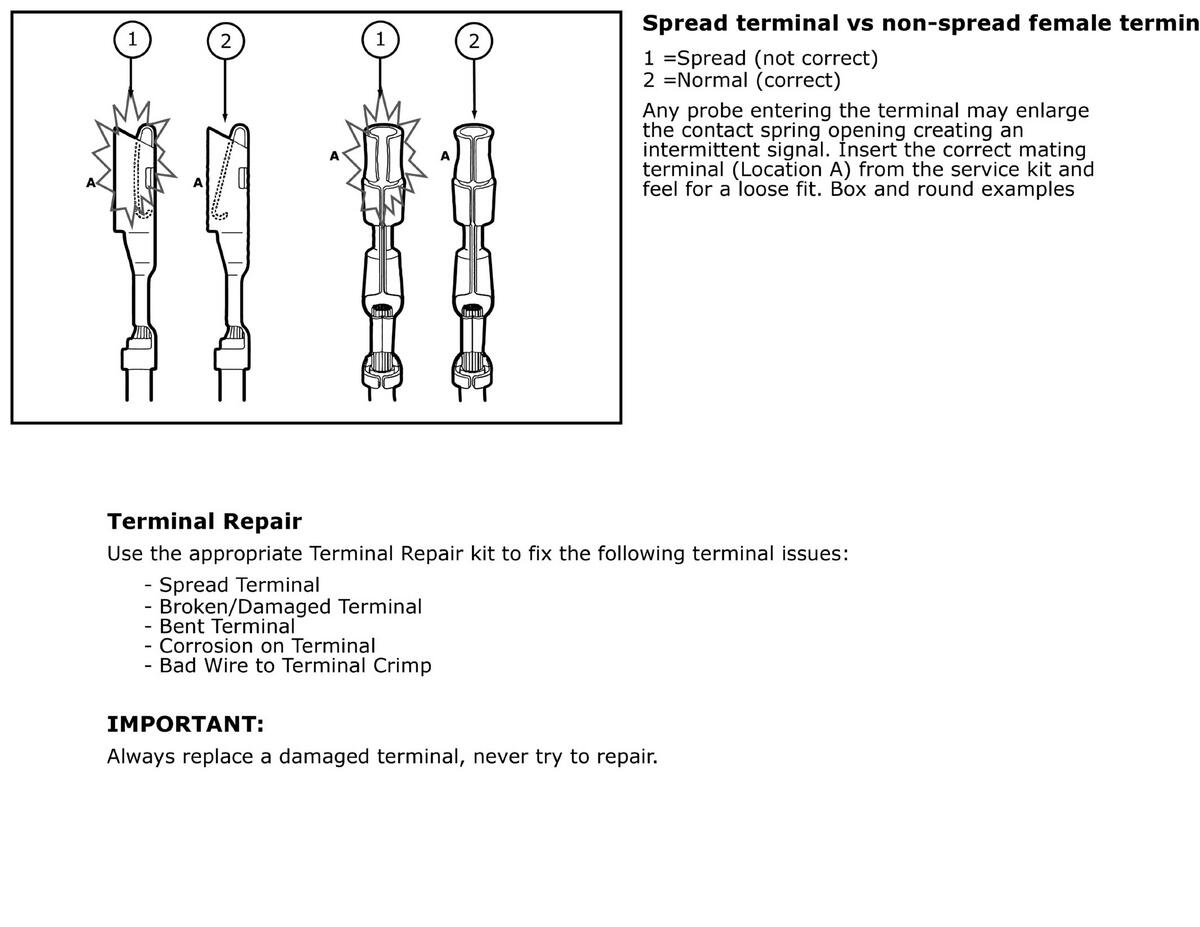

GFDWR250330Courtesy of FORD MOTOR COMPANY

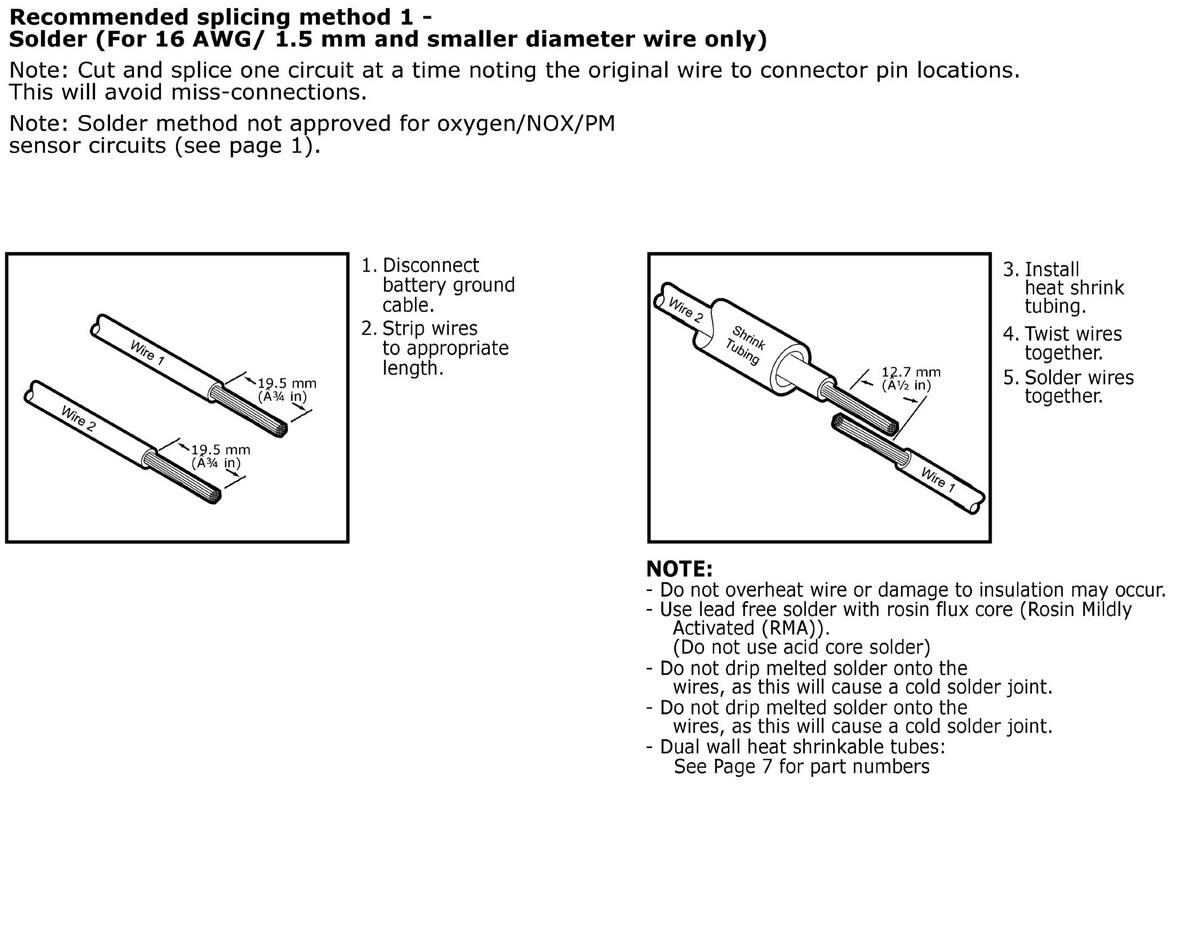

GFDWR250331Courtesy of FORD MOTOR COMPANY

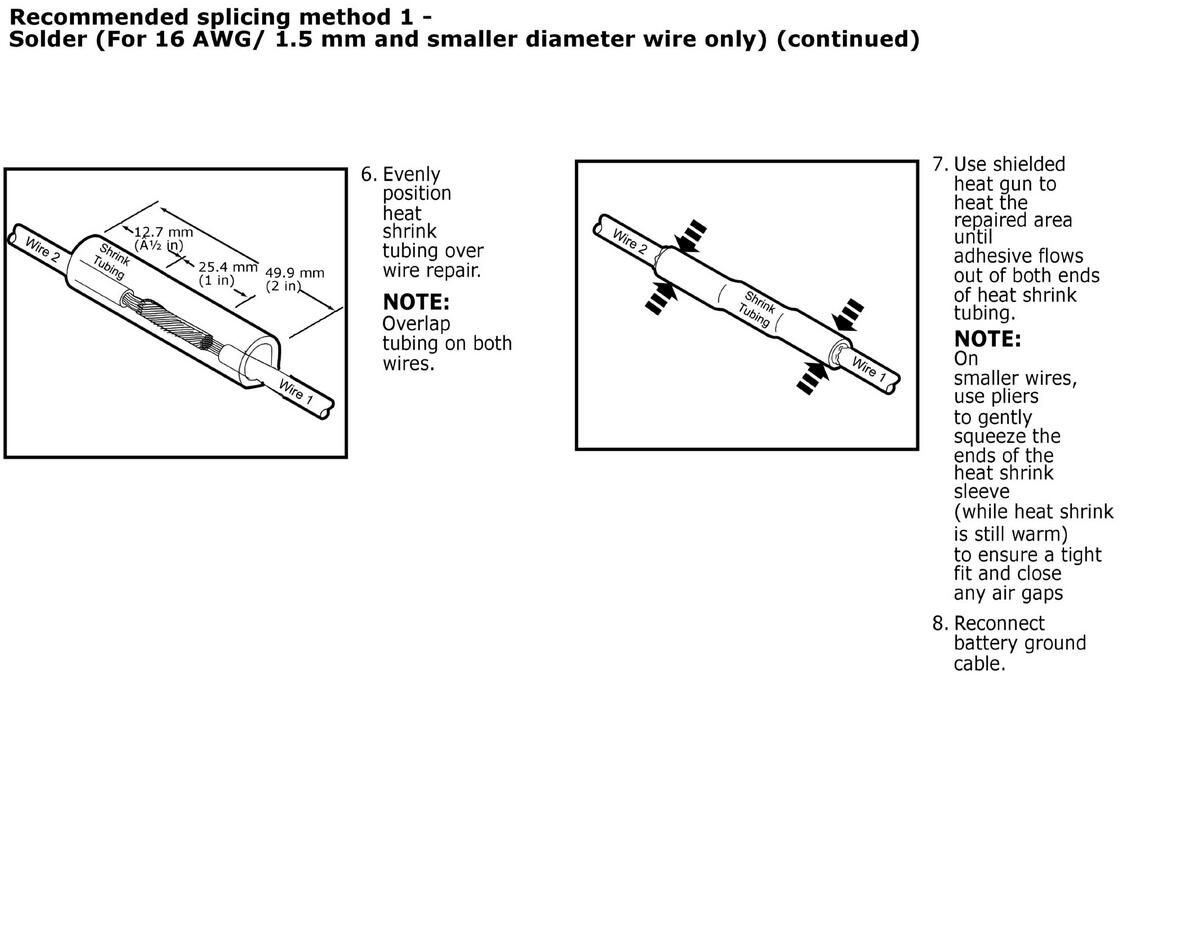

GFDWR250332Courtesy of FORD MOTOR COMPANY

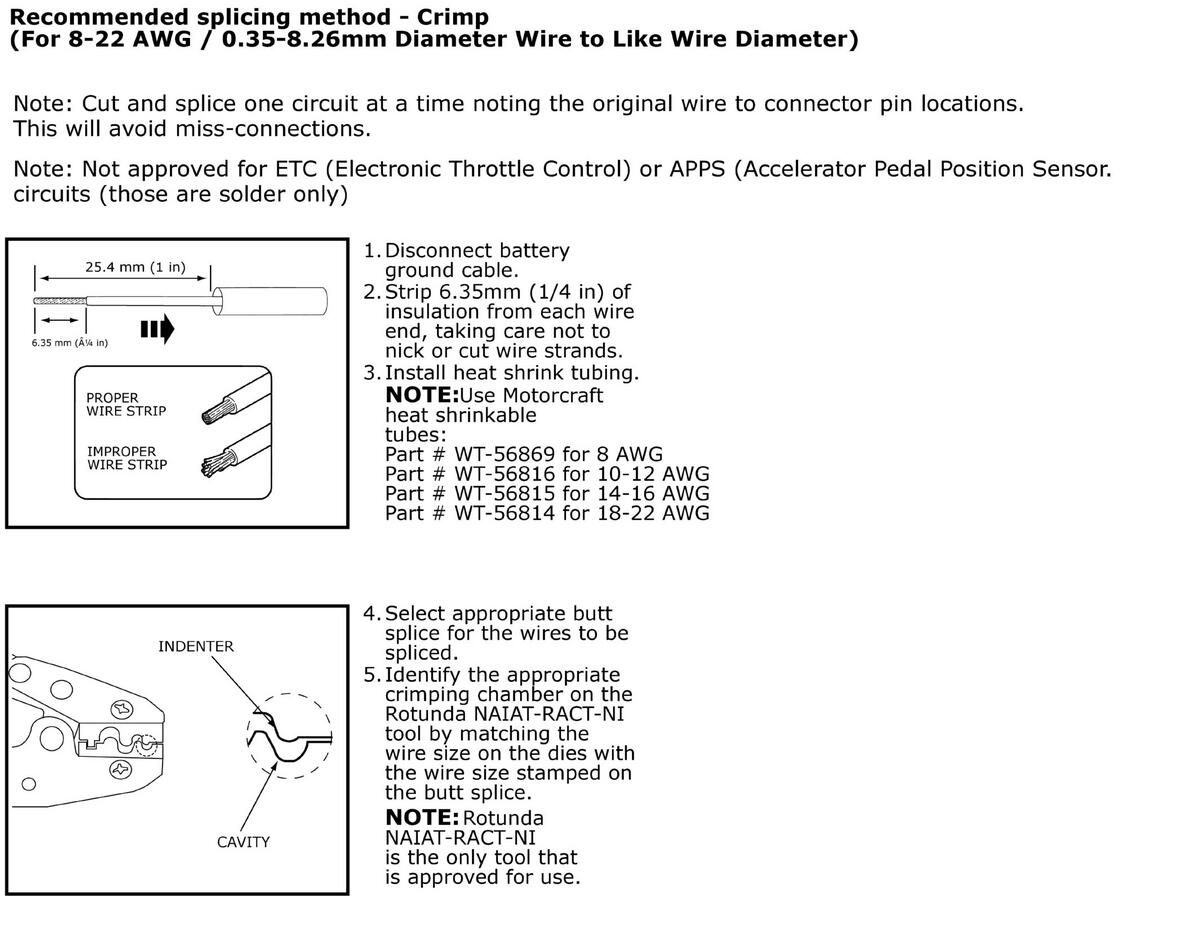

GFDWR250333Courtesy of FORD MOTOR COMPANY

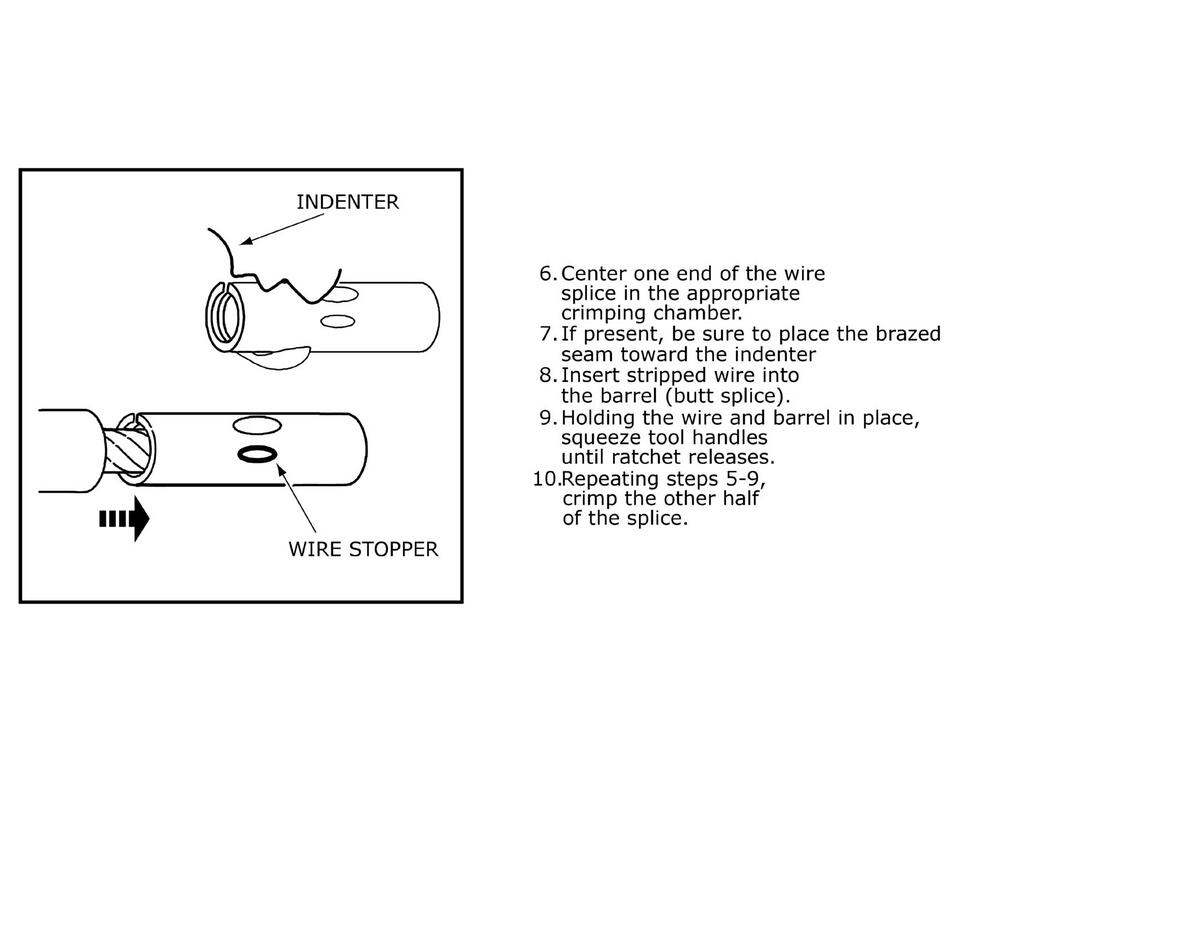

GFDWR250334Courtesy of FORD MOTOR COMPANY

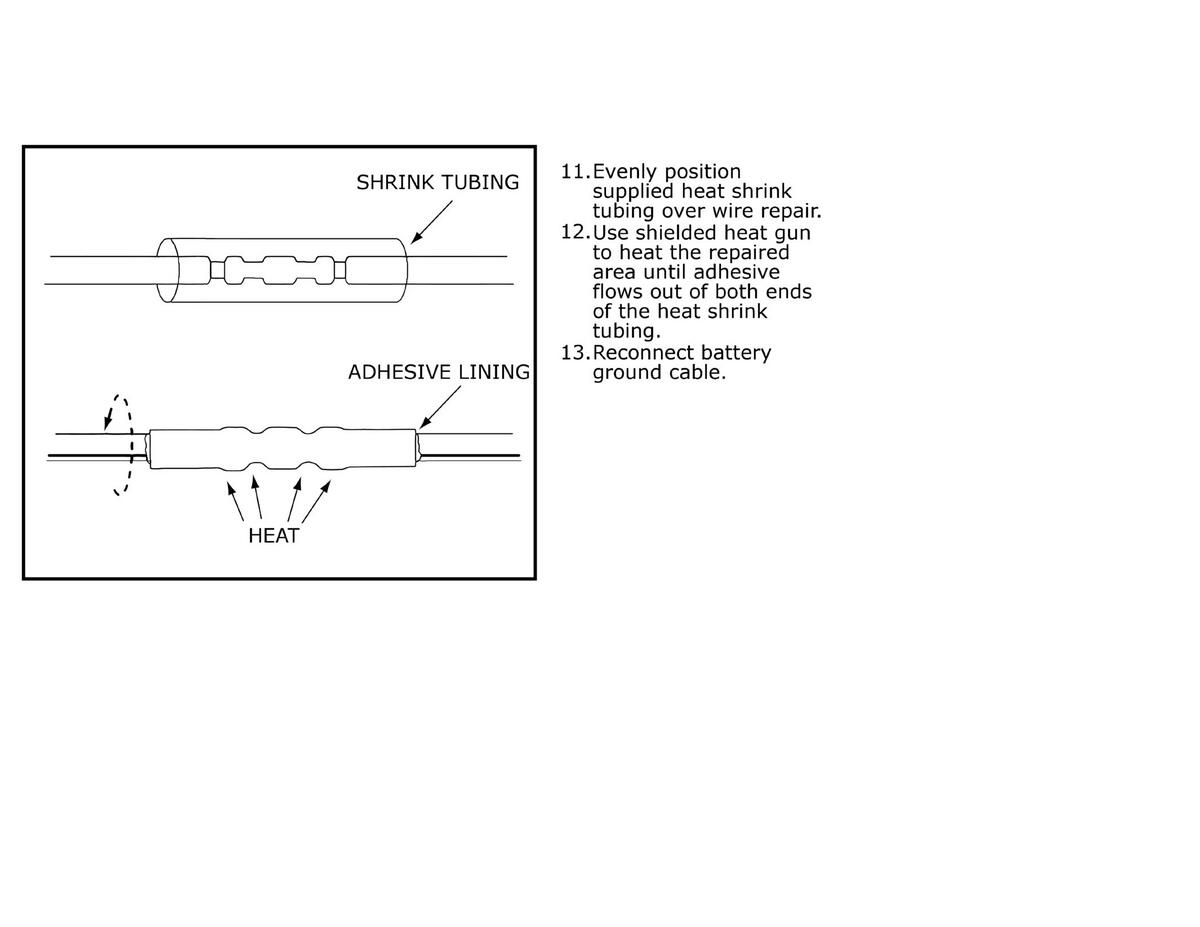

GFDWR250335Courtesy of FORD MOTOR COMPANY
