Steering Column: Installation

To install, reverse the removal procedure.

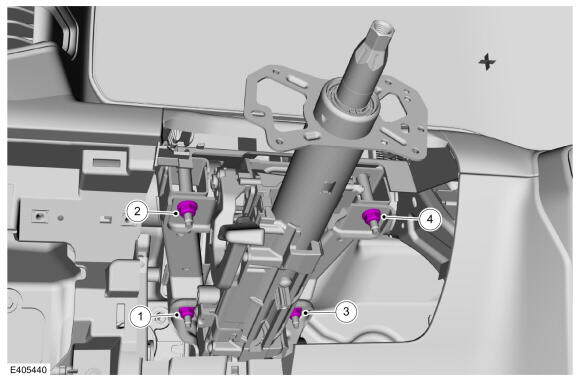

Torque the steering column retainers following the sequence shown.
Torque: 25 Nm

Fig 1: Steering Column Retainers - Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

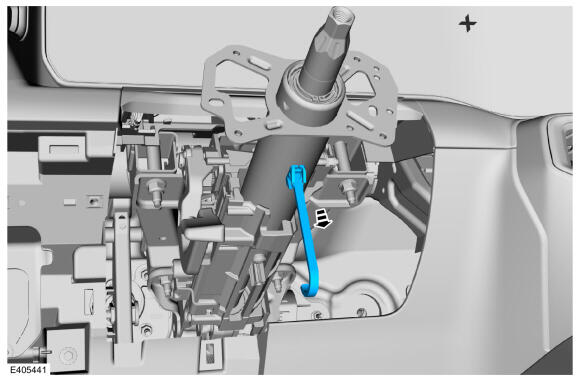

With the steering system fully assembled, remove the anti-rotation pin.

Courtesy of FORD MOTOR COMPANY
Repower the SRS Refer to: Supplemental Restraint System (SRS) Repowering .
