Pedestrian Alert Control Module (PACM): Removal

1. Remove the LH side loadspace trim panel. Refer to: Loadspace Trim Panel .

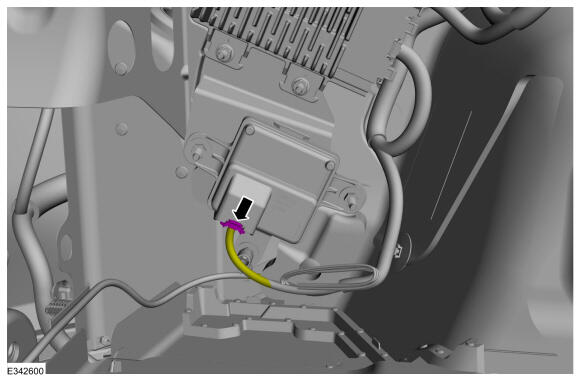

2. Disconnect the PACM electrical connector.

   Courtesy of FORD MOTOR COMPANY

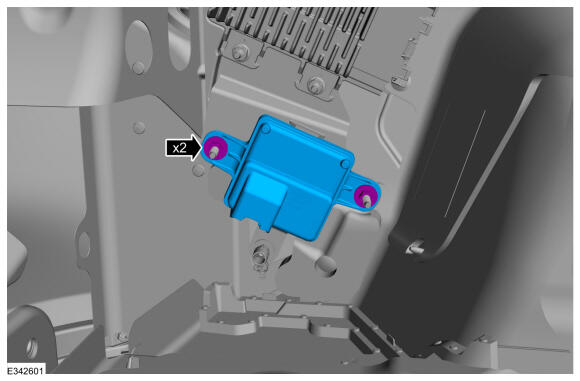

3. Remove the nuts and the PACM.

   Torque: 7 Nm

Courtesy of FORD MOTOR COMPANY
