Body Control Module (BCM): Removal
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Left hand drive (LHD) shown, right hand drive (RHD) similar.
- If installing a new BCM, connect a battery charger to the battery to make sure it is charged to maintain proper battery voltage. Refer to: Battery Charging .
-
NOTE: If the BCM (body control module) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCM (body control module) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .

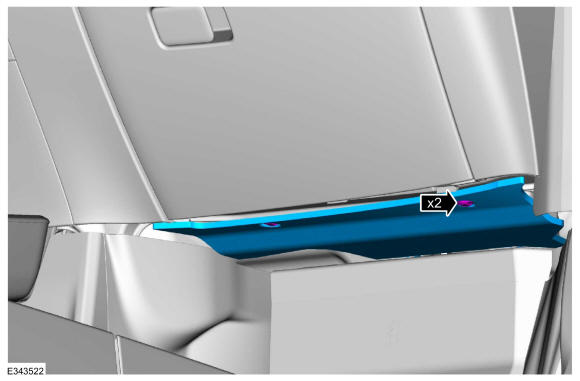

- Remove the retainers and the RH lower insulation panel.

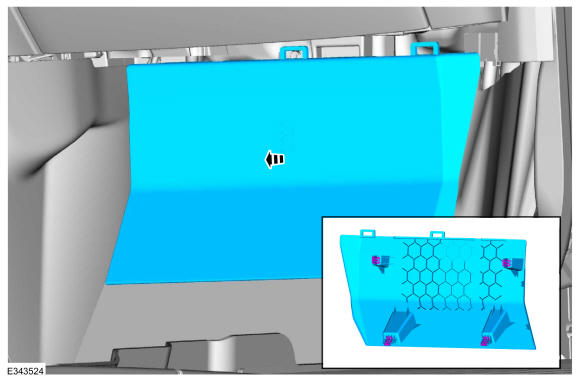

- Release the clips and remove the BCM cover.

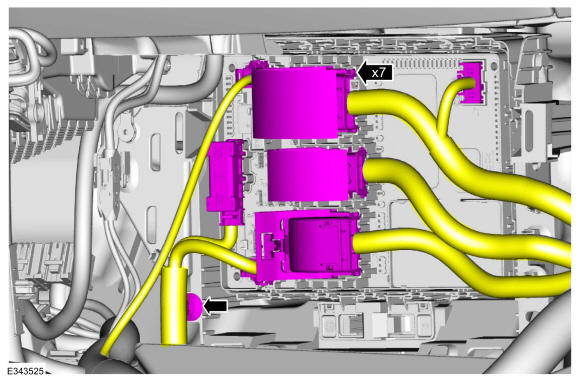

- Detach the wire harness retainer, disconnect the BCM electrical connectors.

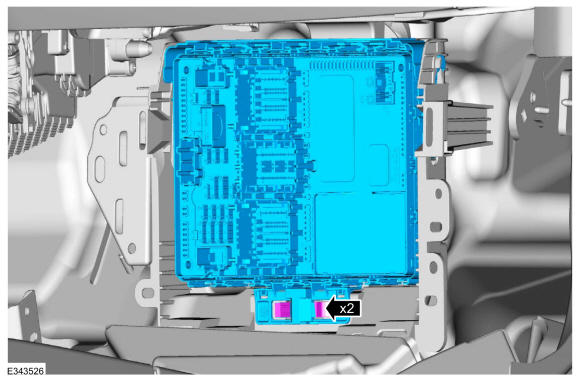

- Release the clips and remove the BCM.
