Connector Repair Procedures

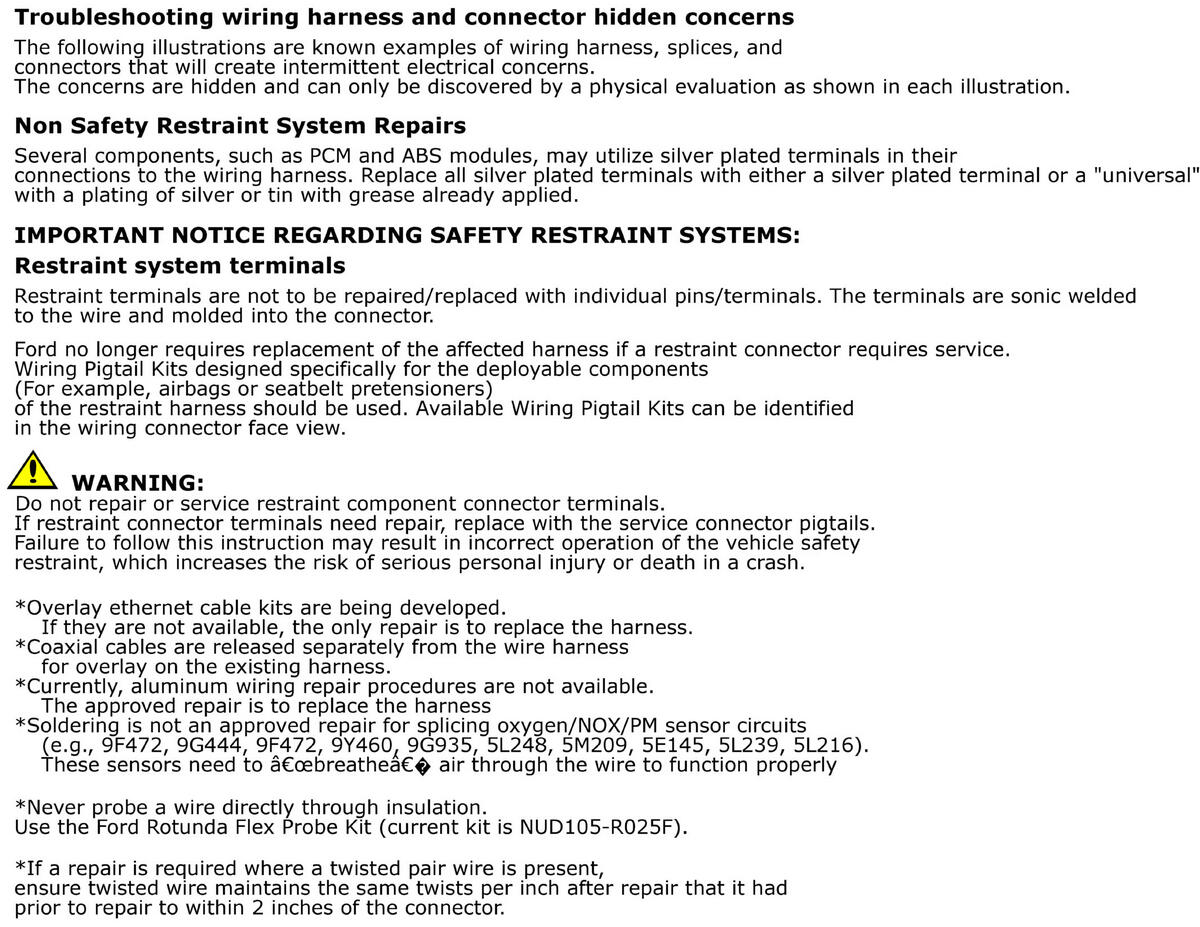

GFDWR254069Courtesy of FORD MOTOR COMPANY

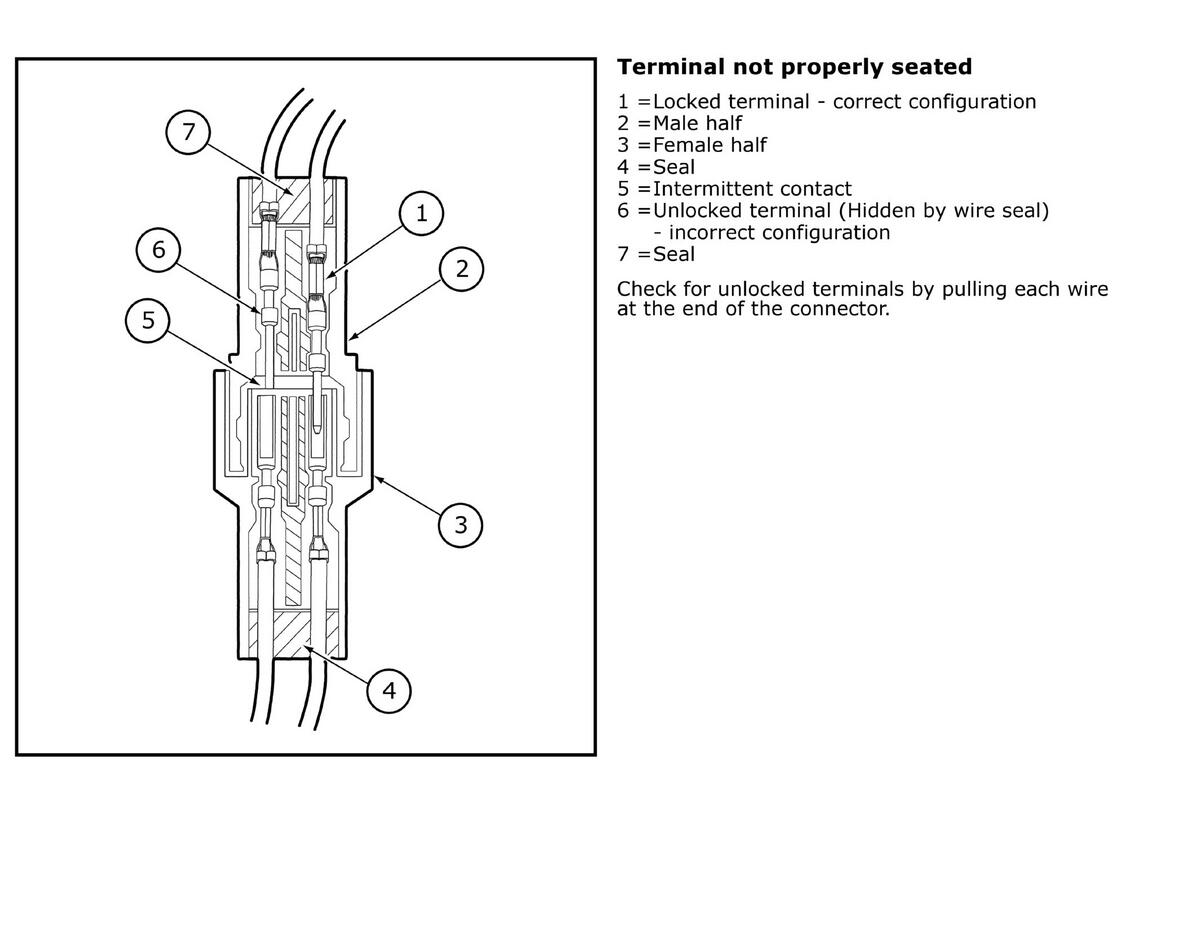

GFDWR254076Courtesy of FORD MOTOR COMPANY

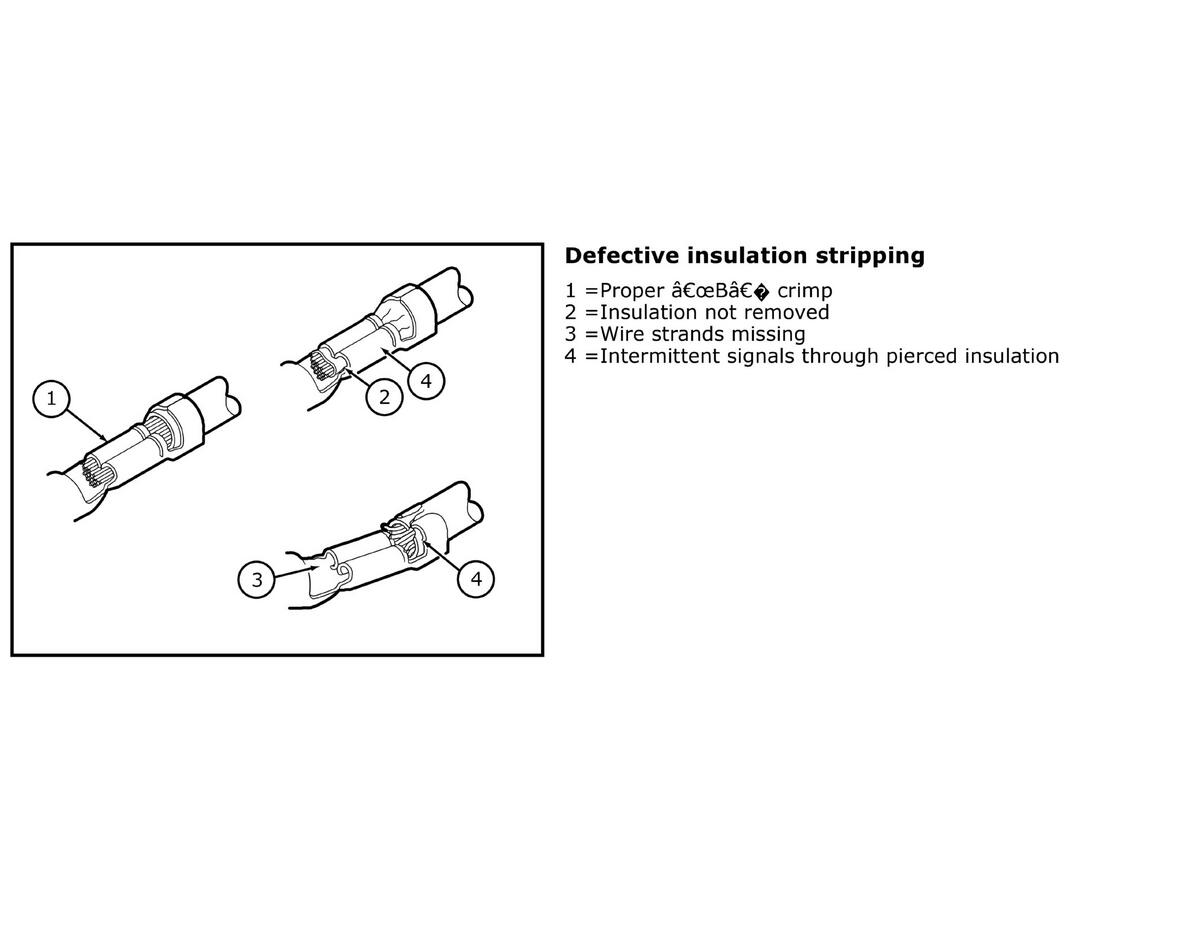

GFDWR254077Courtesy of FORD MOTOR COMPANY

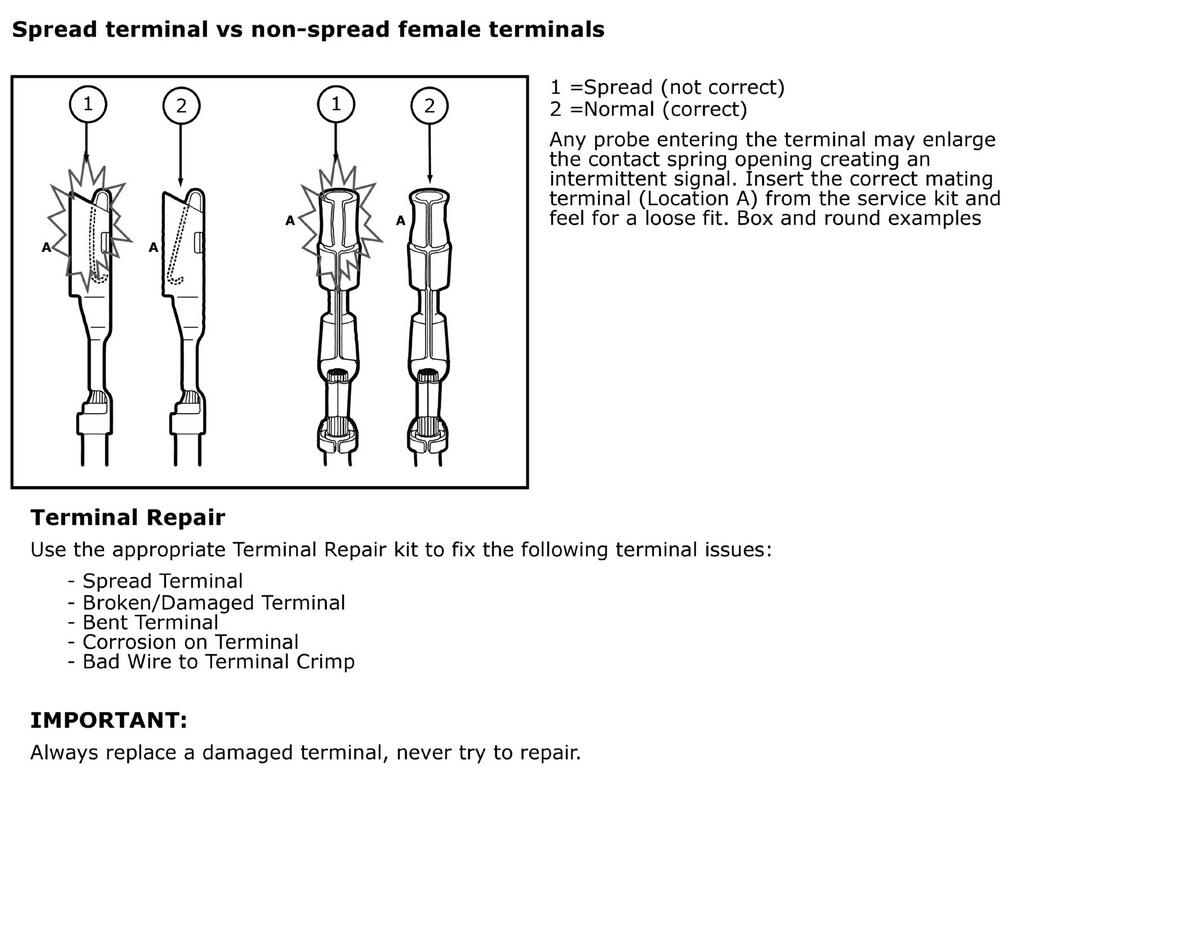

GFDWR254078Courtesy of FORD MOTOR COMPANY

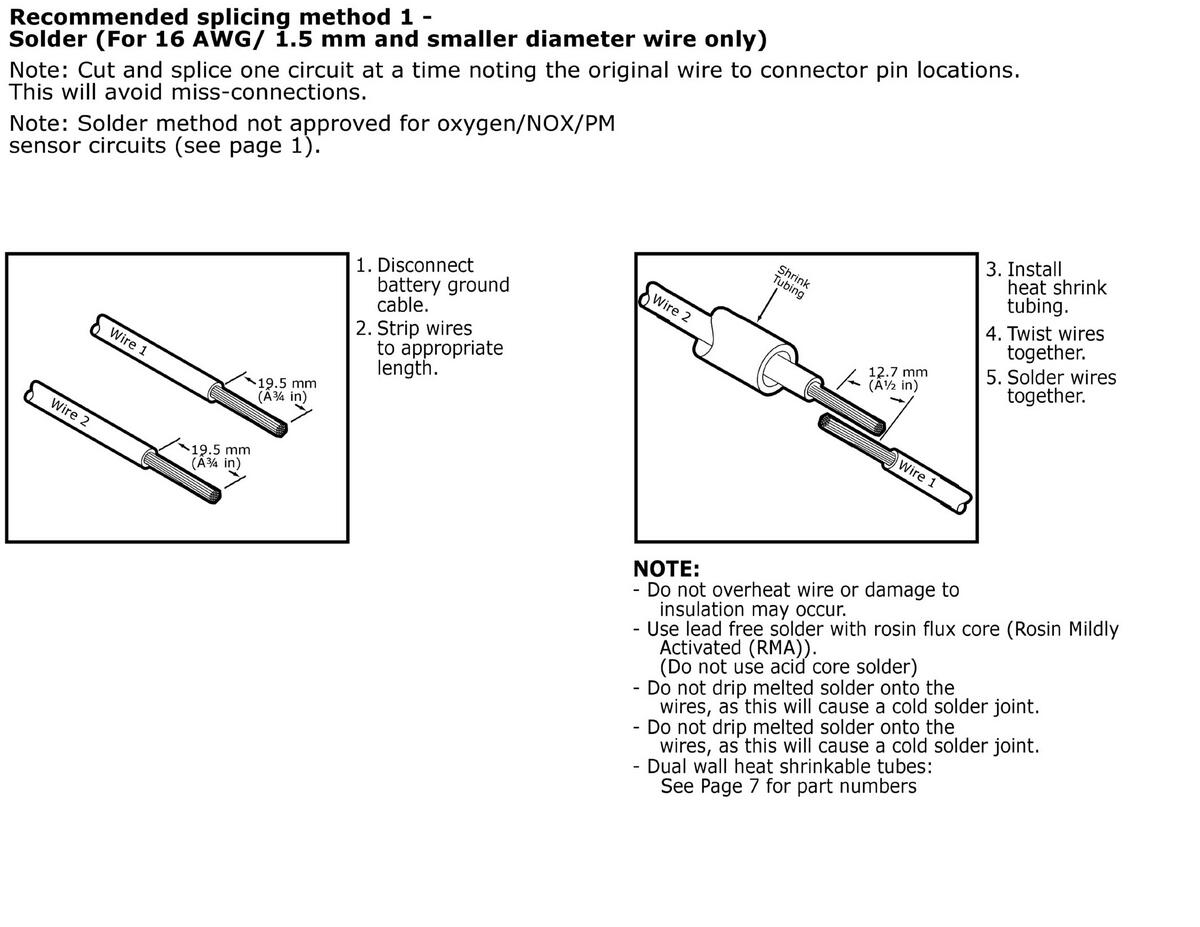

GFDWR254079Courtesy of FORD MOTOR COMPANY

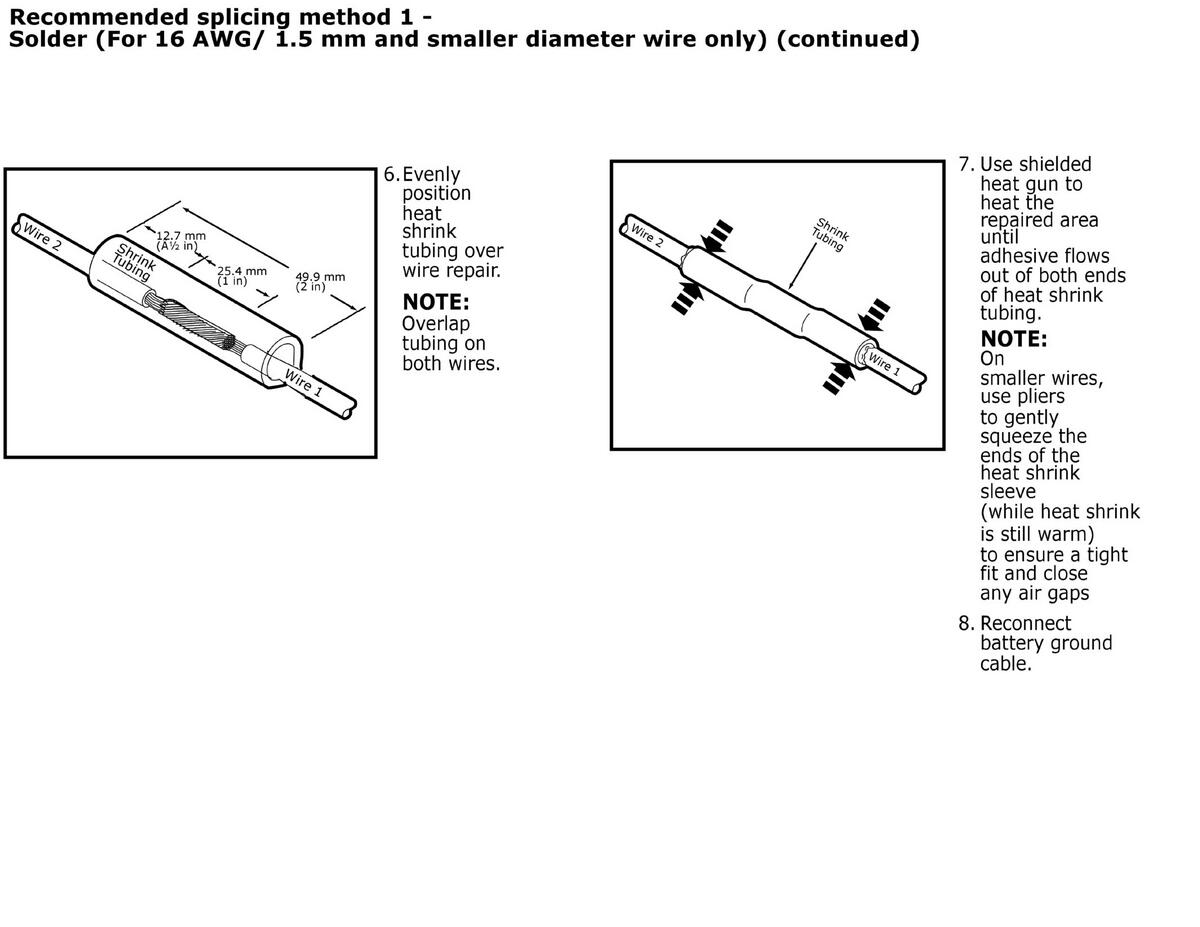

GFDWR254080Courtesy of FORD MOTOR COMPANY

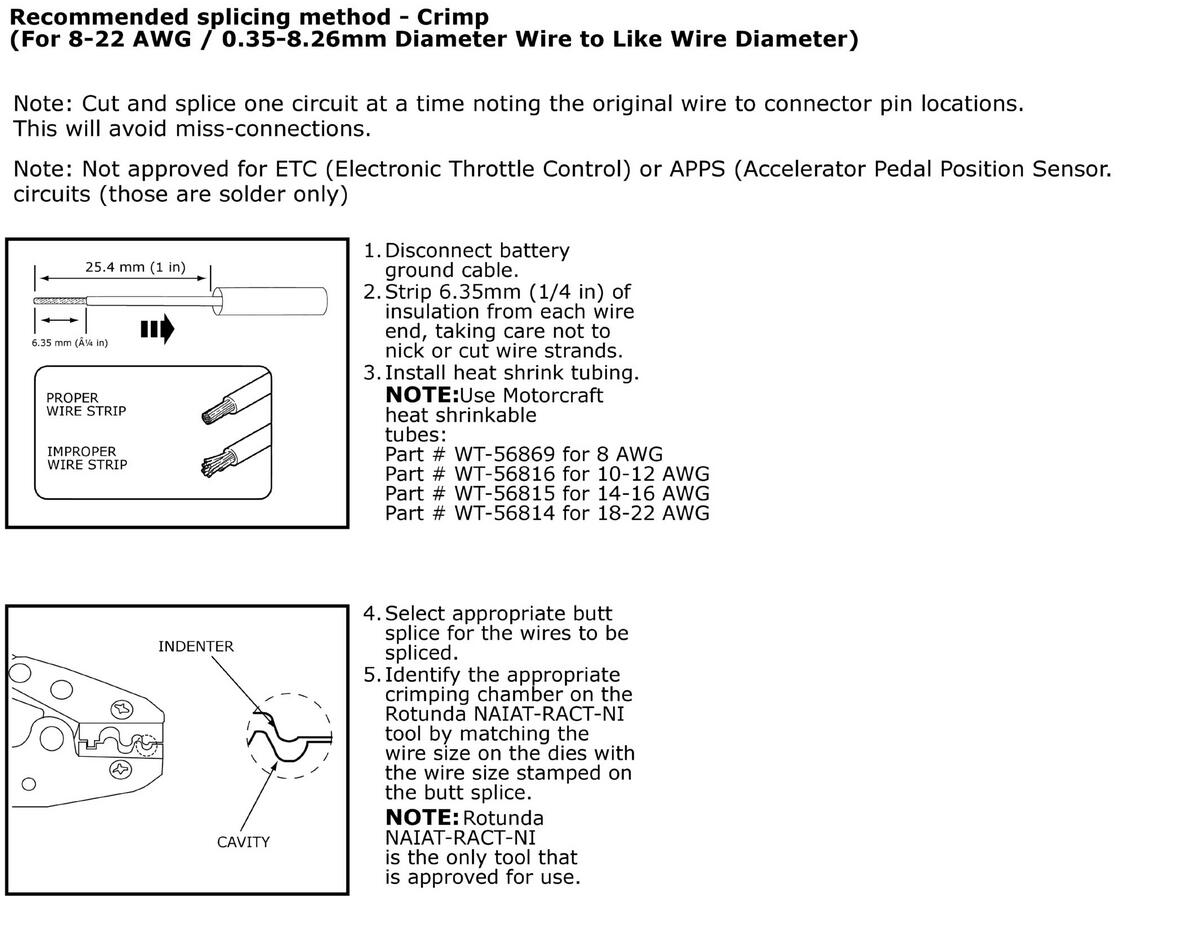

GFDWR254081Courtesy of FORD MOTOR COMPANY

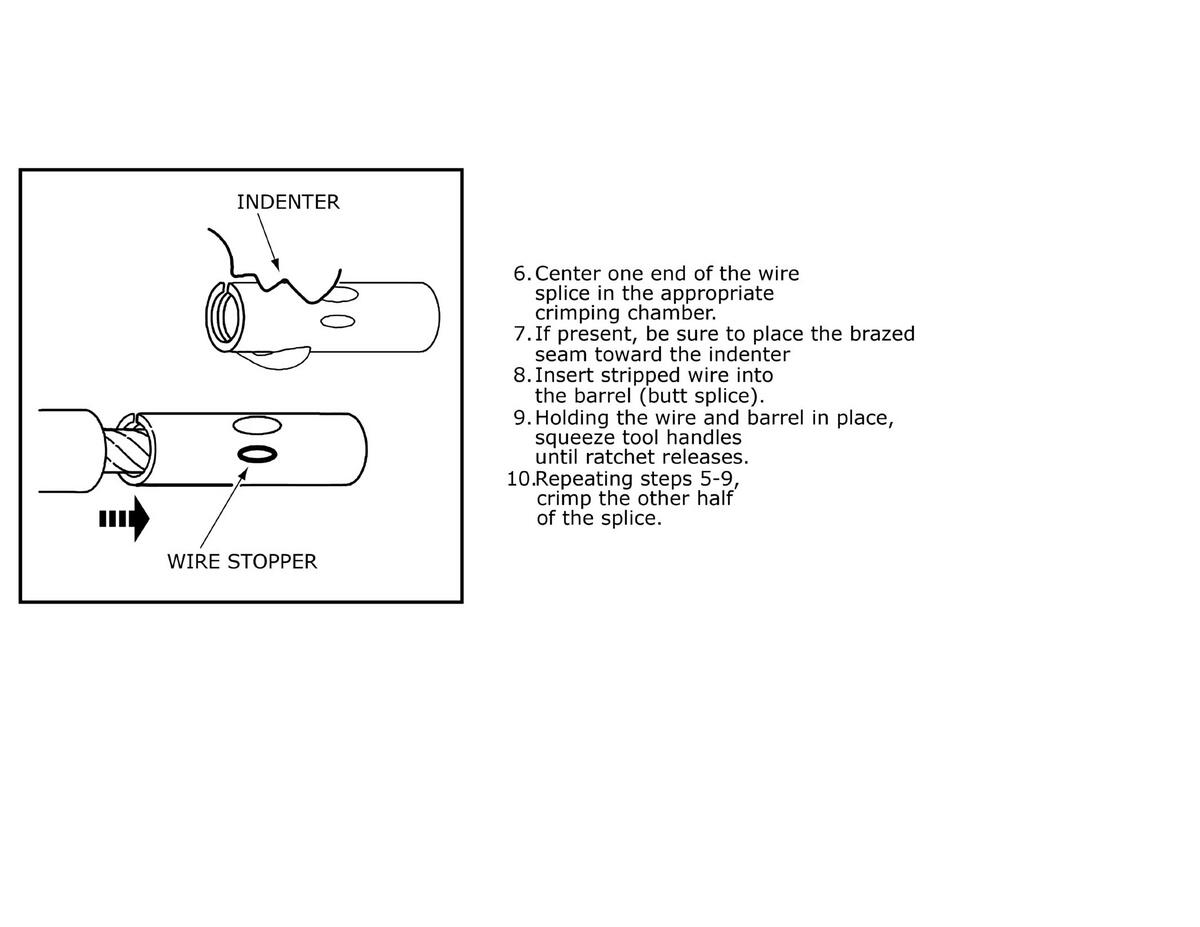

GFDWR254082Courtesy of FORD MOTOR COMPANY

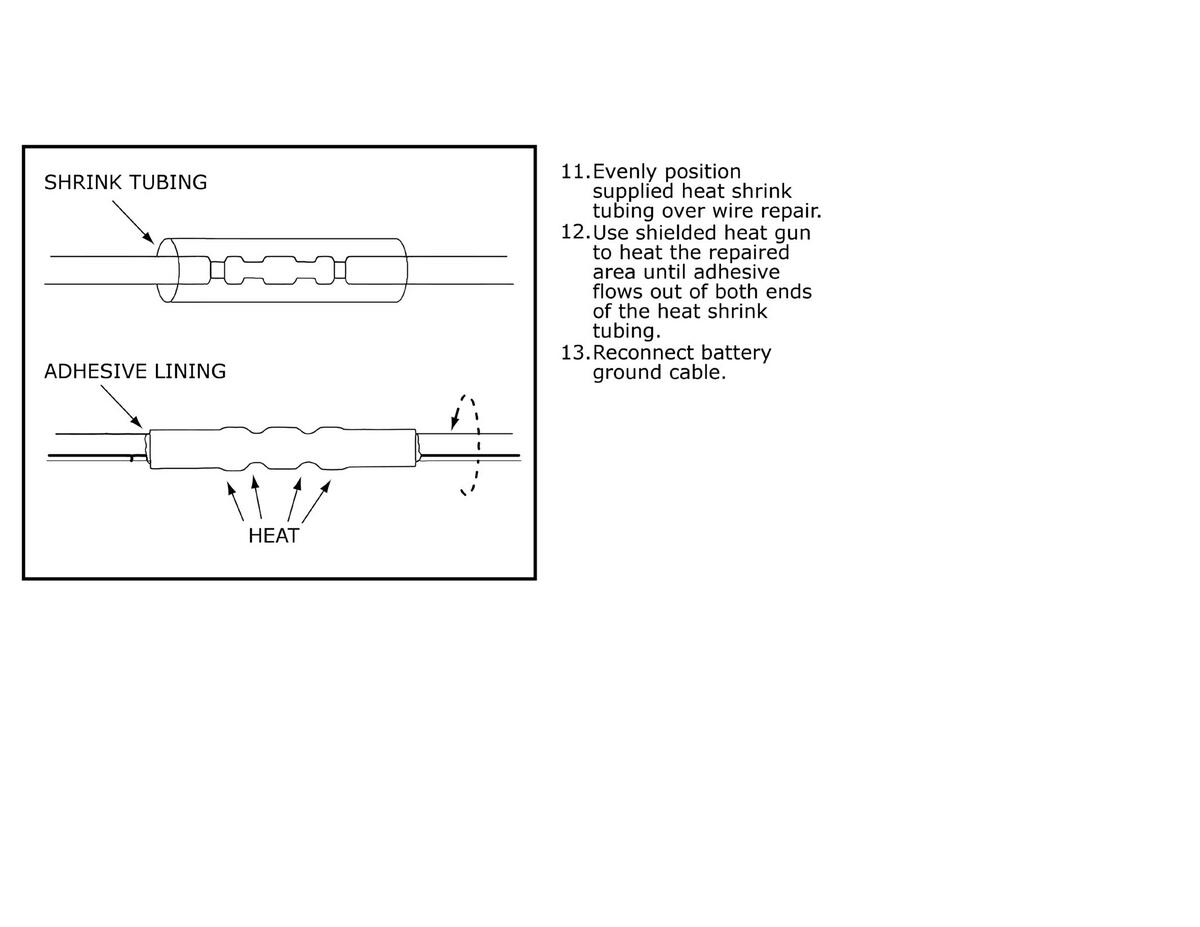

GFDWR254083Courtesy of FORD MOTOR COMPANY

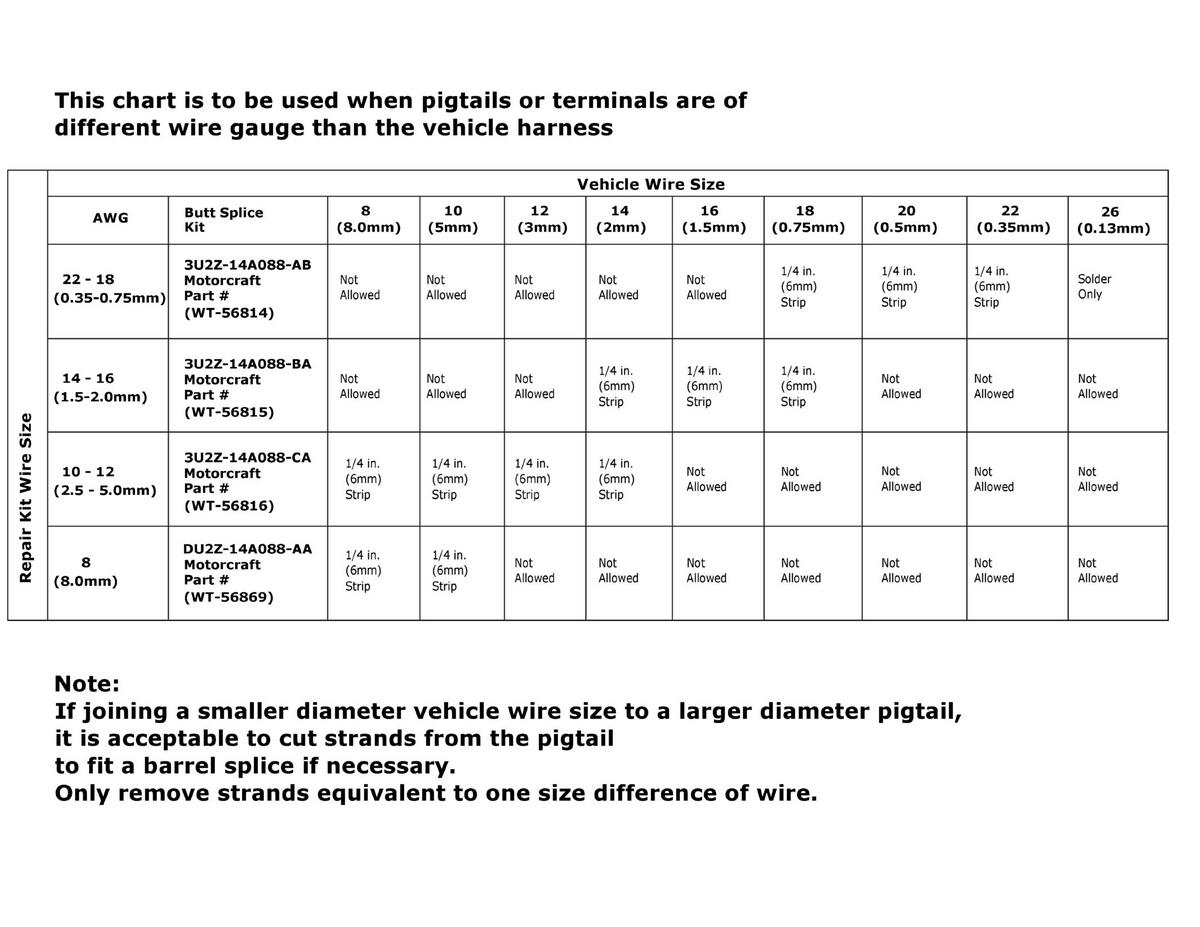

GFDWR254070Courtesy of FORD MOTOR COMPANY

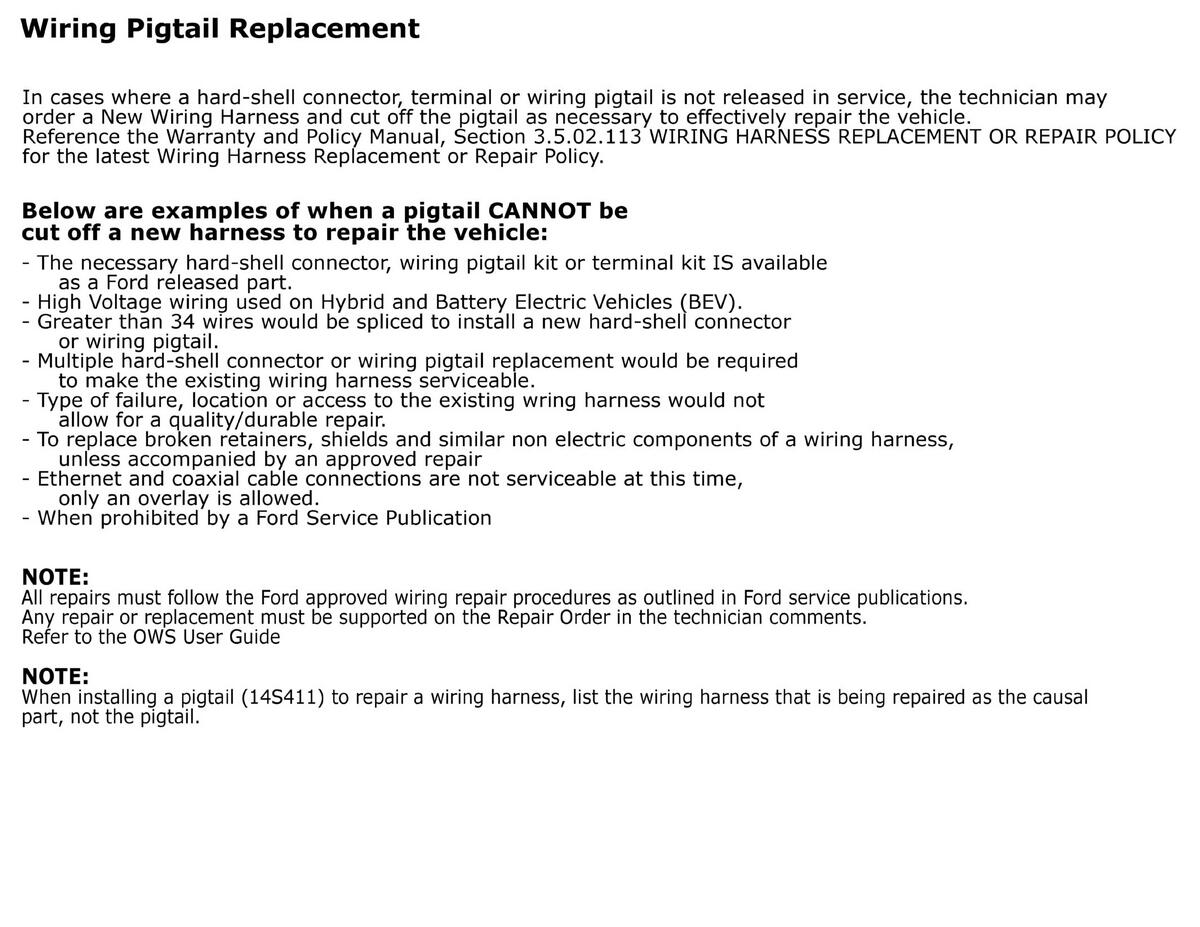

GFDWR254071Courtesy of FORD MOTOR COMPANY

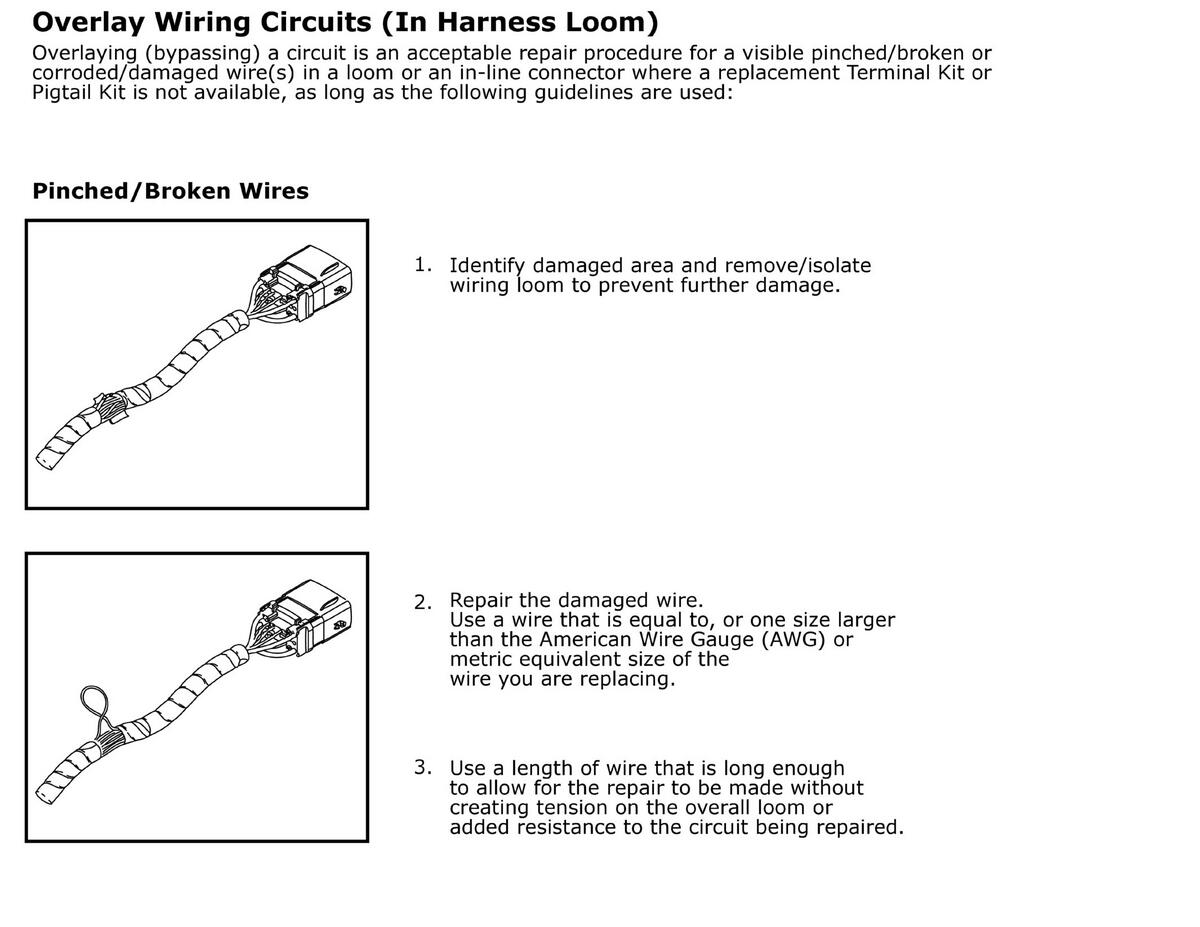

GFDWR254072Courtesy of FORD MOTOR COMPANY

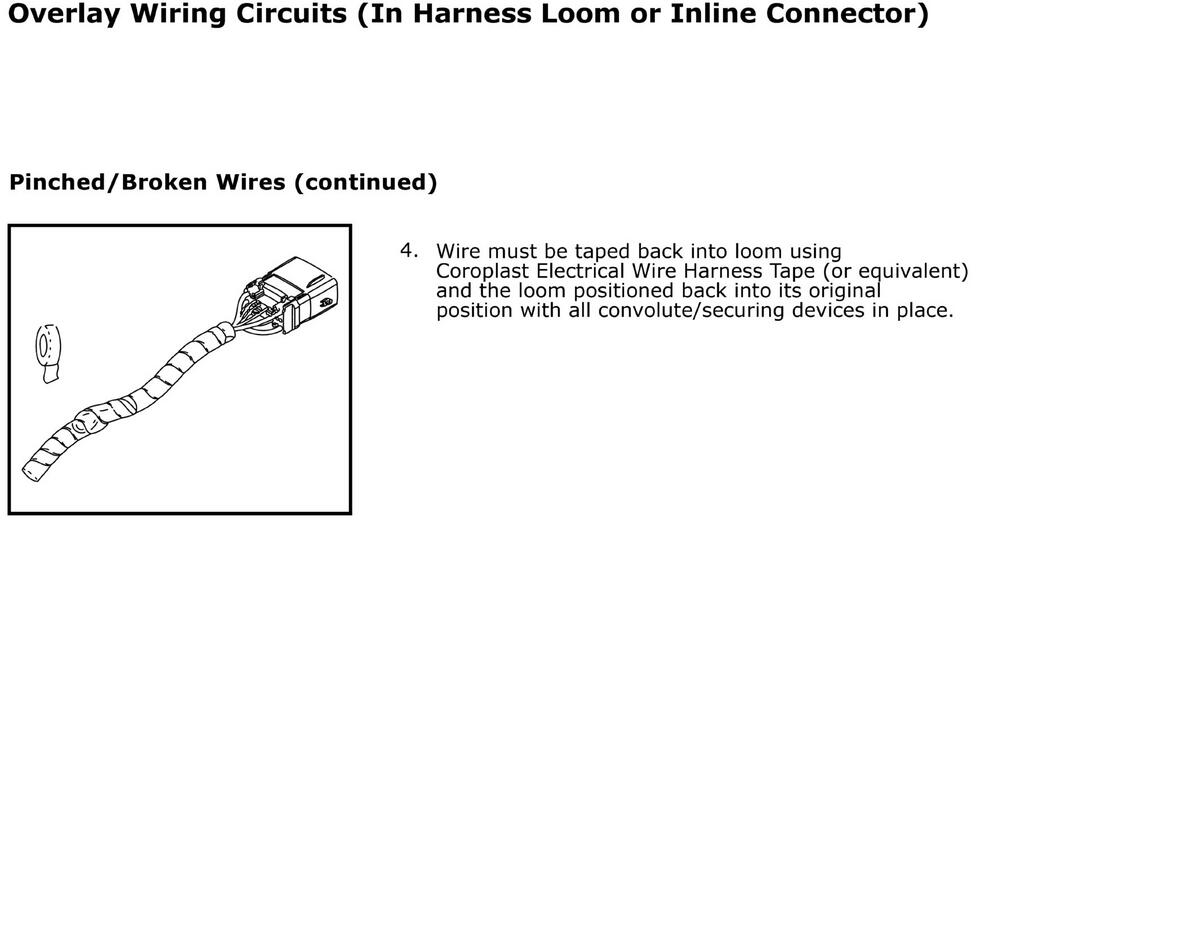

GFDWR254073Courtesy of FORD MOTOR COMPANY

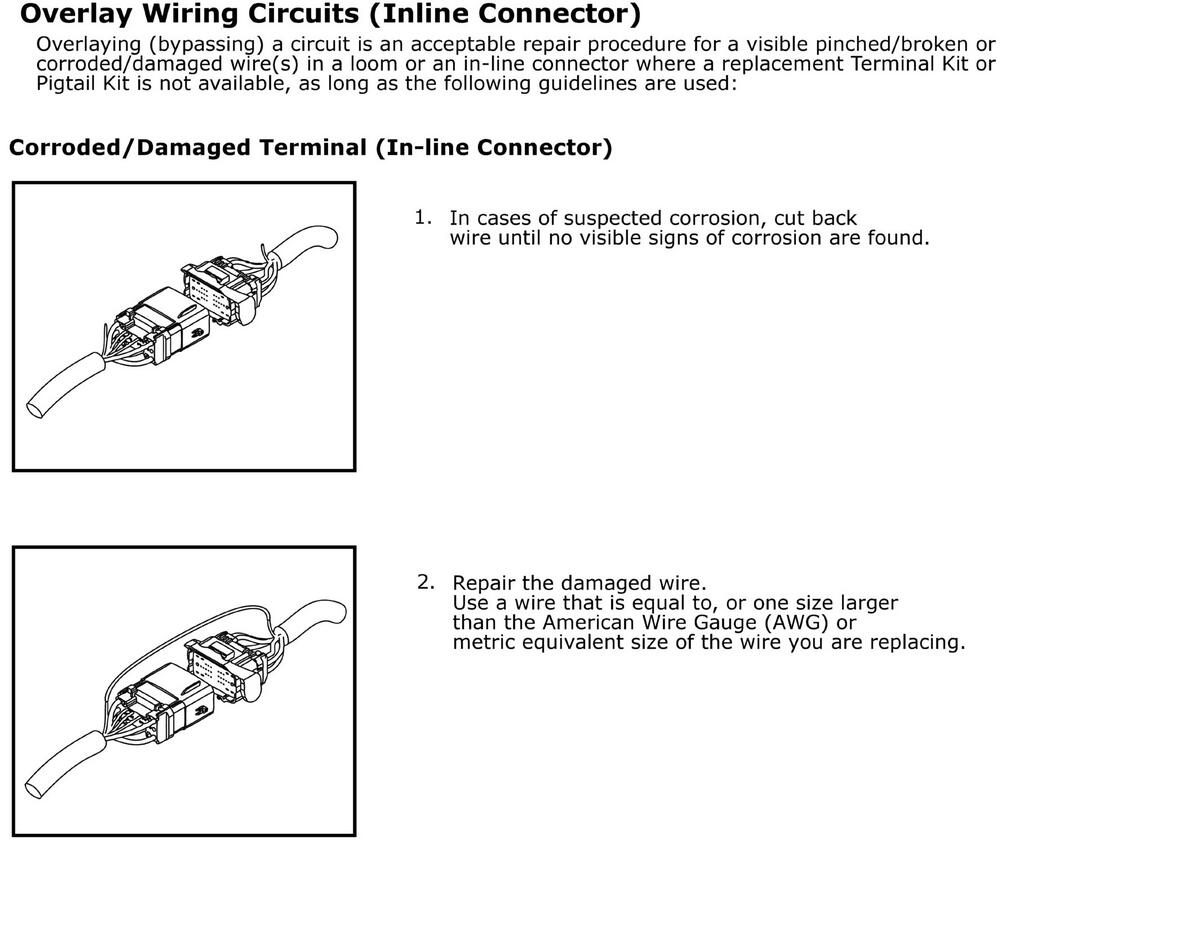

GFDWR254074Courtesy of FORD MOTOR COMPANY

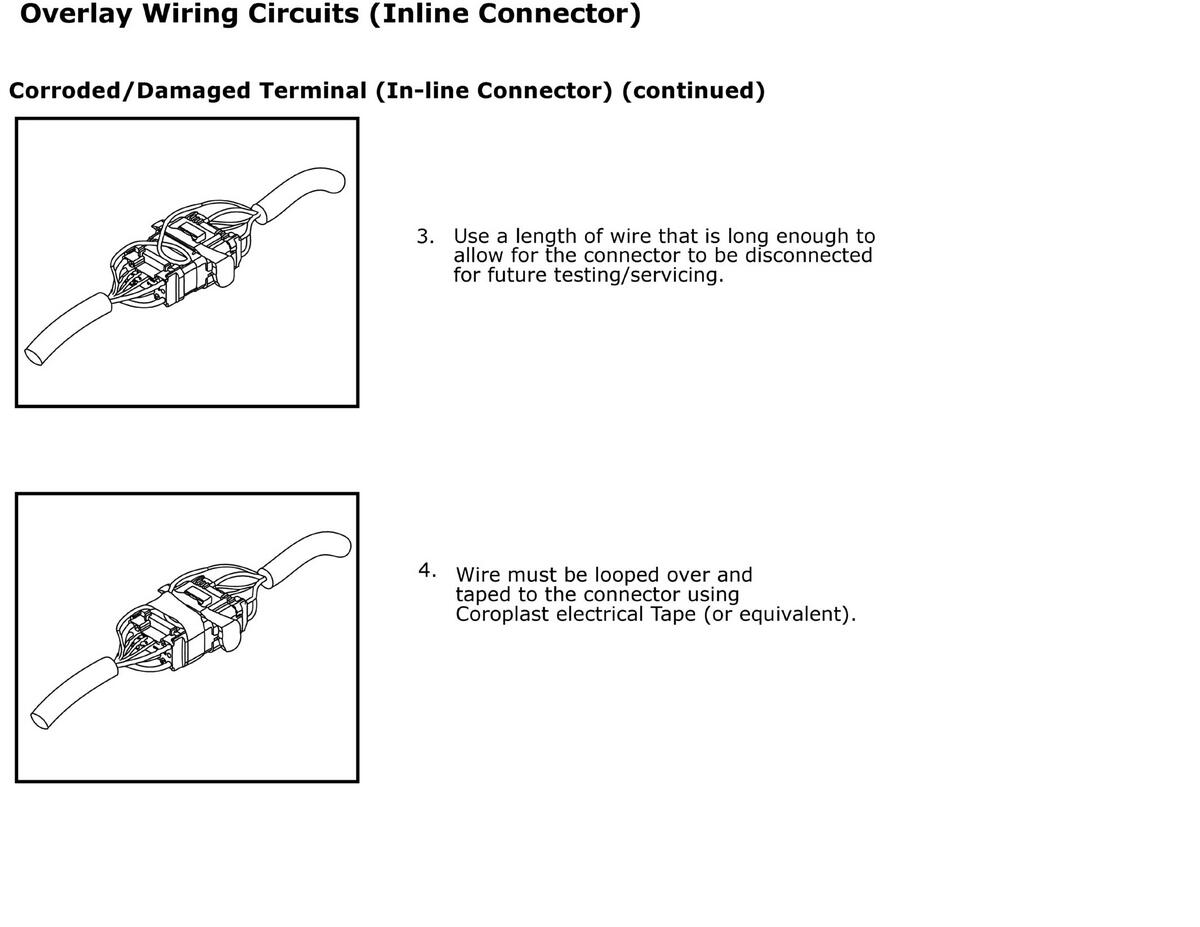

GFDWR254075Courtesy of FORD MOTOR COMPANY
