Description And Operation
›
External Controls - System Operation and Component Description
›

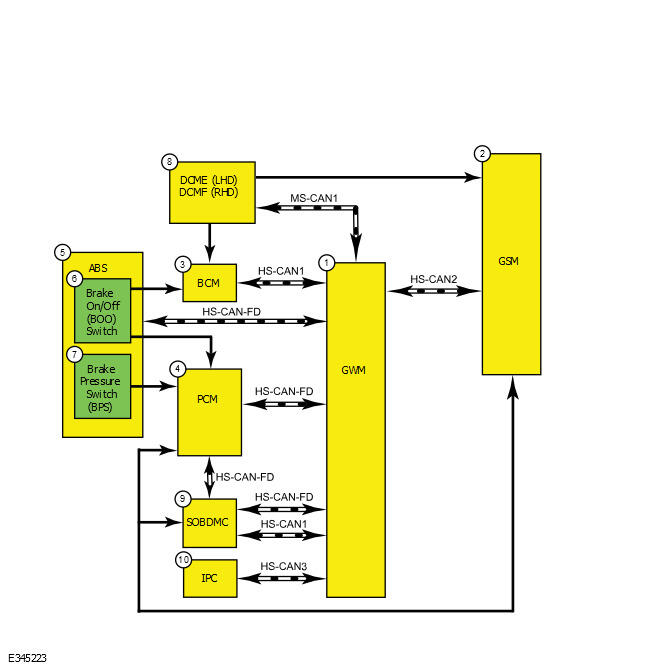

System Diagram
System Diagram
Courtesy of FORD MOTOR COMPANY
Item
Description
1
GWM
2
GSM
3
BCM
4
PCM
5
ABS
6
Brake On/Off (BOO) Switch
7
Brake Pressure Switch (BPS)
8
DCME (LHD) DCMF (RHD)
9
SOBDMC
10
IPC
Courtesy of FORD MOTOR COMPANY
