Frame Members-Rear Frame Section: Installation

NOTE: This step requires the aid of another technician.

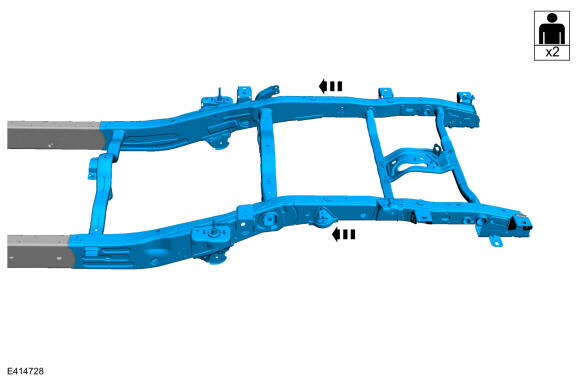

Position the new mid rear frame section into place on the vehicle.

Courtesy of FORD MOTOR COMPANY
Verify dimensional accuracy before performing any welding operations. Refer to: BODY AND FRAME .
Support the new section, and loosely clamp the replacement section in a preliminary position.

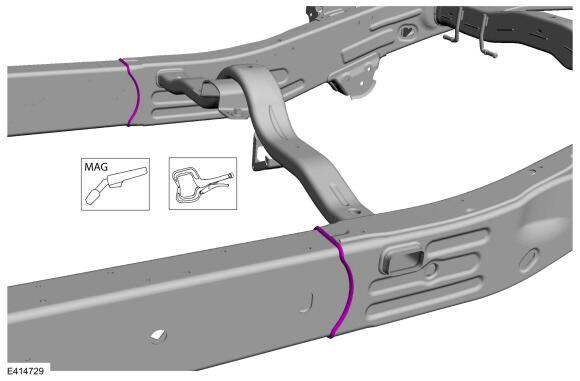

- Verify correct dimensions, then solid weld the new section to the original on all overlap joints. Refer to: BODY AND FRAME . Refer to: JOINING TECHNIQUES
  Use the General Equipment: MIG/MAG Welding Equipment
Courtesy of FORD MOTOR COMPANY
Metal finish the joint area typical metal finishing techniques.
Refinish using a Ford approved paint system.
Restore corrosion protection. Refer to: CORROSION PREVENTION .
NOTE: To avoid damage to the spare tire winch when installing the spare tire, DO NOT exceed 200 RPM if using power tool equipment.

Install the following items:
1. Refer to: Fuel Tank Filler Pipe . Refer to: Fuel Tank Filler Pipe . Refer to: Fuel Tank Filler Pipe .
2. Refer to: Muffler and Tailpipe . Refer to: Muffler and Tailpipe . Refer to: Muffler . Refer to: Tailpipe LH . Refer to: Tailpipe RH .
3. Refer to: Spring .
4. Refer to: Rear Shock Absorber .
5. Refer to: Pickup Bed .
6. Refer to: Rear Bumper .
