All Terrain Control Module (ATCM): Removal

NOTE: Right hand drive (RHD) shown below, Left hand drive (LHD) similar.

NOTE: On both sides.

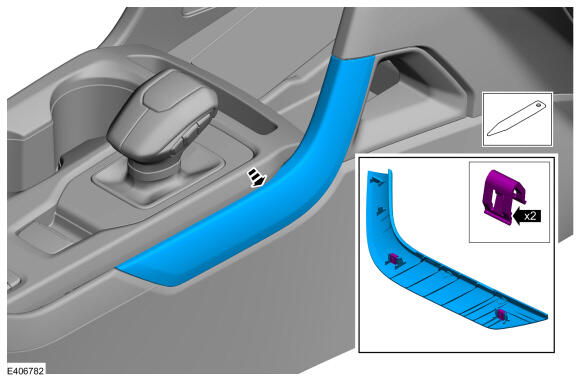

Release the clips and remove the trim.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

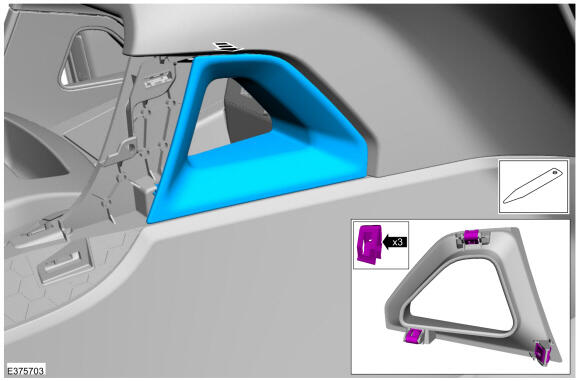

Release the clips and remove the finish panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

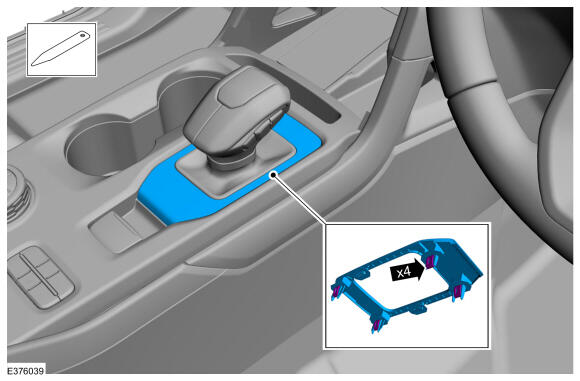

Release the clips and remove the gear shift bezel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

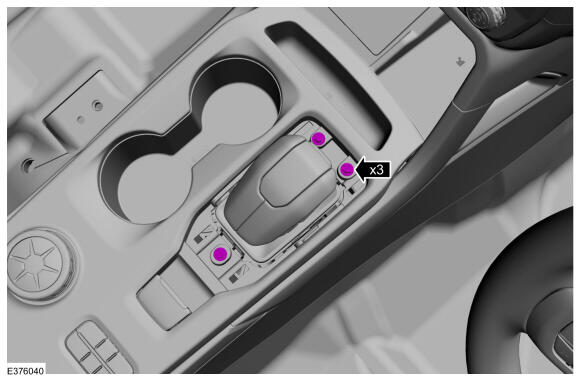

Remove the screws.
Torque: 2.5 Nm

Courtesy of FORD MOTOR COMPANY

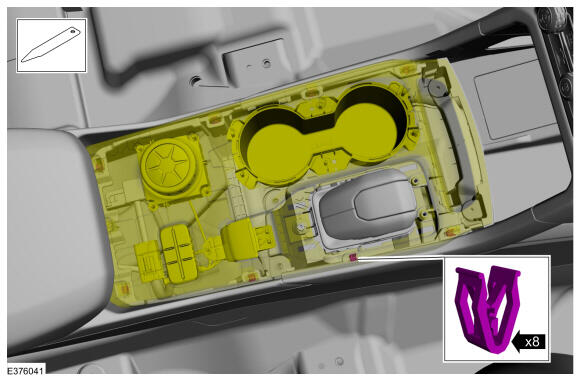

Release the clips and remove the trim panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

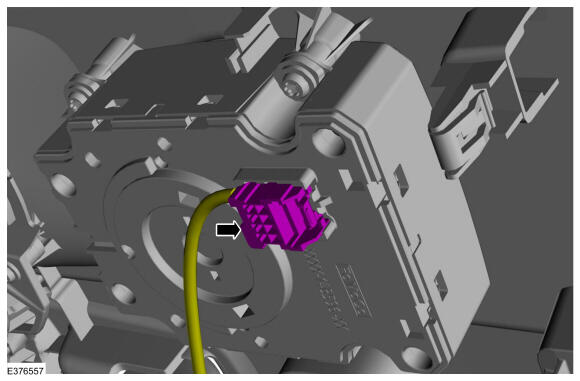

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

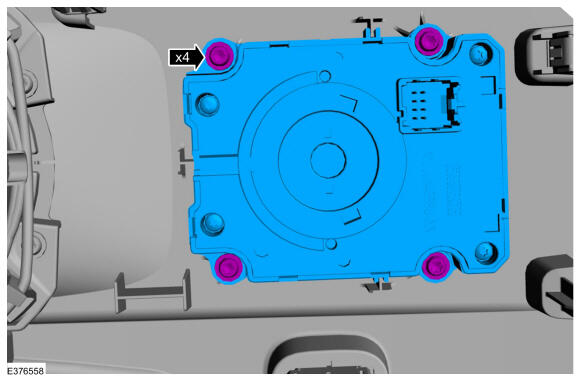

Remove bolts from the ATCM.
Torque: 10 Nm

Courtesy of FORD MOTOR COMPANY

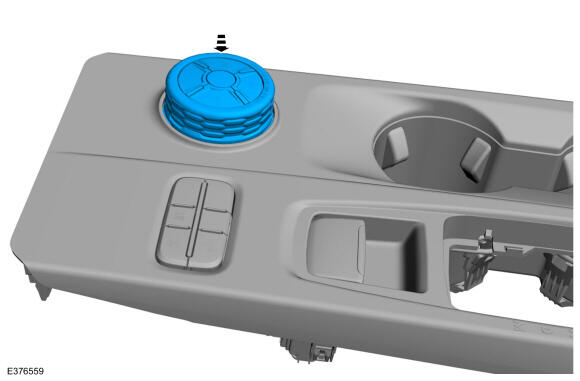

Apply light pressure to the top surface of the ATCM to release it from the trim panel.

Courtesy of FORD MOTOR COMPANY
