Fuel Pump Driver Module (FPDM): Installation

Chassis Cab

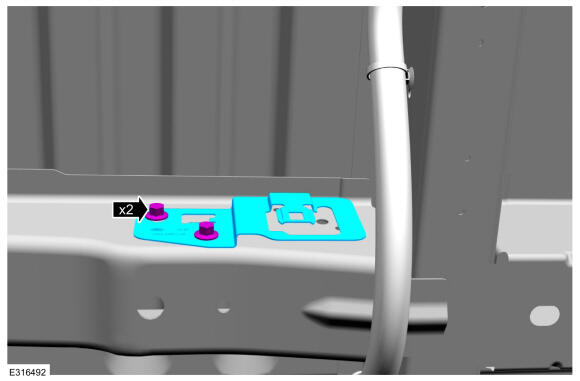

1. Only If removed, install the fuel pump driver module bracket, then install and tighten the bolts.

   Torque : 25 Nm

   Courtesy of FORD MOTOR COMPANY

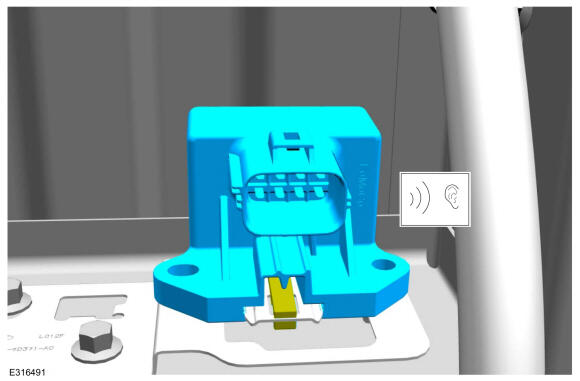

2. Install the fuel pump driver module to the bracket until it clicks and locks into position.

   Courtesy of FORD MOTOR COMPANY

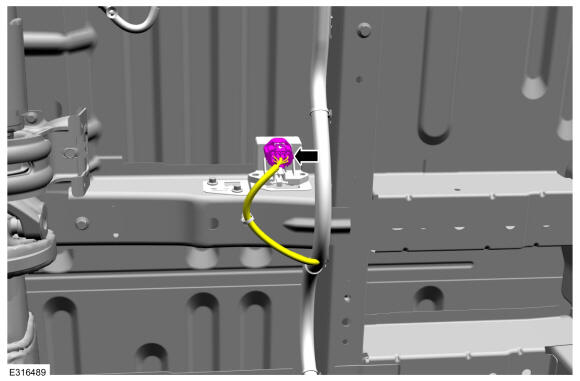

3. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

   Full Body

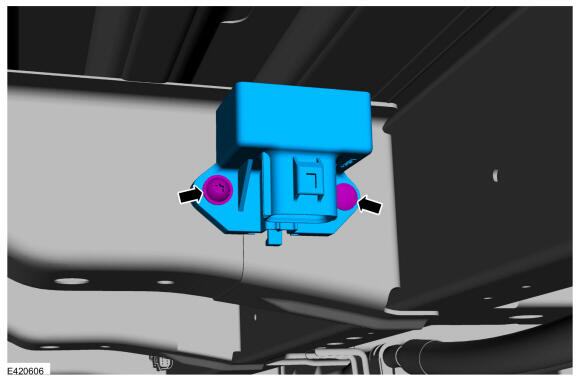

4. Install the fuel pump driver module and the retainer, then tighten the bolt.

   Torque : 25 Nm

   Courtesy of FORD MOTOR COMPANY

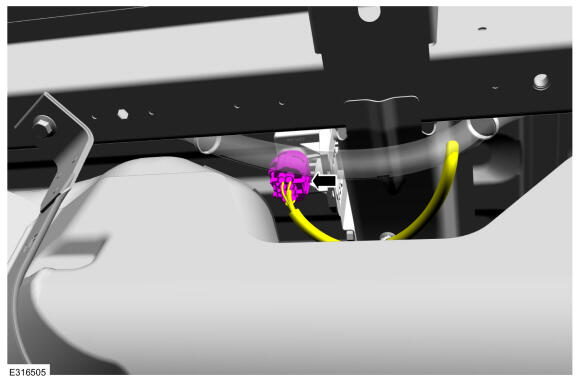

5. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

6. Install the fuel tank. Refer to: Fuel Tank
