Tune-Up - V8: Distributor

Point Gap
	New	.019"
	Used	.016"
Cam Angle		28-32°
Breaker Arm Spring Tension		19-23 ozs.
Condenser Capacity		.18-.23 mfd.

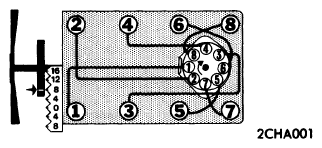

Fig 1: Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY
