Resistor R4

Use ohmmeter scale on which 15000 ohm value is within or close to the middle third of scale. If EITHER reading is infinite, resistor is open.

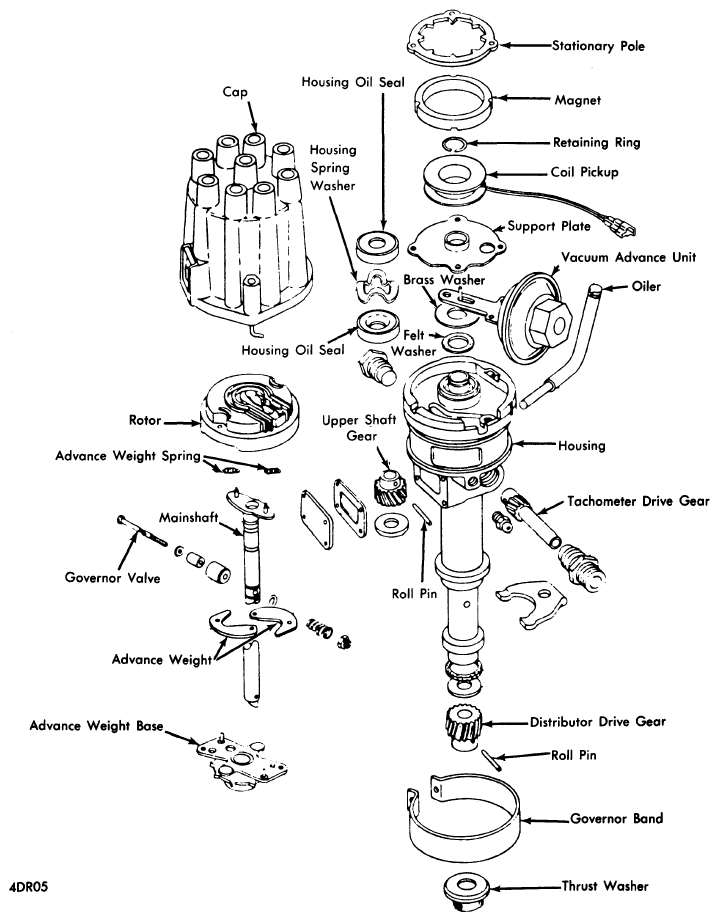

Fig 1: DELCO-REMY TRANSISTOR IGNITION DISTRIBUTOR
G09325453Courtesy of GENERAL MOTORS COMPANY
