Window Regulator Motor
- Disconnect battery ground cable and remove door trim panel, arm rest and pull assist brackets.
- Raise glass to full "UP" position and tape to door frame using cloth body tape.

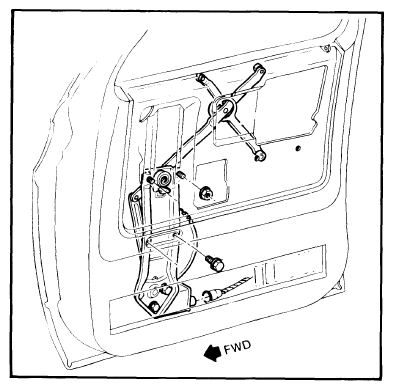

- Remove regulator attaching nuts and bolts, disconnect harness from motor regulator.
- Slide regulator assembly rearward, disengaging roller from sash channel and remove regulator assembly through access hole in door.
- Drill hole through sector gear and back plate. Do not drill hole closer than 1/2" 10 edge of gear or plate.CAUTION: Sector gear must be locked when removing regulator to prevent injury from counterbalance spring.
- Remove motor from regulator. Remove motor-to-regulator attaching screws and remove motor from regulator.
- To install, reverse removal procedures.
