Wiring Diagrams

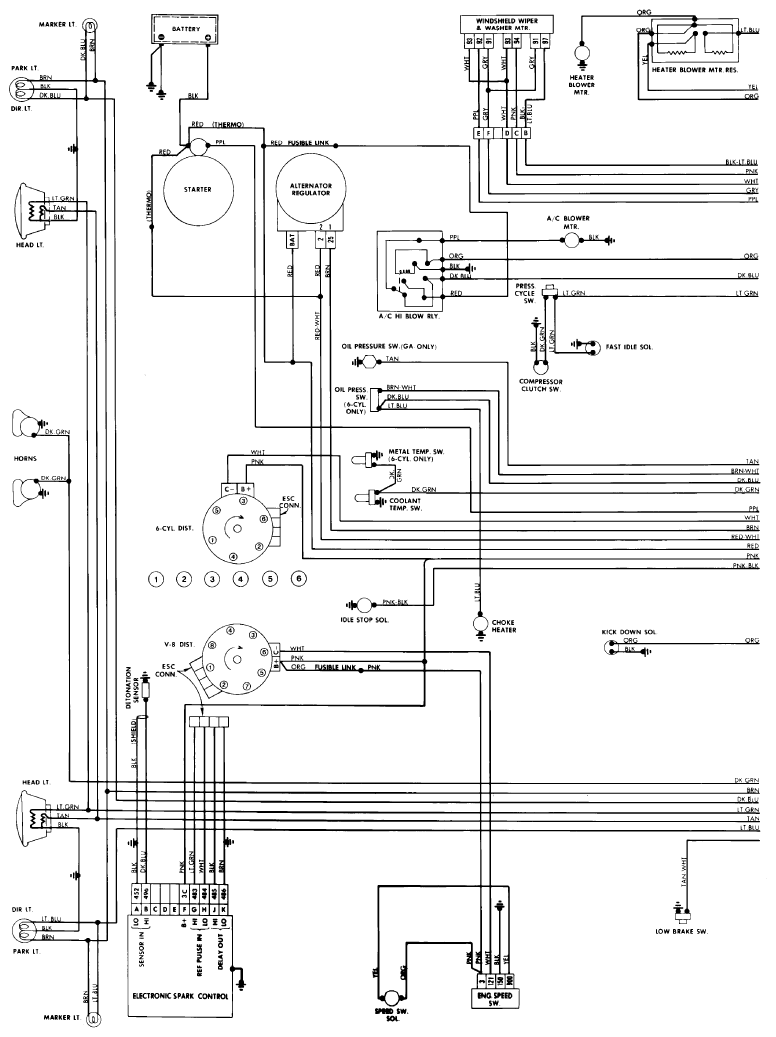

Fig 1: Wiring Diagram - Engine Compartment
G09308563Courtesy of GENERAL MOTORS COMPANY

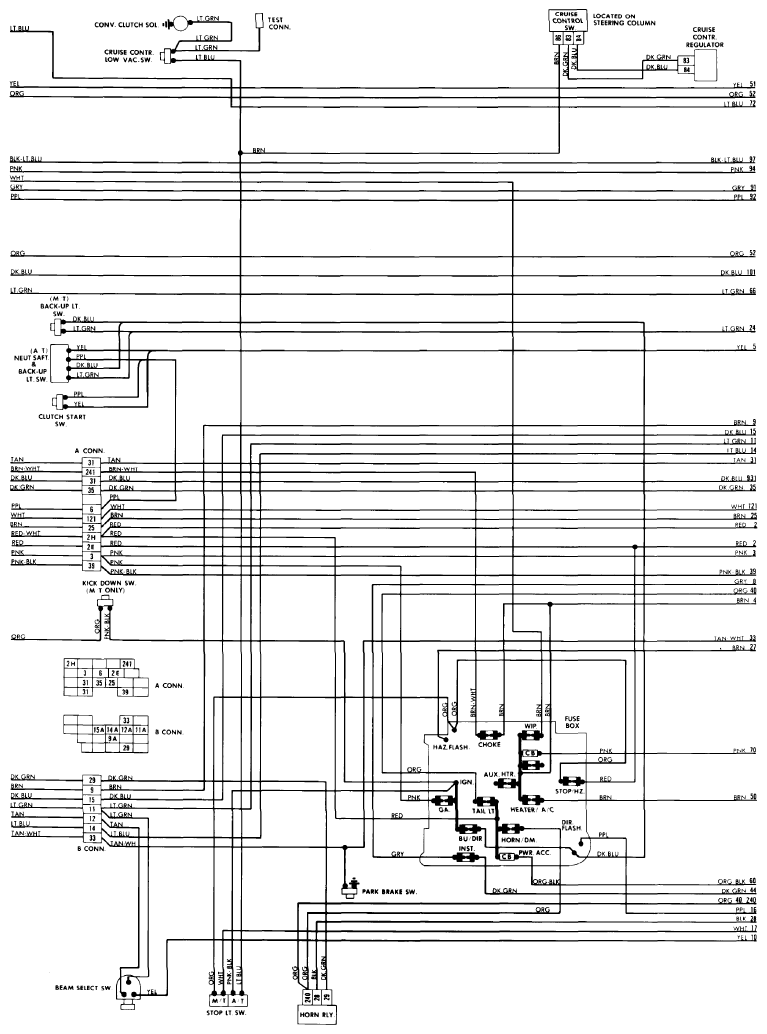

Fig 2: Wiring Diagram - Fuse Block & Underdash
G09308564Courtesy of GENERAL MOTORS COMPANY

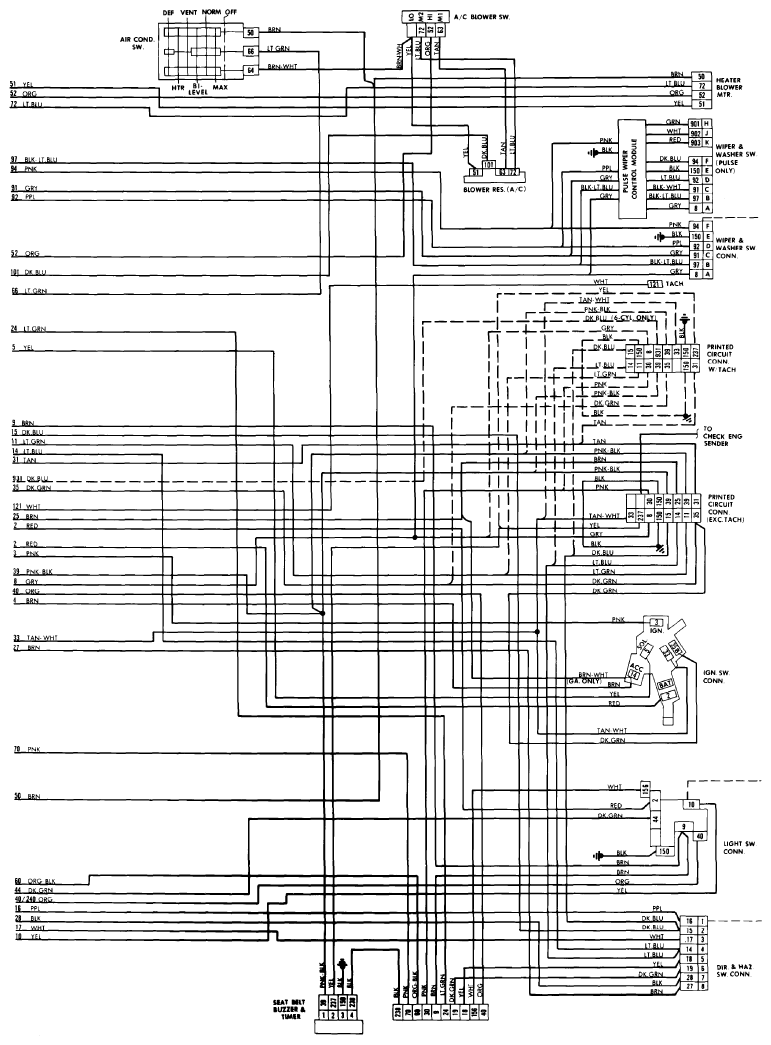

Fig 3: Wiring Diagram - Instrument Panel & Underdash
G09308565Courtesy of GENERAL MOTORS COMPANY

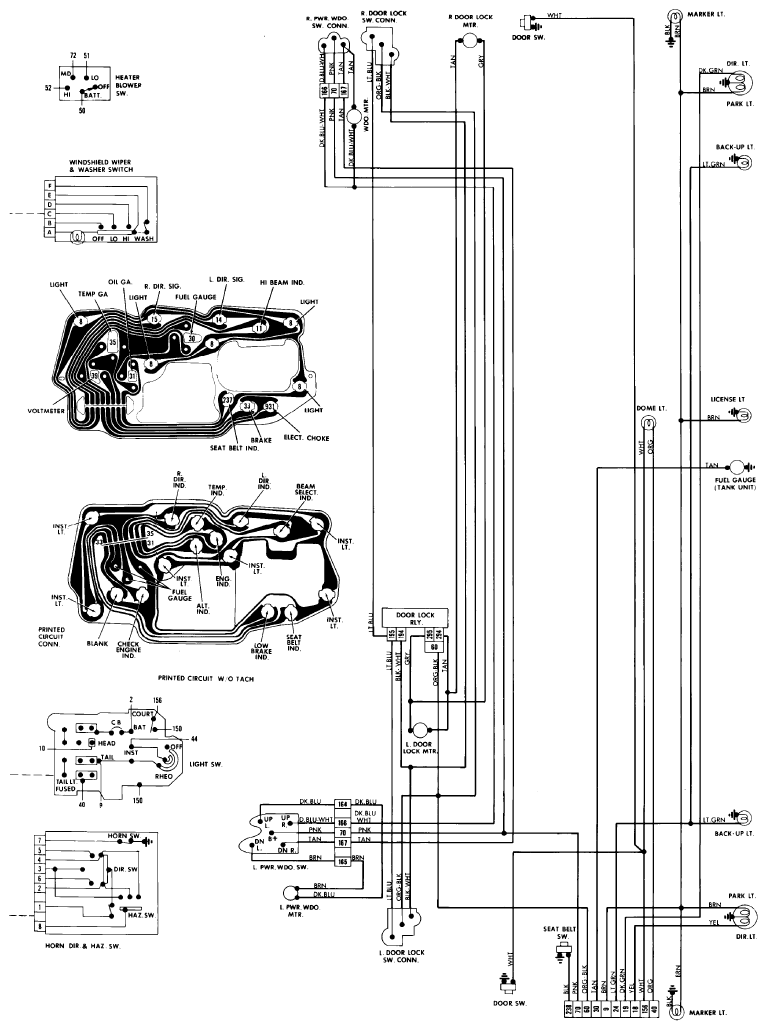

Fig 4: Wiring Diagram - Rear Compartment & Accessories
G09308566Courtesy of GENERAL MOTORS COMPANY
