Propeller Shaft Alignment: Description

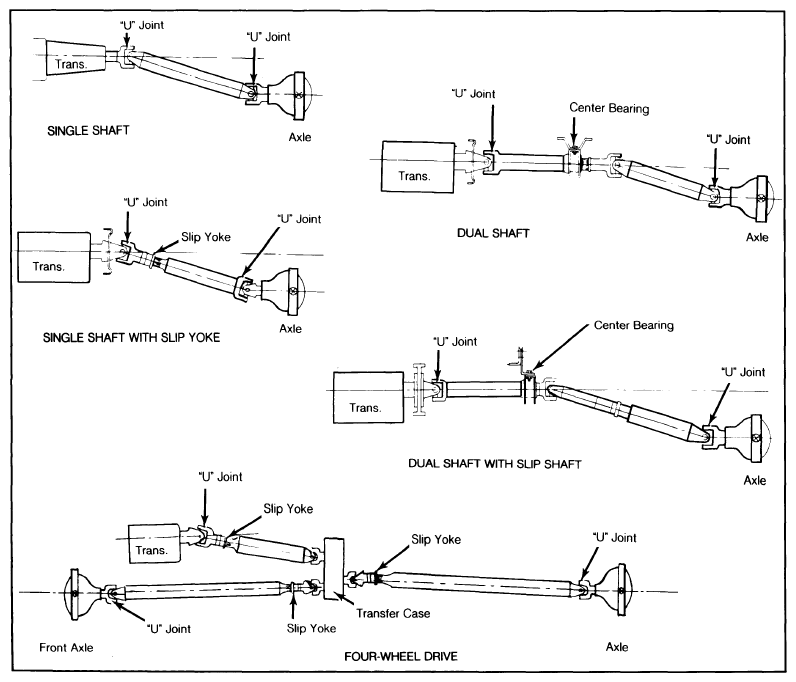

Propeller shafts are balanced, 1-piece, tubular shafts with universal joints at each end. The number used in a vehicle varies: 1 shaft, 2 shafts with center bearing, or 3 shafts in 4-wheel drive applications. Location of slip joints varies with model and manufacturer. See  Figure .
