Wiper Will Operate at One Speed Only

Check for open wiring between terminals 2 or 3 and the dash switch. Check dash switch and if not operable, check "Low" and "High" brush leads.

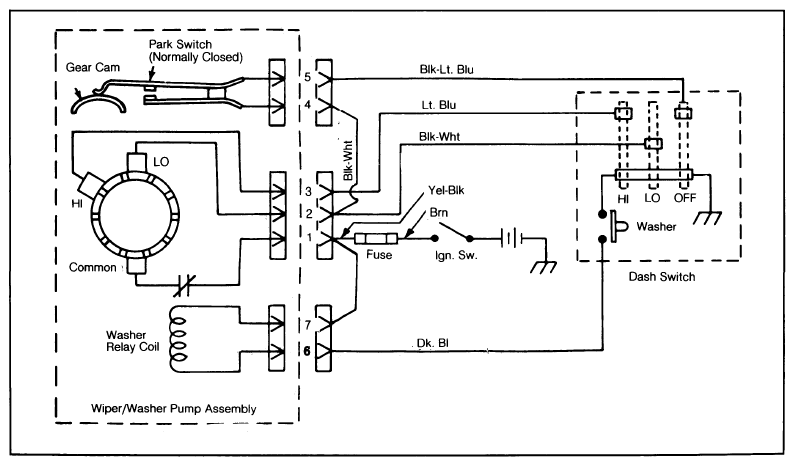

Fig 1: General Motors Truck Wiper Motor & Integral Washer System Wiring Diagram

Courtesy of GENERAL MOTORS COMPANY
