Engine Oiling System
Gear-type oil pump delivers full pressure lubrication to main oil gallery, through full-flow oil filter. Through drilled passages in block, main oil gallery feeds oil to all crankshaft and camshaft bearings.

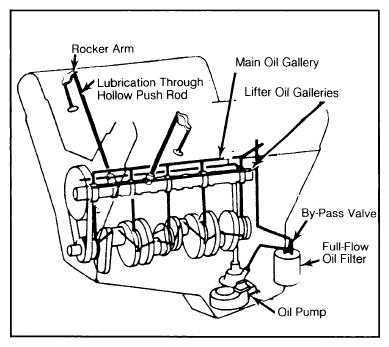

Valve lifter oil gallery feeds lifters. From lifters, oil is routed through hollow push rods to upper valve train components. Timing chain and sprockets are lubricated by oil drainage from No. 1 camshaft bearing. See Fig 1.
Timing chain and sprockets are lubricated by oil drainage from No. 1 camshaft bearing.
