Secondary Opening Linkage
- Open primary throttle valves until secondary throttle link just contacts tang on secondary throttle lever.

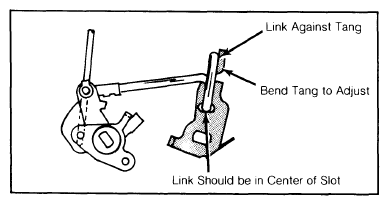

- Link should be centered in slot of secondary throttle lever. To adjust, bend tang on secondary throttle lever. See Fig 1.
Secondary throttle link should just contact tang on secondary throttle lever.
