1982 Test Charts

Fig 1: Diagnostic Procedure

G09360683

Courtesy of GENERAL MOTORS COMPANY

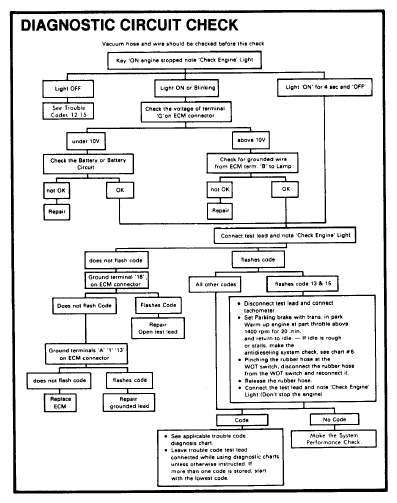

Fig 2: Diagnostic Circuit Check

G09360684

Courtesy of GENERAL MOTORS COMPANY

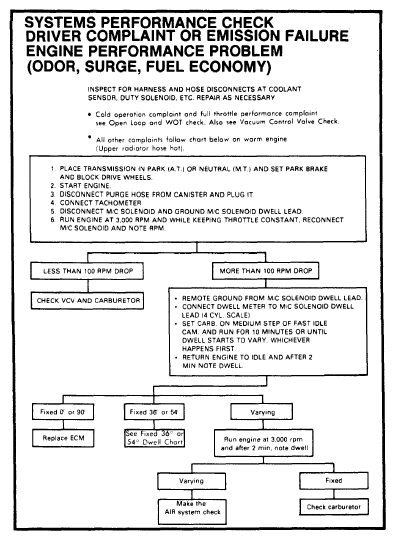

Fig 3: Systems Performance Check Driver Complaint Or Emission Failure Engine Performance Problem (Odor, Surge, Fuel Economy)

G09360685

Courtesy of GENERAL MOTORS COMPANY

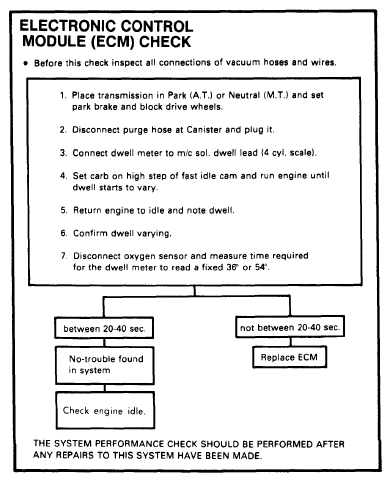

Fig 4: Electronic Control Module (ECM) Check

G09360686

Courtesy of GENERAL MOTORS COMPANY

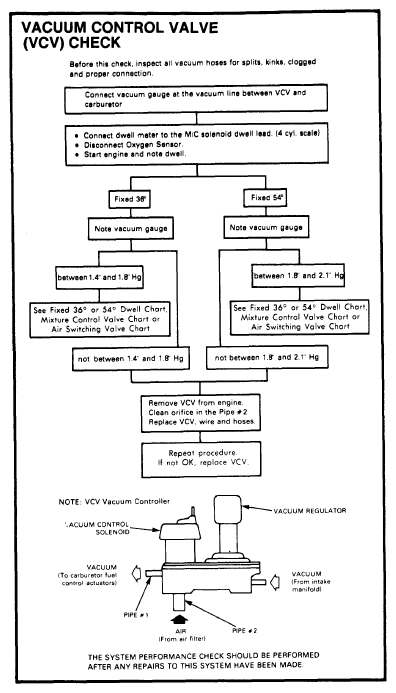

Fig 5: Vacuum Control Valve (VCV) Check

G09360687

Courtesy of GENERAL MOTORS COMPANY

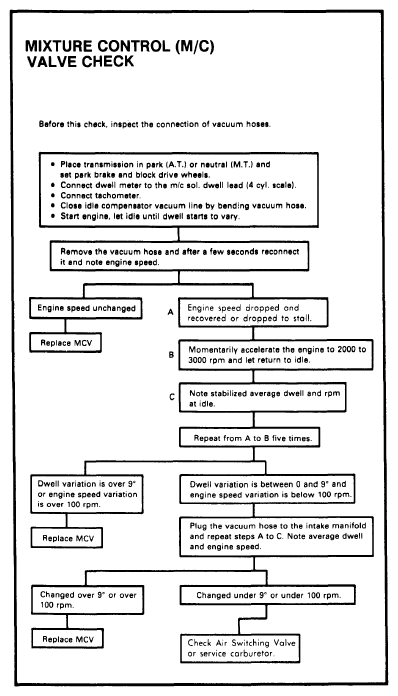

Fig 6: Mixture Control (M/C) Valve Check

G09360688

Courtesy of GENERAL MOTORS COMPANY

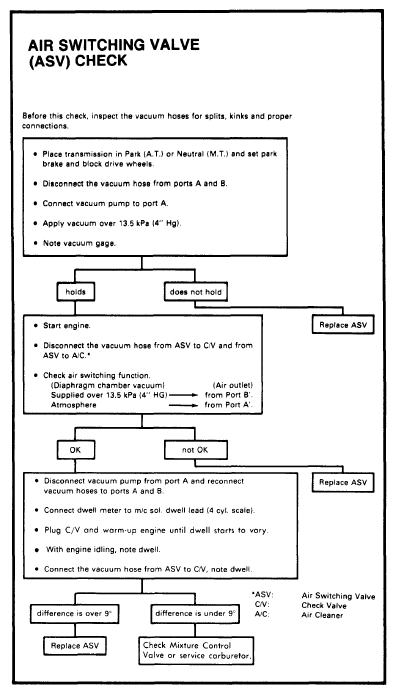

Fig 7: Air Switching Valve (ASV) Check

G09360689

Courtesy of GENERAL MOTORS COMPANY

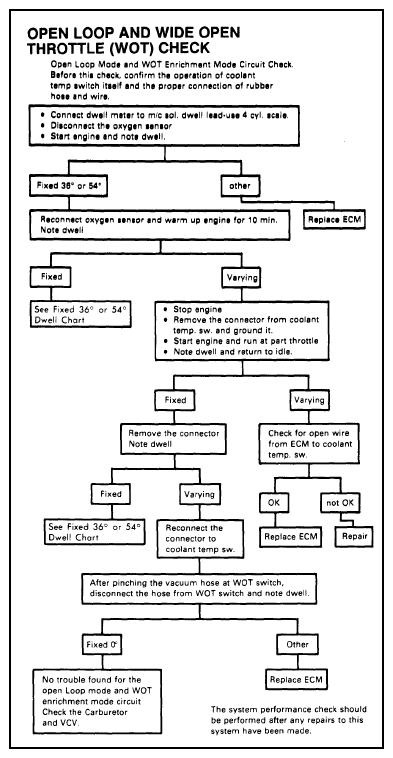

Fig 8: Open Loop And Wide Open Throttle (WOT) Check

G09360690

Courtesy of GENERAL MOTORS COMPANY

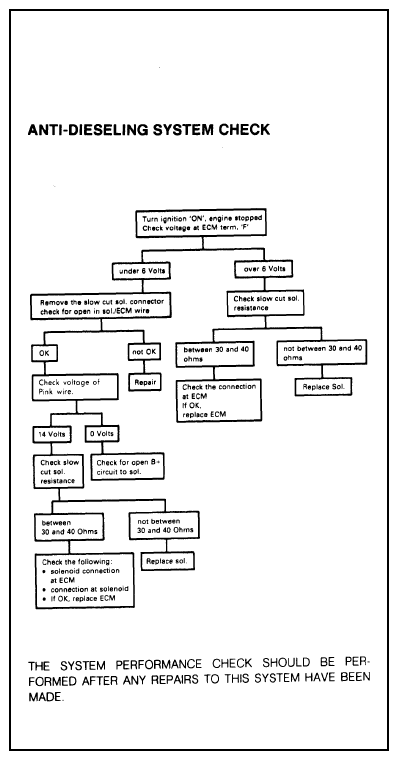

Fig 9: Anti-Dieseling System Check

G09360691

Courtesy of GENERAL MOTORS COMPANY

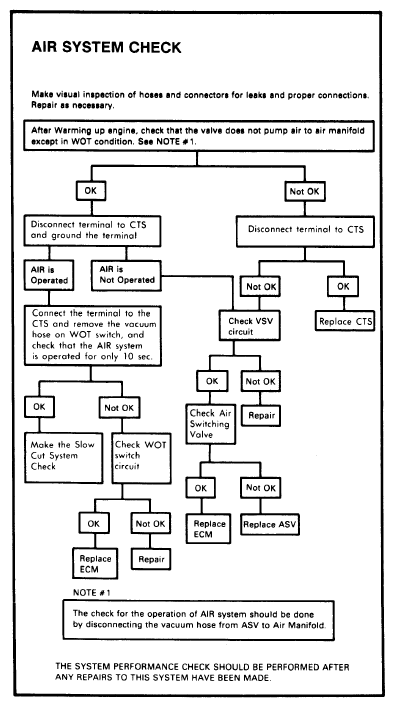

Fig 10: Air System Check

G09360692

Courtesy of GENERAL MOTORS COMPANY

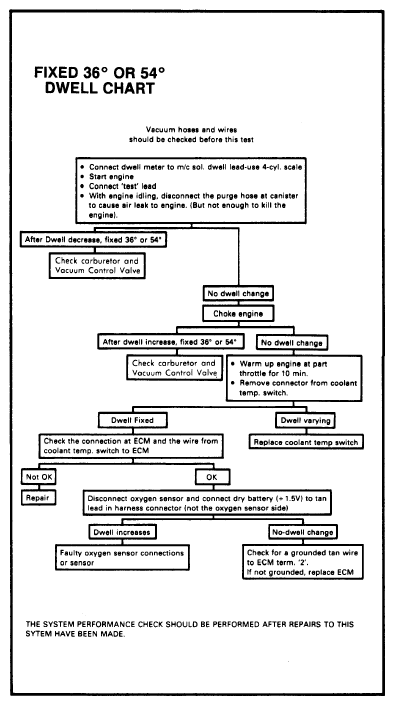

Fig 11: Fixed 36° OR 54° Dwell Chart

G09360693

Courtesy of GENERAL MOTORS COMPANY

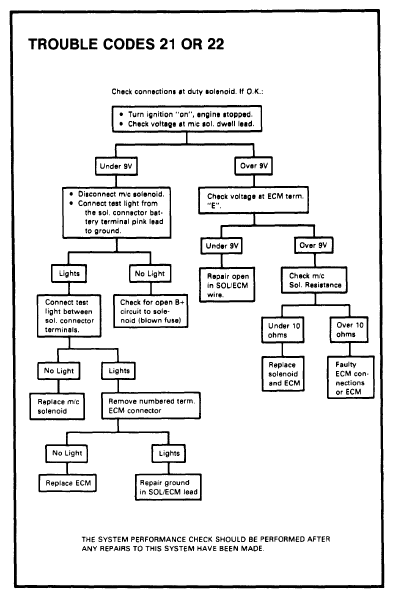

Fig 12: Trouble Codes 21 OR 22

G09360694

Courtesy of GENERAL MOTORS COMPANY

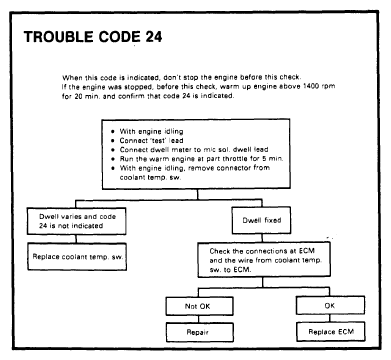

Fig 13: Trouble Code 24

G09360696

Courtesy of GENERAL MOTORS COMPANY

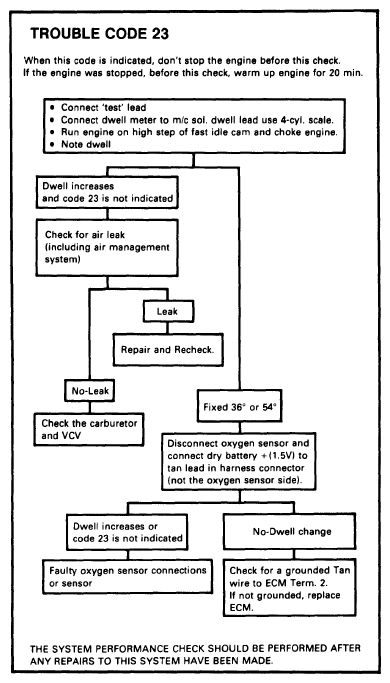

Fig 14: Trouble Code 23

G09360695

Courtesy of GENERAL MOTORS COMPANY

Fig 15: Trouble Code 25

G09360697

Courtesy of GENERAL MOTORS COMPANY

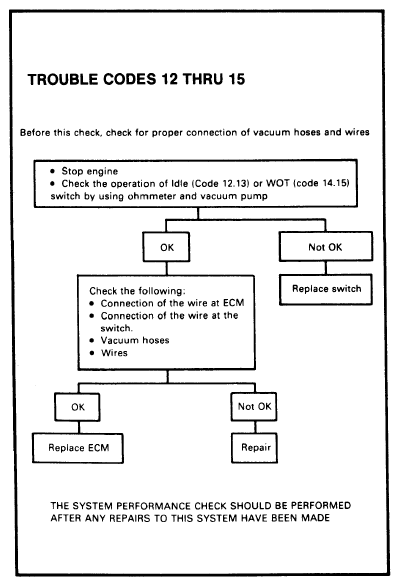

Fig 16: Trouble Codes 12 Thru 15

G09360698

Courtesy of GENERAL MOTORS COMPANY

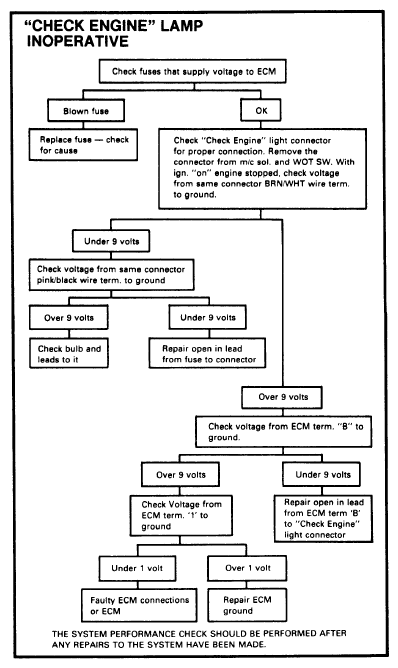

Fig 17: "Check Engine" Lamp Inoperative

G09360699

Courtesy of GENERAL MOTORS COMPANY

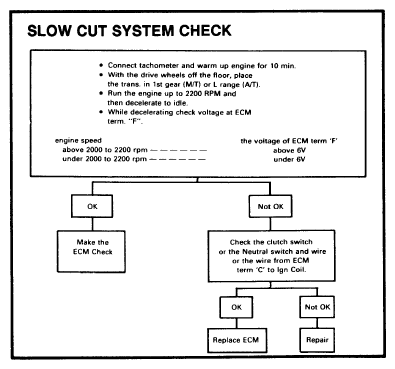

Fig 18: Slow Cut System Check

G09360700

Courtesy of GENERAL MOTORS COMPANY

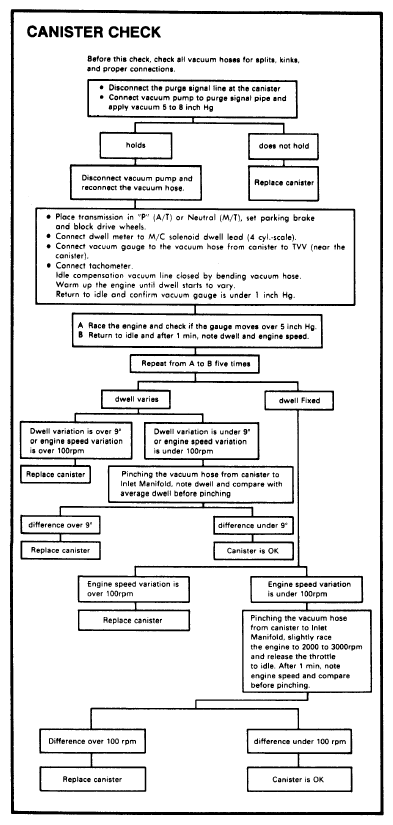

Fig 19: Canister Check

G09360701

Courtesy of GENERAL MOTORS COMPANY

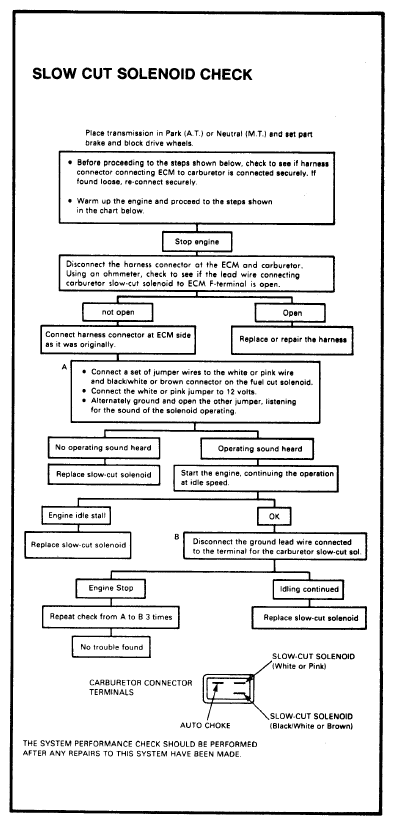

Fig 20: Slow Cut Solenoid Check

G09360702

Courtesy of GENERAL MOTORS COMPANY

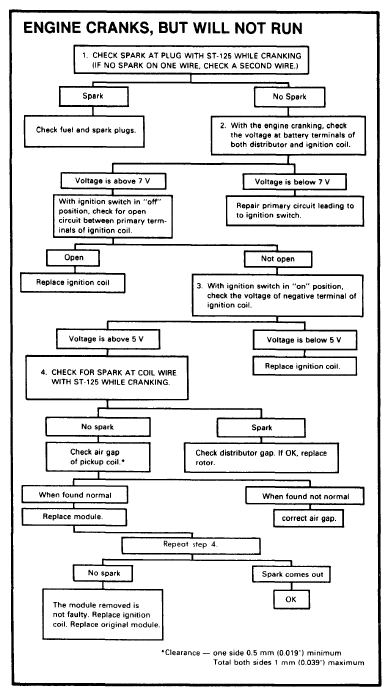

Fig 21: Engine Cranks, But Will Not Run

G09360703

Courtesy of GENERAL MOTORS COMPANY
