Code 54 - Shorted Vacuum Control Solenoid

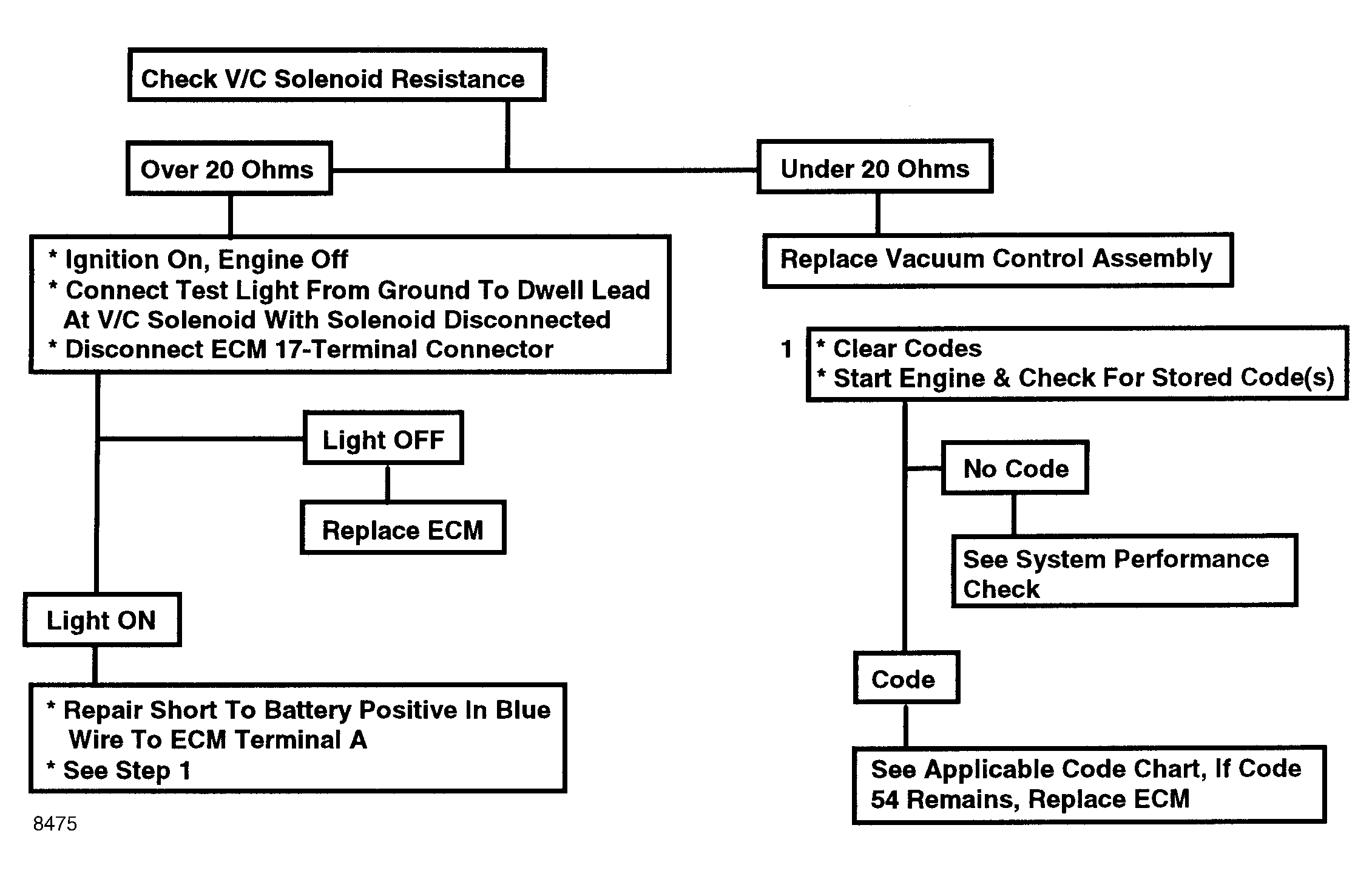

Fig 1: Flow Chart, Trouble Code 54 - Shorted Vac Cont Sol And/Or Faulty ECM

G8475

Fig 2: Flow Chart, Trouble Code 54 - Shorted Vac Cont Sol And/Or Faulty ECM

GB0047689
