Code 15 - Open Cts Circuit

Fig 1: Flow Chart, Code 15 - Open Coolant Temp. Sensor (CTS) Ckt

G8511

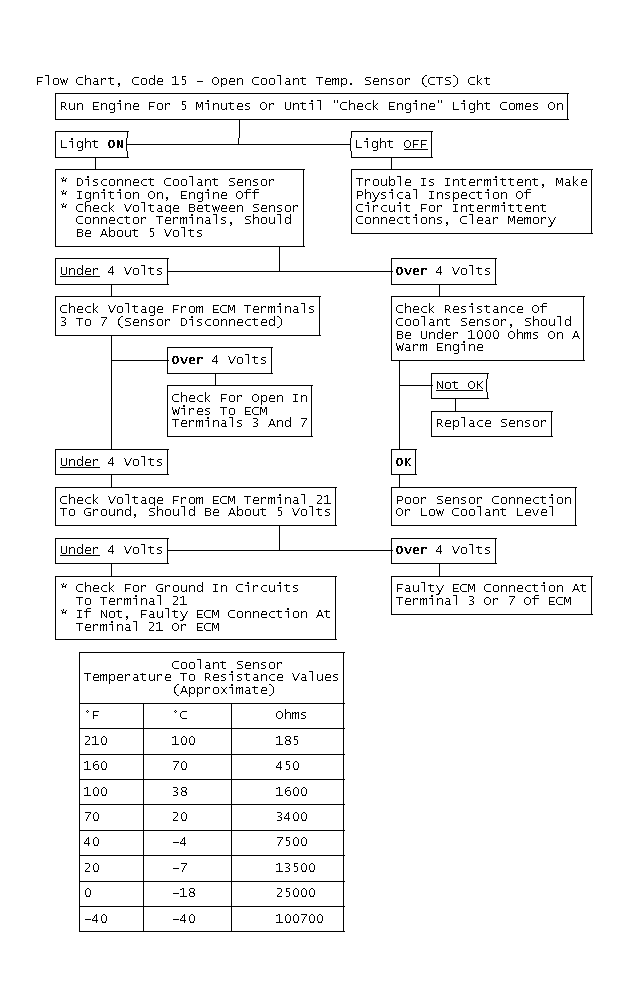

Fig 2: Flow Chart, Code 15 - Open Coolant Temp. Sensor (CTS) Ckt

GB0047697
