Choke Unloader
NOTE:
Choke coil lever and choke rod (fast idle cam) adjustments must be correct before performing this adjustment. Adjustment is performed with choke valve angle gauge. See procedure at beginning of Adjustments. DO NOT
remove rivets and choke cover to perform this adjustment.

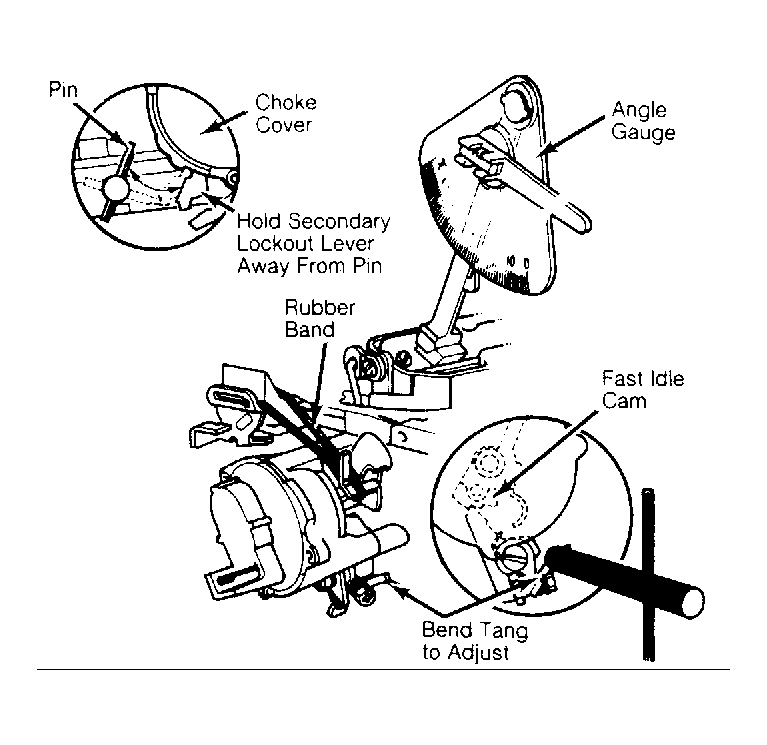

- Attach rubber band to Green tang of intermediate choke shaft. Open throttle to allow choke valve to close. Set up angle gauge. Hold secondary lockout lever away from pin. See Fig 1.
- Hold throttle lever in wide open position. Bubble on choke valve angle gauge should be centered with specified degree mark opposite pointer.
- To adjust, bend choke unloader tang on fast idle lever until bubble of choke valve angle gauge is centered. Remove gauge.
