Feedback Carburetor Tests W/Codes
›
Code 21 - TPS Circuit
Code 21 - TPS Circuit

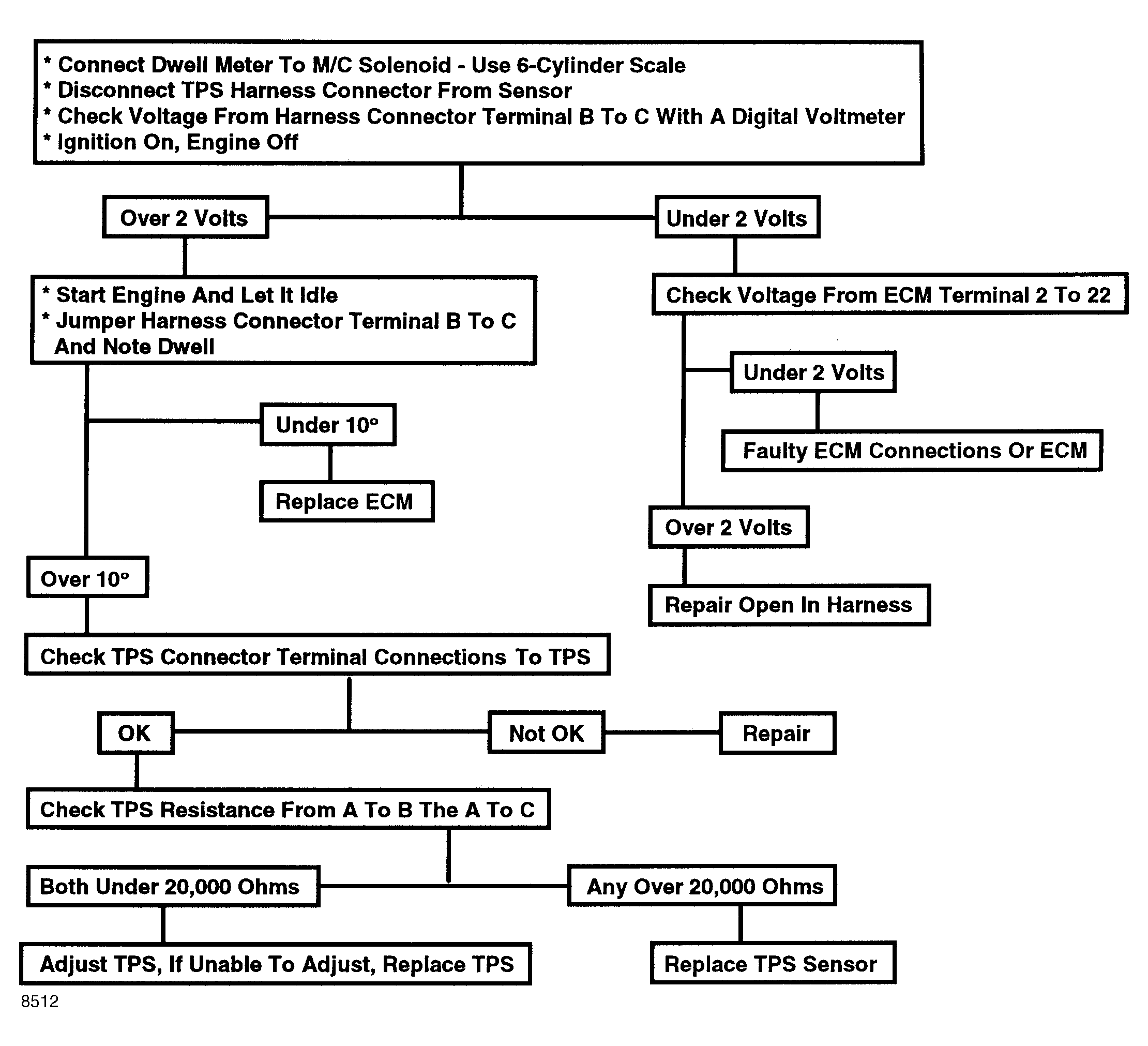

Fig 1: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit
Fig 2: Flow Chart, Code 21 - Throttle Position Switch (TPS) Circuit
