Feedback Carburetor Tests W/Codes
›
TPS Enrichment Check
TPS Enrichment Check

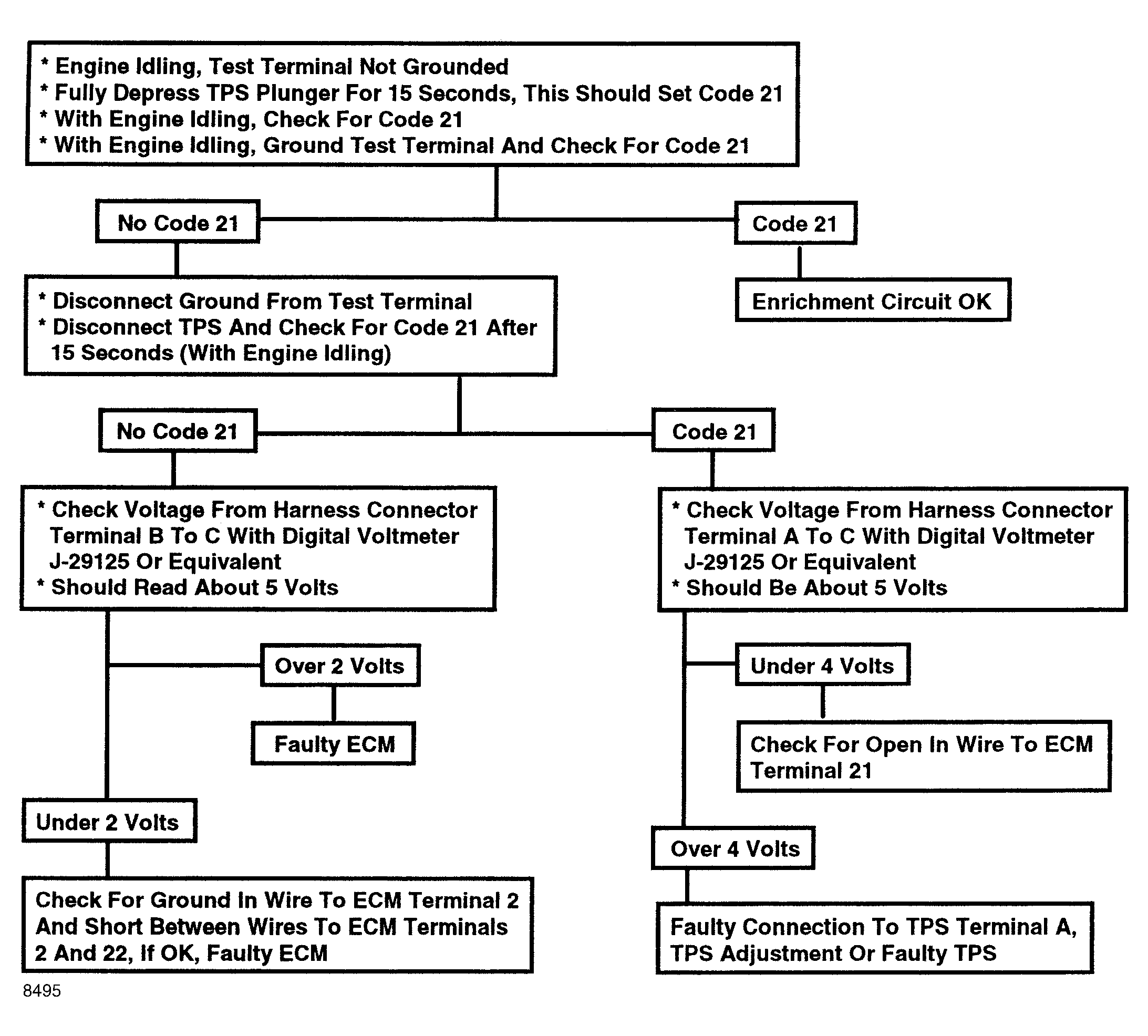

Fig 1: Flow Chart - TPS Enrichment Check
Fig 2: Flow Chart - TPS Enrichment Check
