Electronic Spark Timing (Est) Performance Check

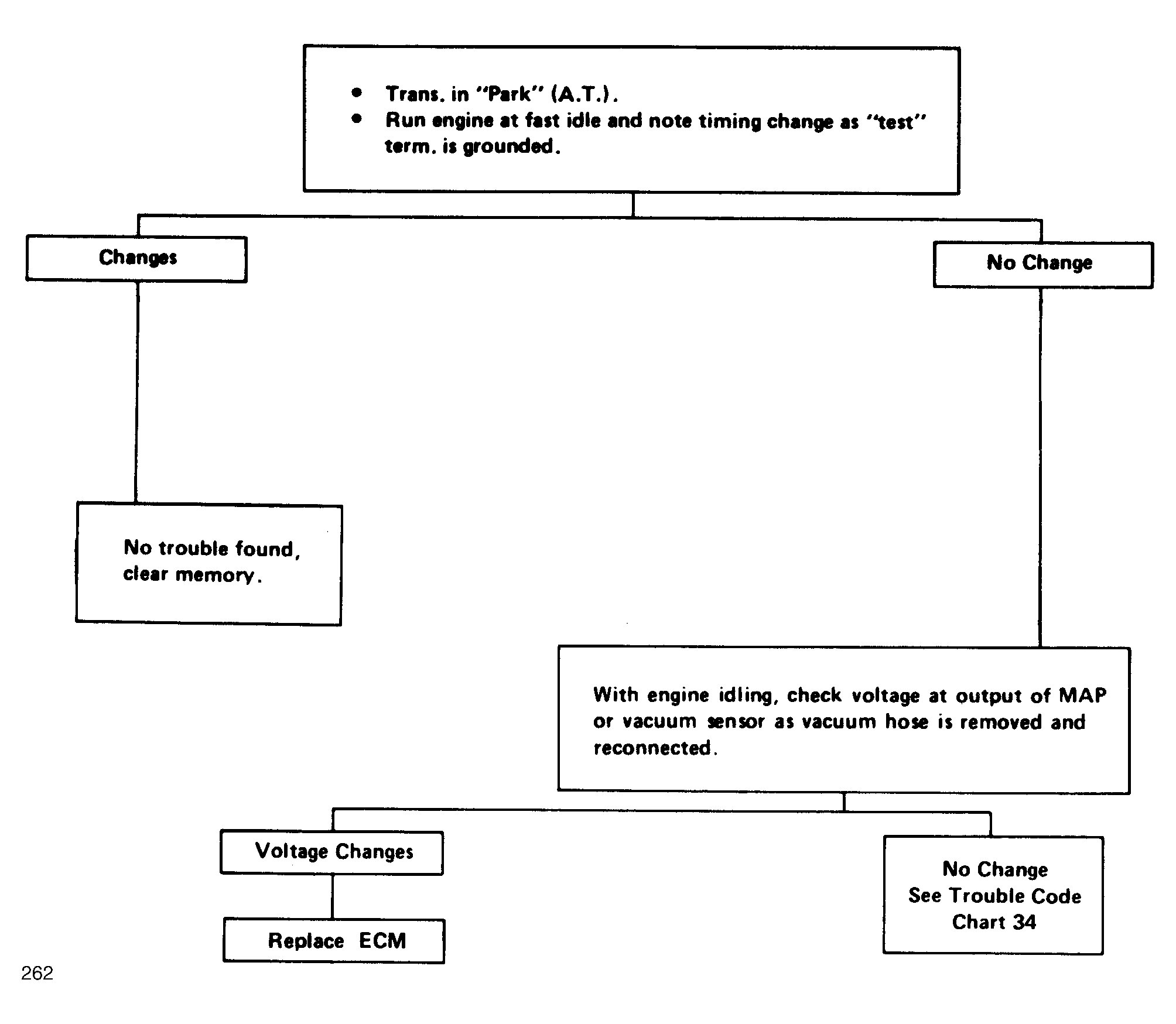

Fig 1: Flow Chart - EST Performance Check (Exc. 5.0L VIN "Y" & "9")

Fig 2: Flow Chart - EST Performance Check (Exc. 5.0L VIN "Y" & "9")

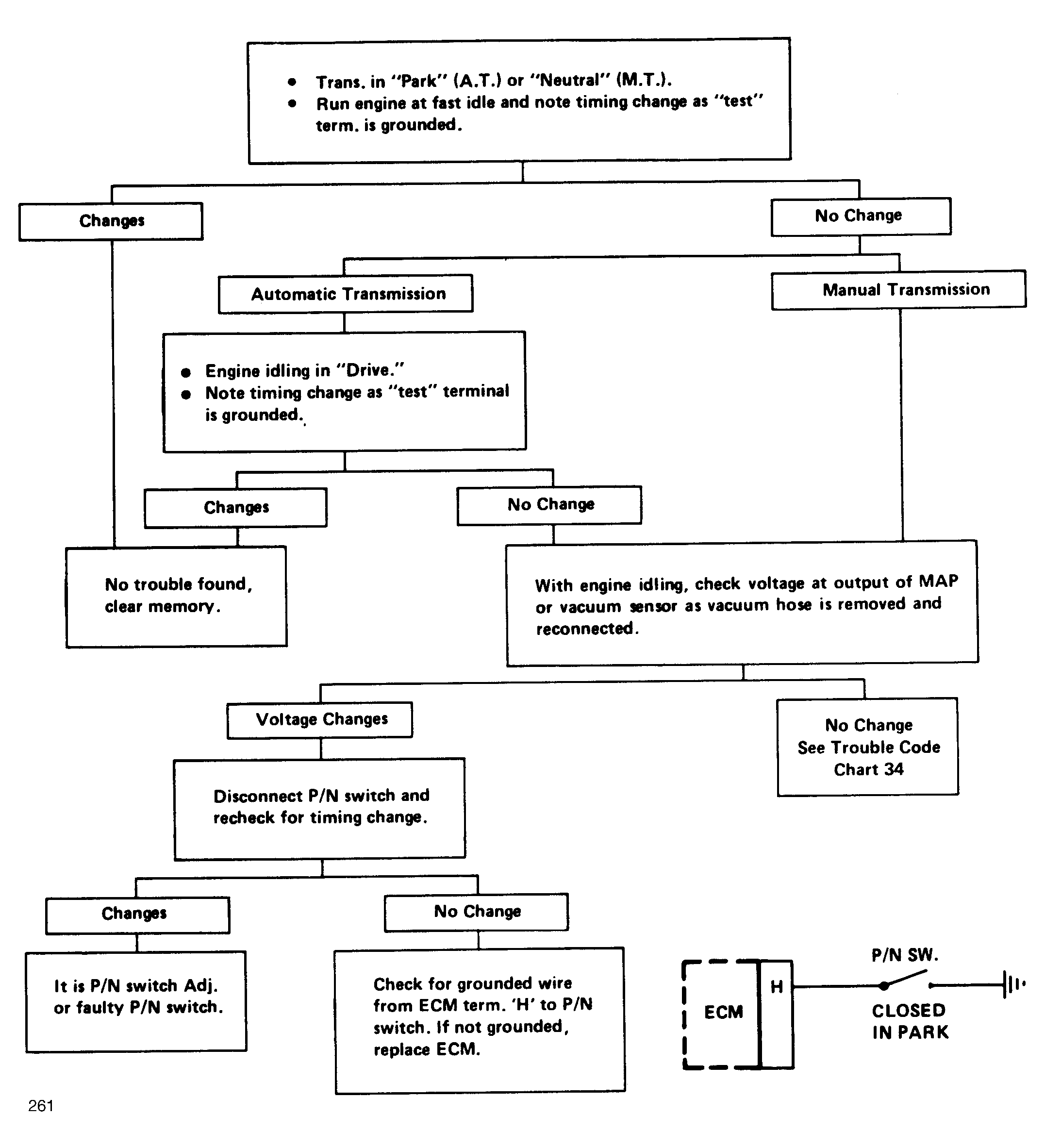

Fig 3: Flow Chart - EST Performance Check (5.0L VIN "Y" & "9")

Fig 4: Flow Chart - EST Performance Check (5.0L VIN "Y" & "9")
