Idle Speed Control Check

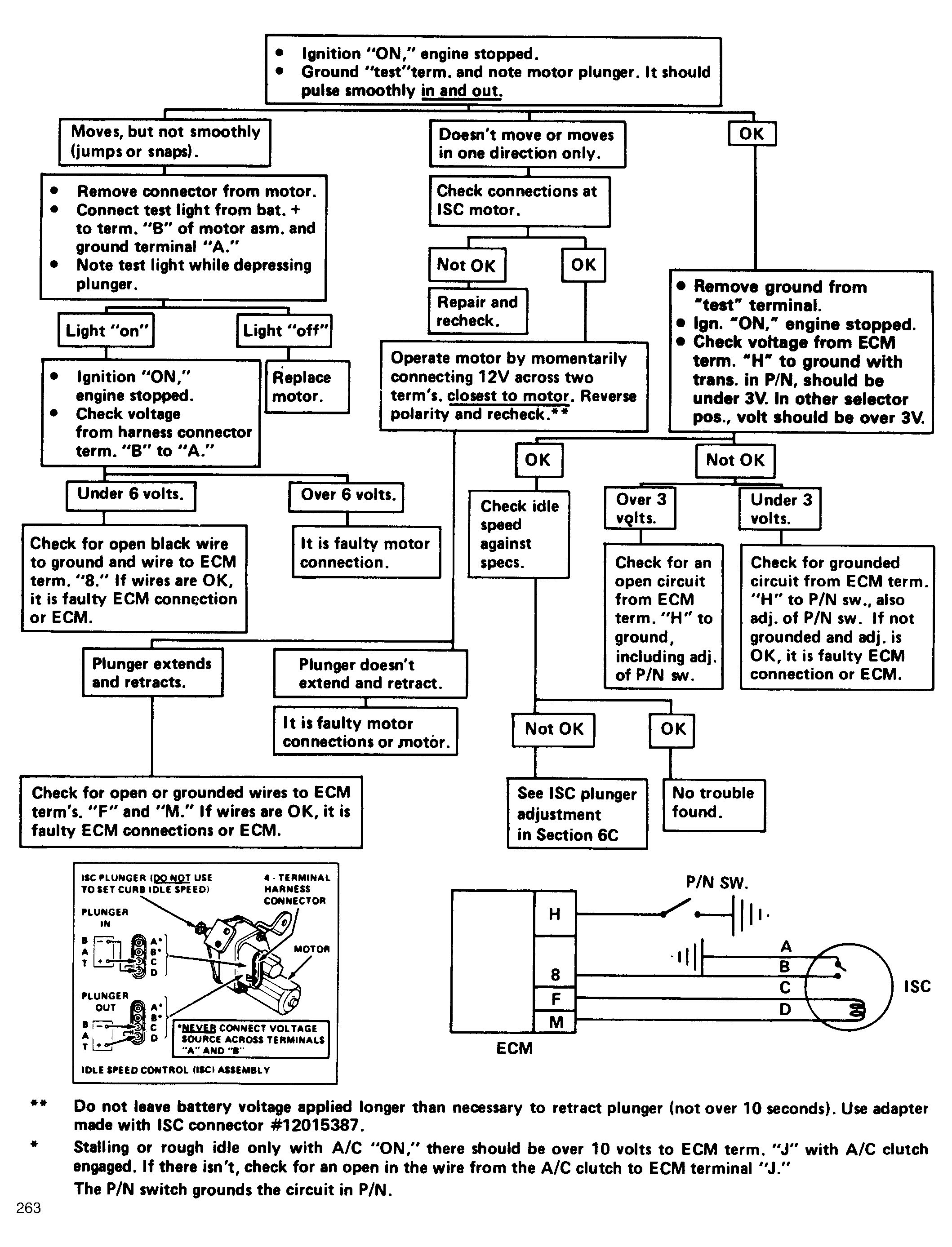

Fig 1: Flow Chart - Idle Speed Control (ISC) Check

G263

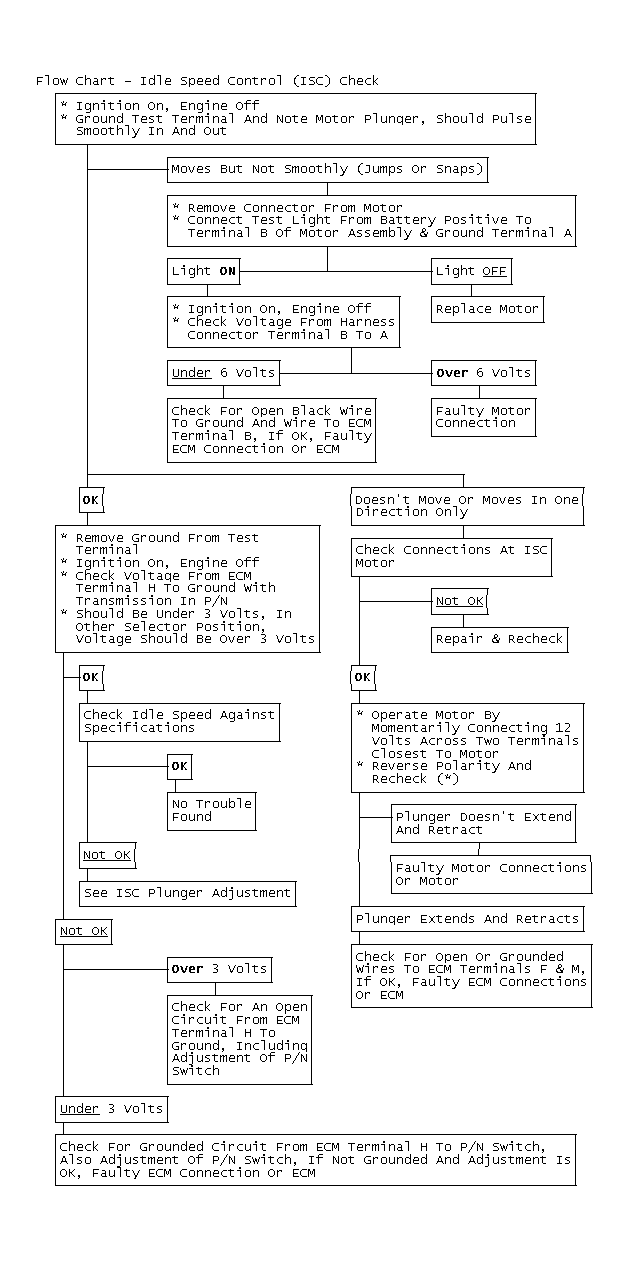

Fig 2: Flow Chart - Idle Speed Control (ISC) Check

GB0046406
