Feedback Carburetor Component Test
›
System Performance Check - Testing
System Performance Check - Testing

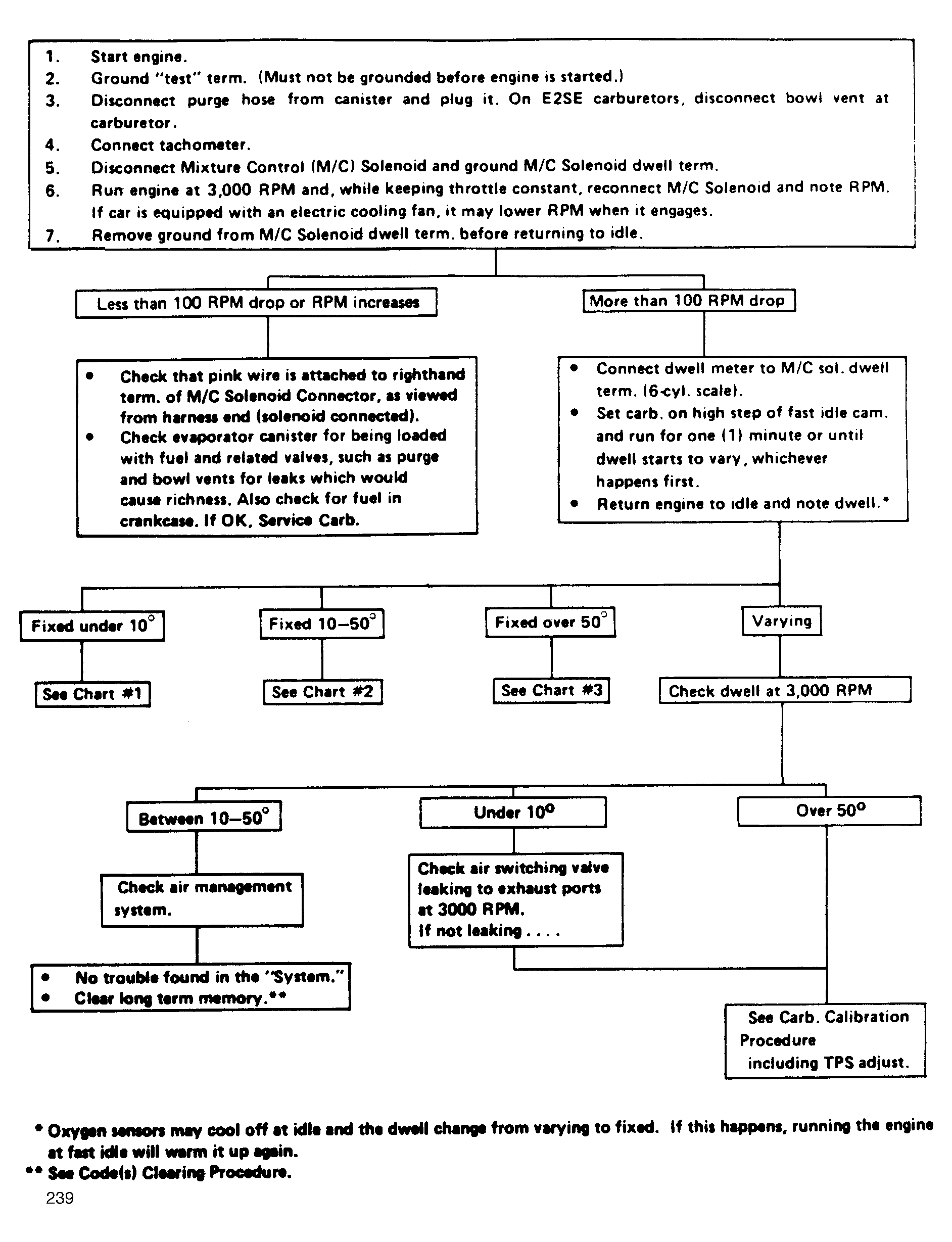

Fig 1: System Performance Check Chart
