"Check Engine" Light Inoperative

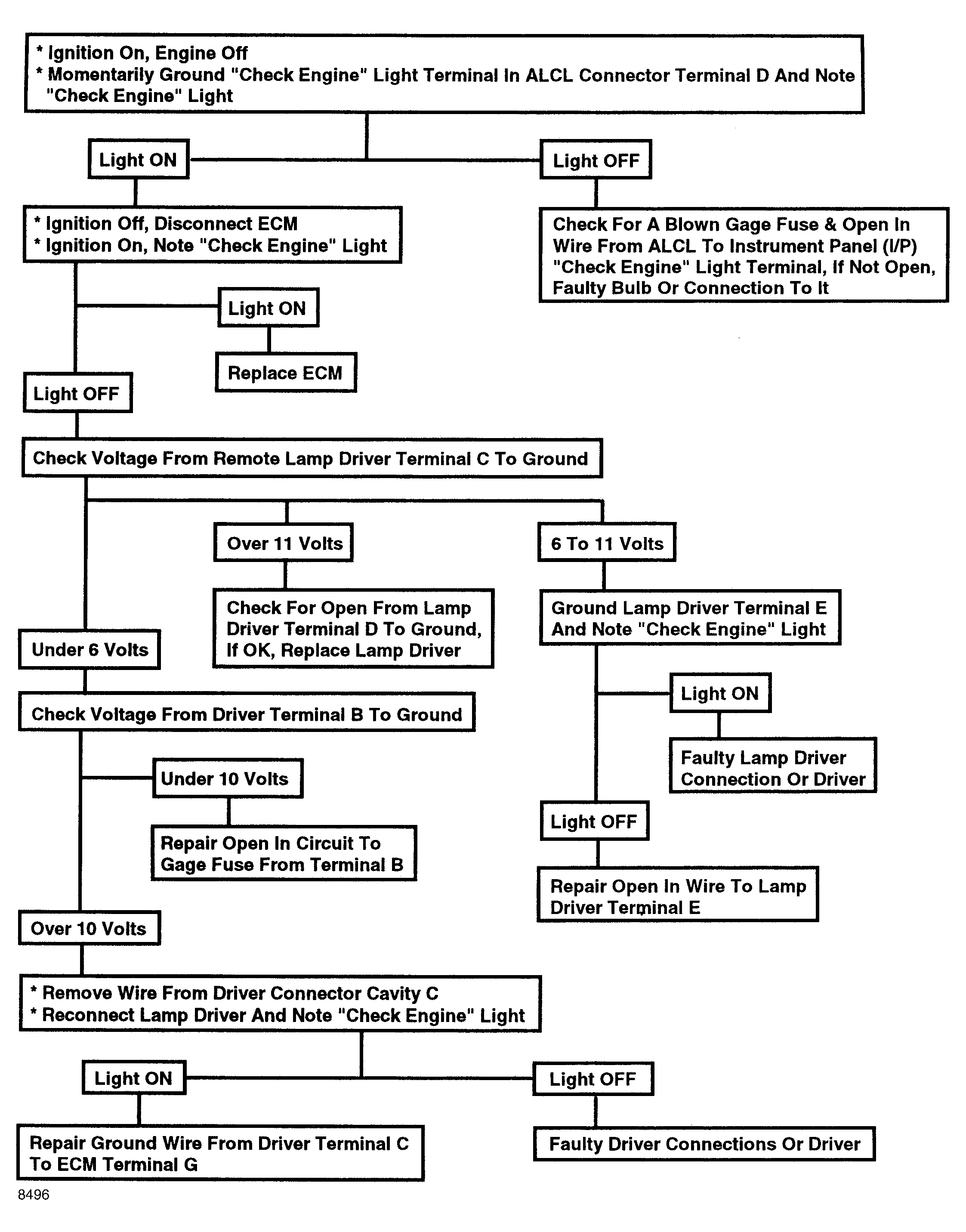

Fig 1: Flow Chart - "Check Engine" Light Inoperative

G8496

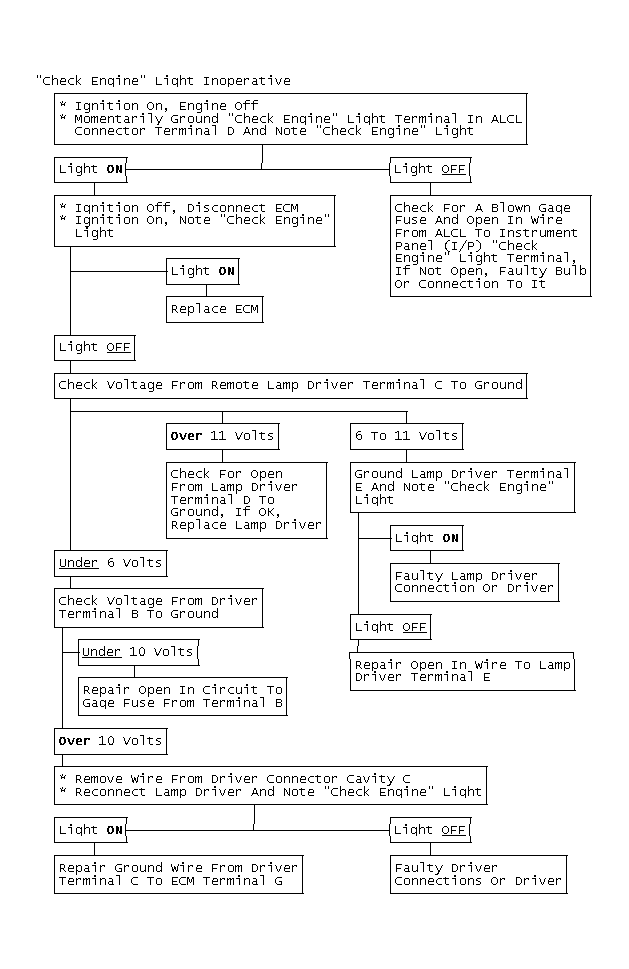

Fig 2: Flow Chart - "Check Engine" Light Inoperative

GB0048221
