Code 12 - No Reference To ECM

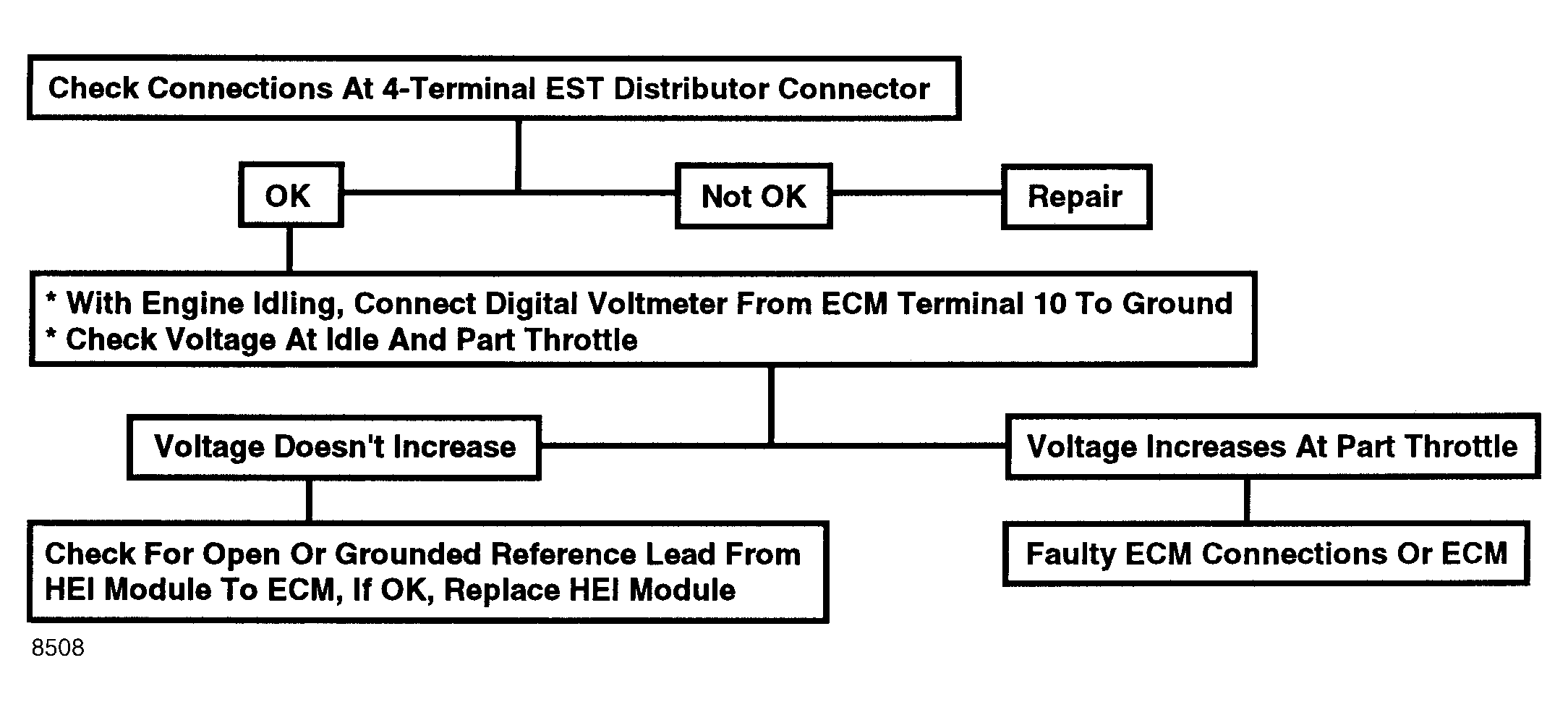

Fig 1: Flow Chart, Code 12 - No Distributor Reference Signal To ECM

G8508

Fig 2: Flow Chart - Code 12 - No Distributor Reference Signal To ECM

GB0048235
