Code 14 - Shorted Cts Circuit

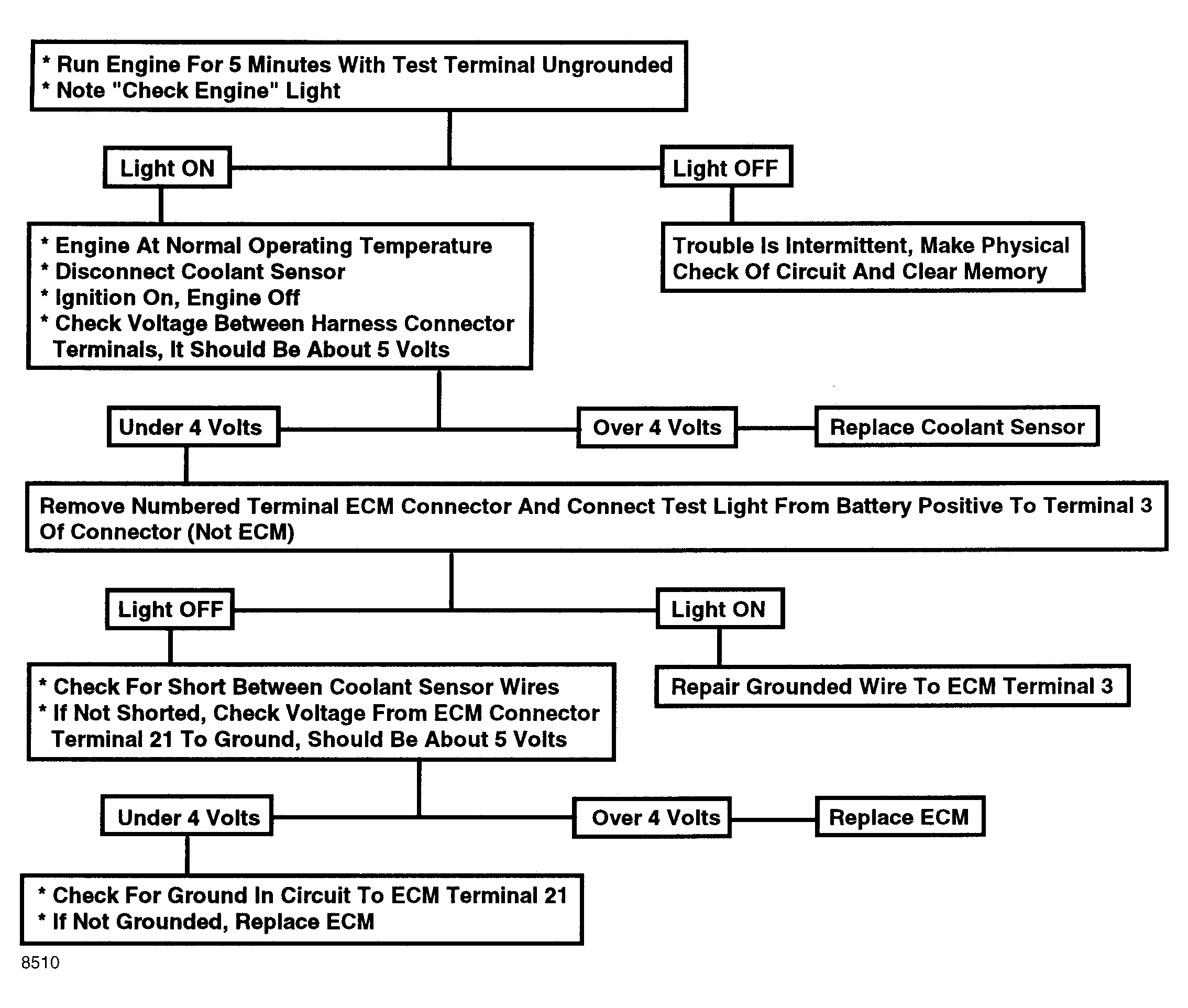

Fig 1: Flow Chart, Code 14 - Shorted Coolant Temp. Sensor (CTS) Ckt

G8510

Fig 2: Flow Chart - Code 14 - Shorted Coolant Temp. Sensor (CTS) Circuit

GB0048237
