Code 15 - Open Cts Circuit

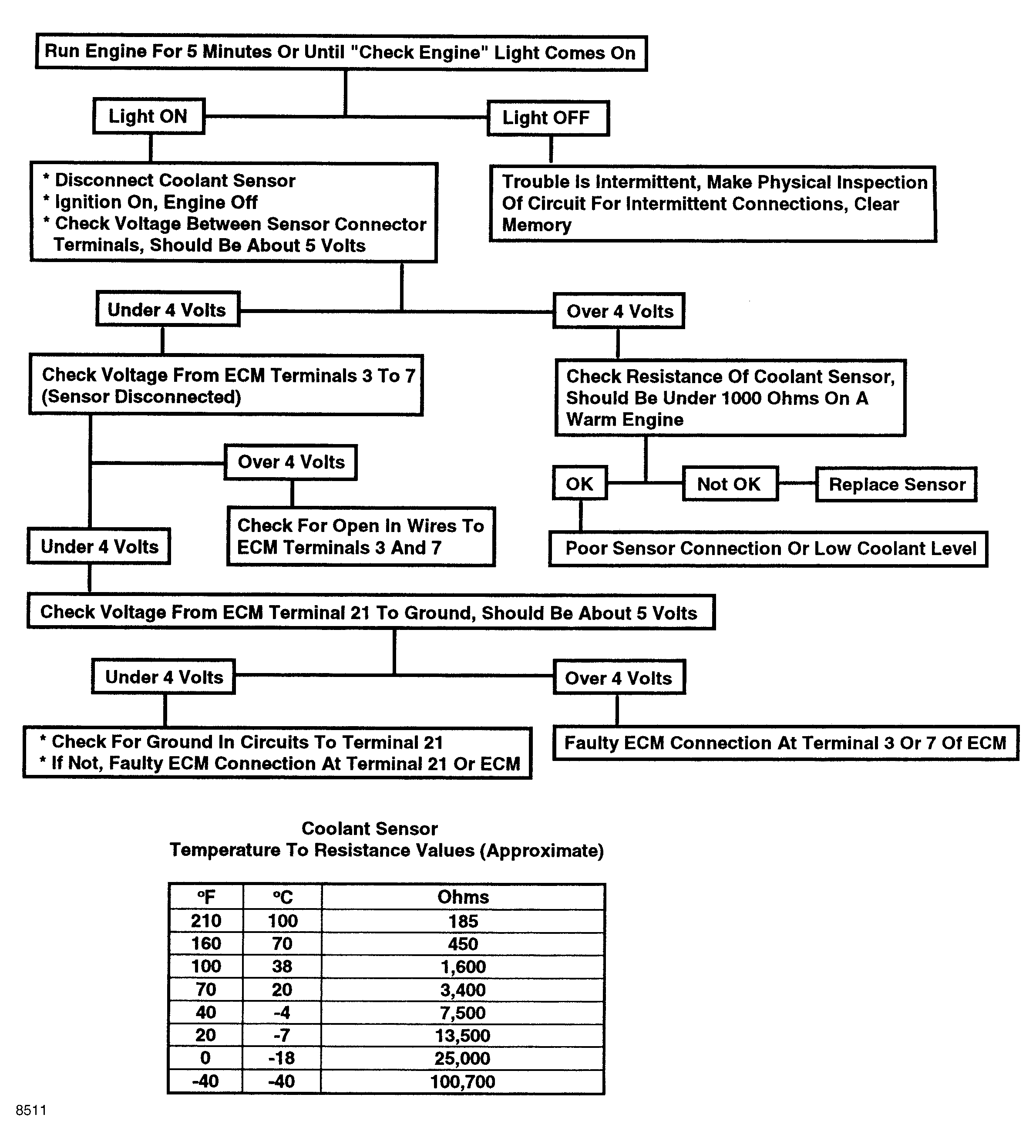

Fig 1: Flow Chart, Code 15 - Open Coolant Temp. Sensor (CTS) Circuit

G8511

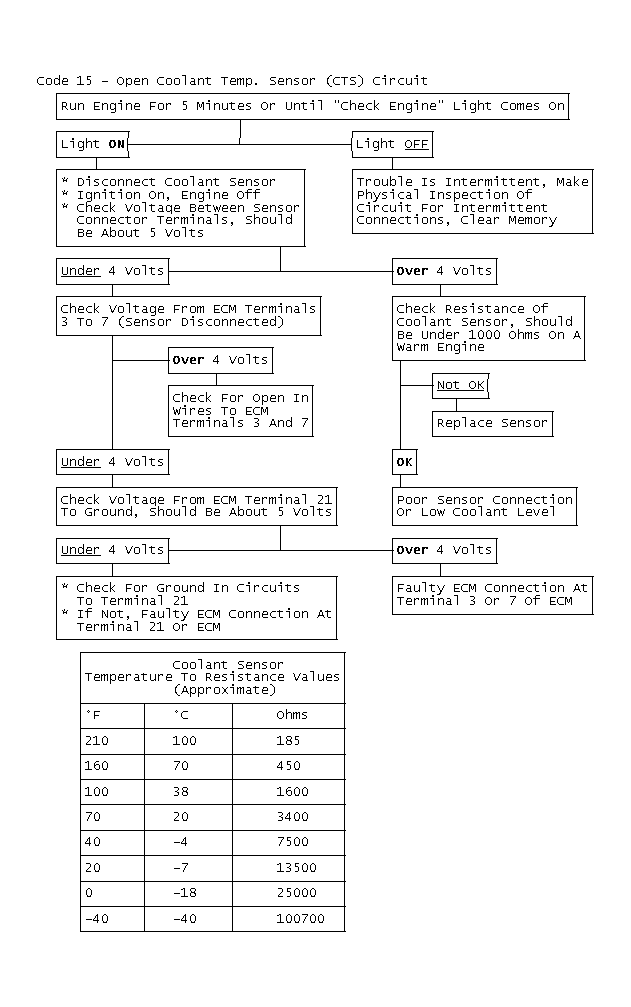

Fig 2: Flow Chart - Code 15 - Open Coolant Temp. Sensor (CTS) Circuit

GB0048238
