Code 54 - M/C Or ECM Fault

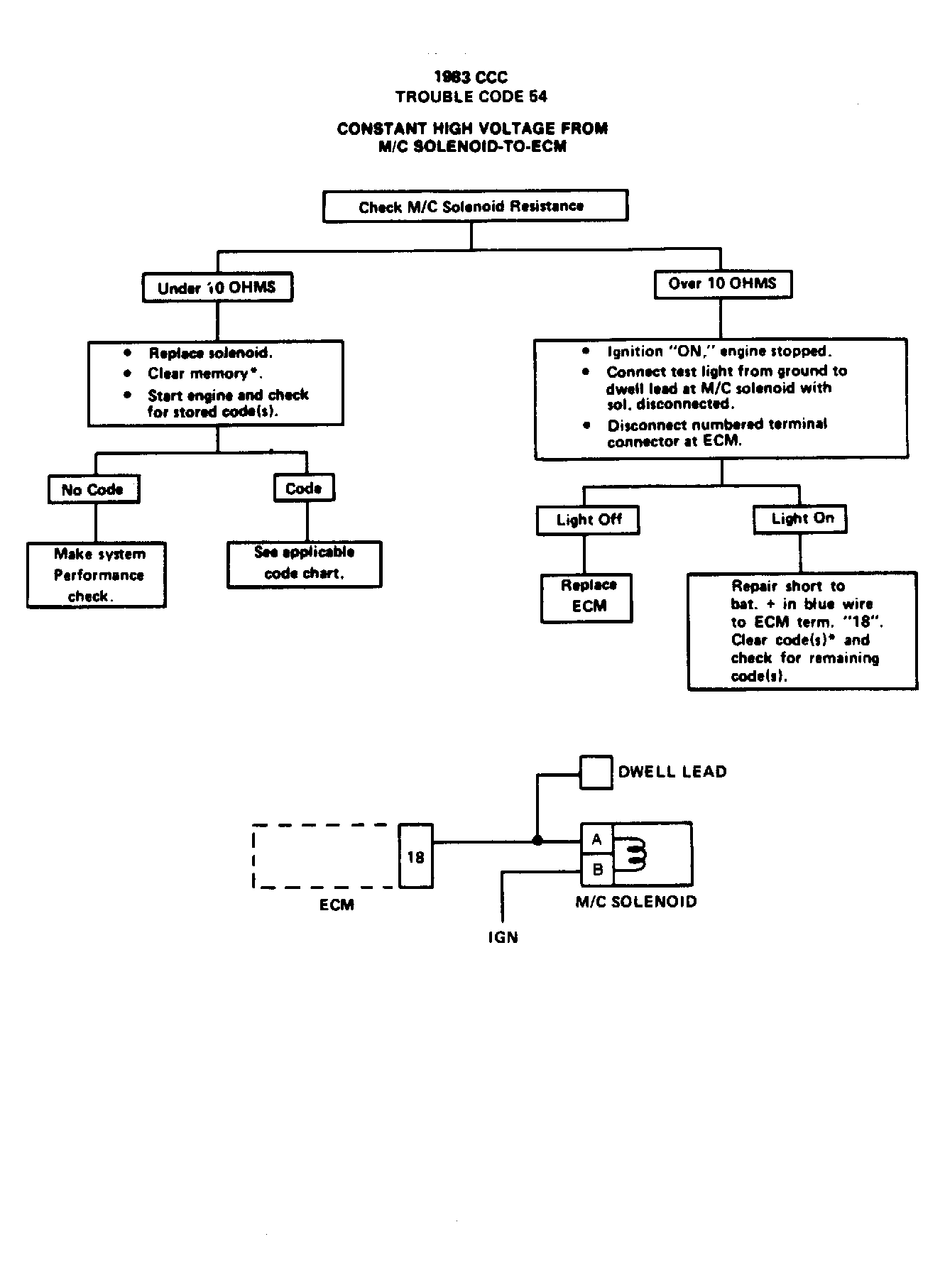

Fig 1: Flow Chart, Code 54 - Shorted Mix Control Sol or Faulty ECM

G8520

Fig 2: Flow Chart, Code 54 - Shorted Mixture Control Solenoid or Faulty ECM

GB0048246
