System Performance Check

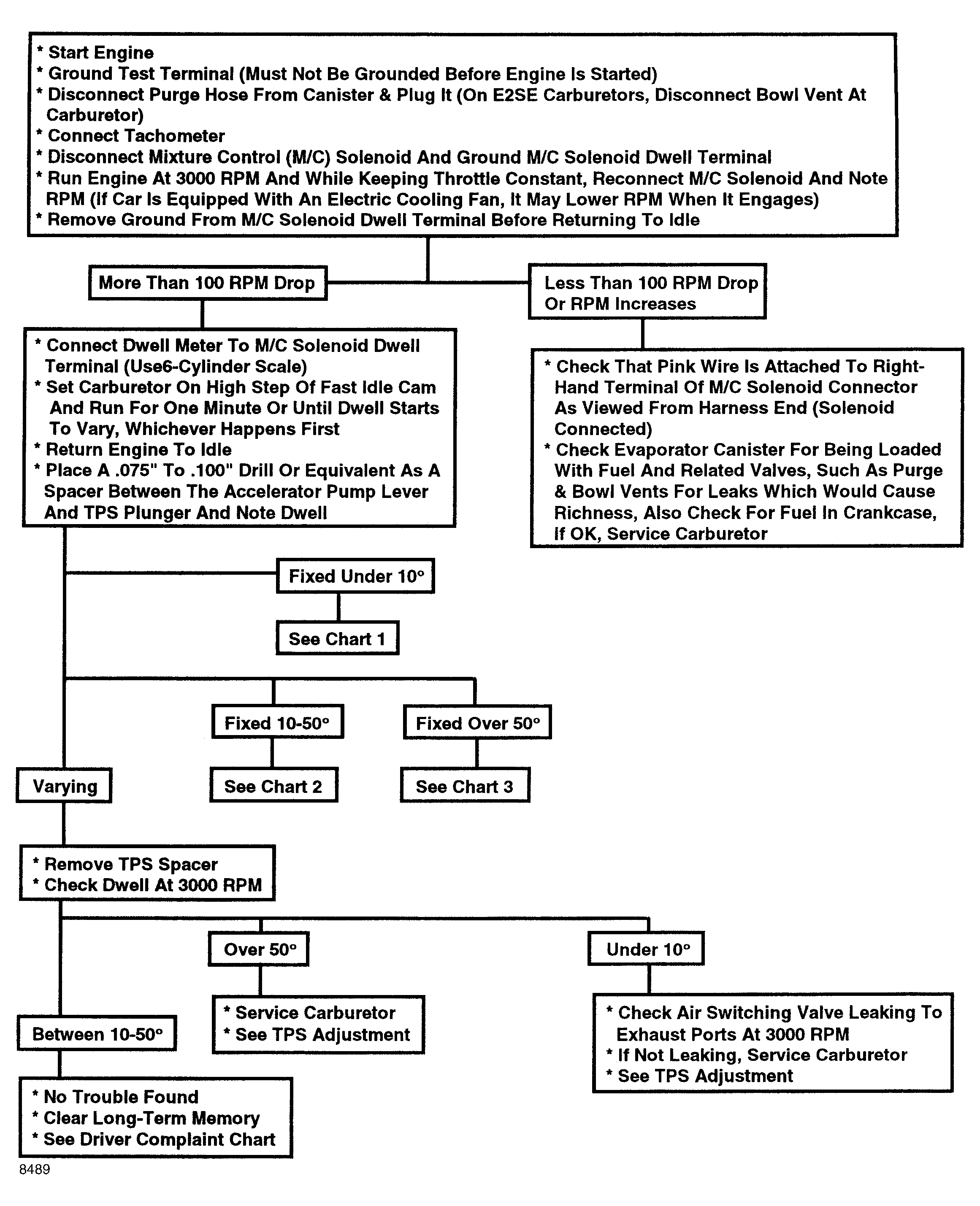

Fig 1: Flow Chart - System Performance Check

G8489

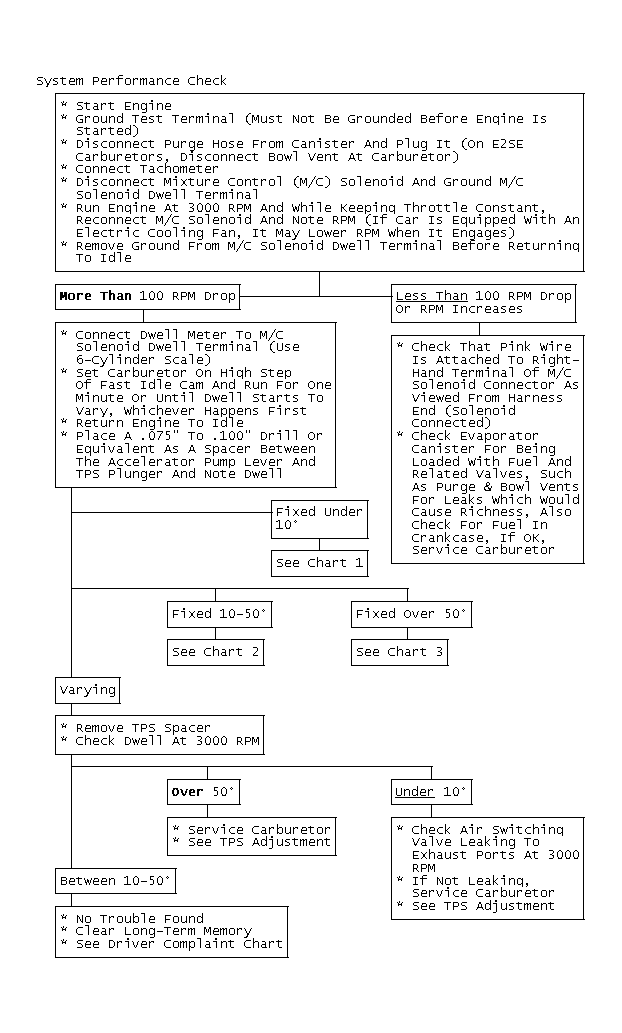

Fig 2: Flow Chart - System Performance Check

GB0048216
