Feedback Carburetor Tests W/Codes
›
Vacuum Sensor Output Check
Vacuum Sensor Output Check

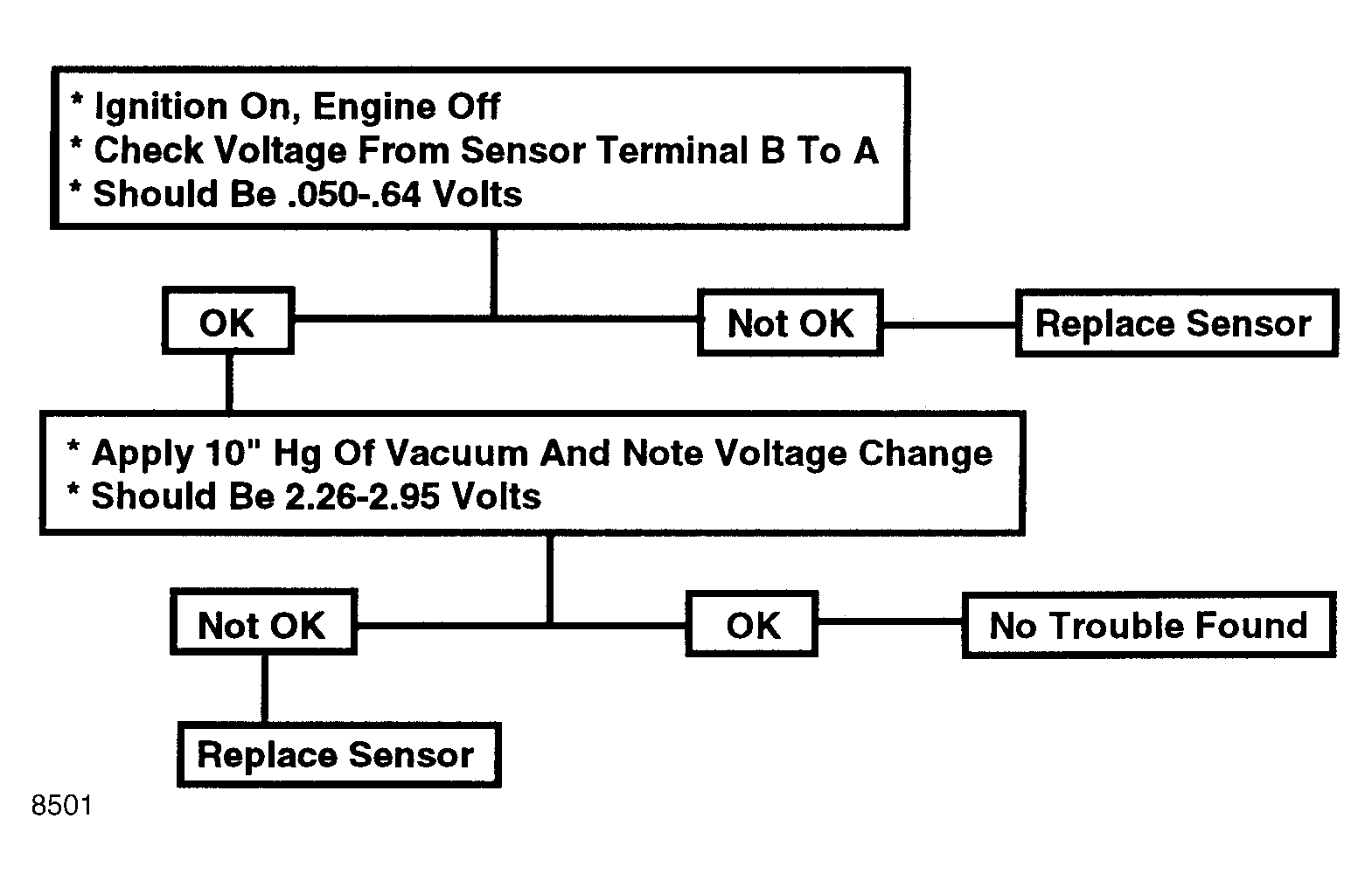

Fig 1: Flow Chart - Vacuum Sensor Output Check
Fig 2: Flow Chart - Vacuum Sensor Output Check
