Code 12 - No Reference Signal To ECM

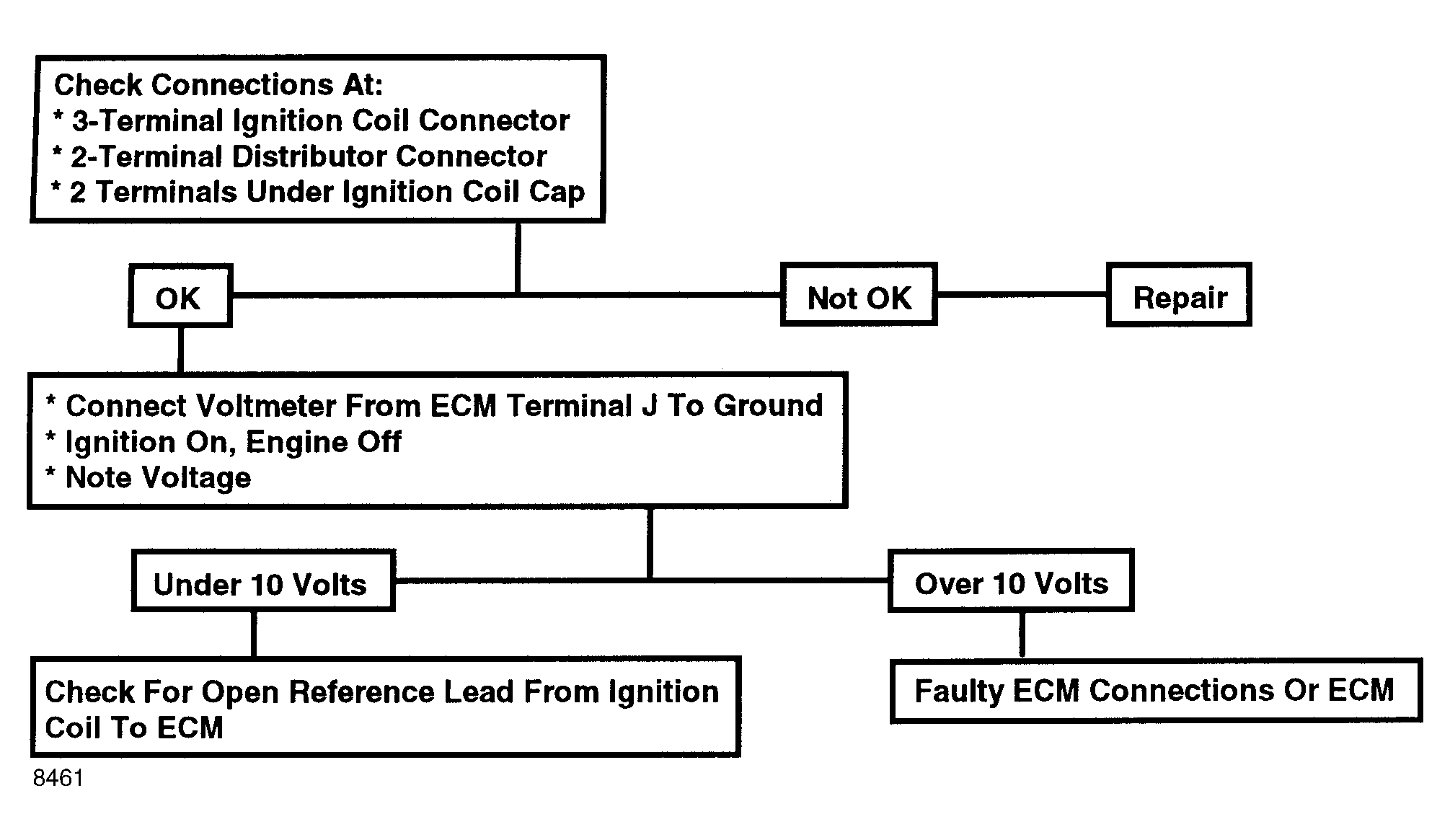

Fig 1: Flow Chart, Trouble Code 12 - No Reference Signal To ECM

G8461

Fig 2: Flow Chart, Trouble Code 12 - No Reference Signal To ECM

GB0047676
