Code 14 - Shorted Cts Circuit

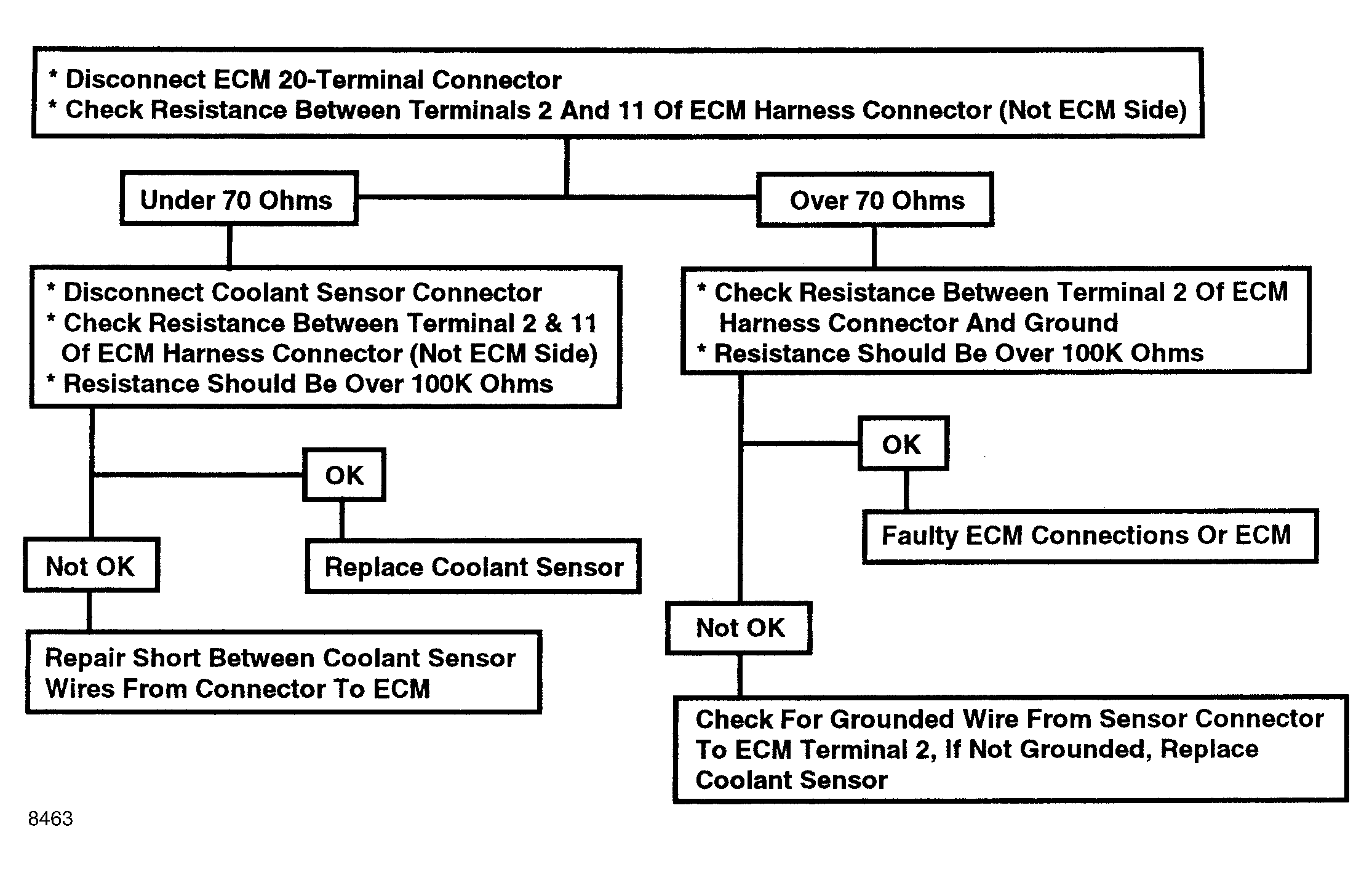

Fig 1: Flow Chart, Trouble Code 14 - Shorted Coolant Temp Sens Ckt

G8463

Fig 2: Flow Chart, Trouble Code 14 - Shorted Coolant Temp Sens Ckt

GB0047677
