Code 15 - Open Cts Circuit

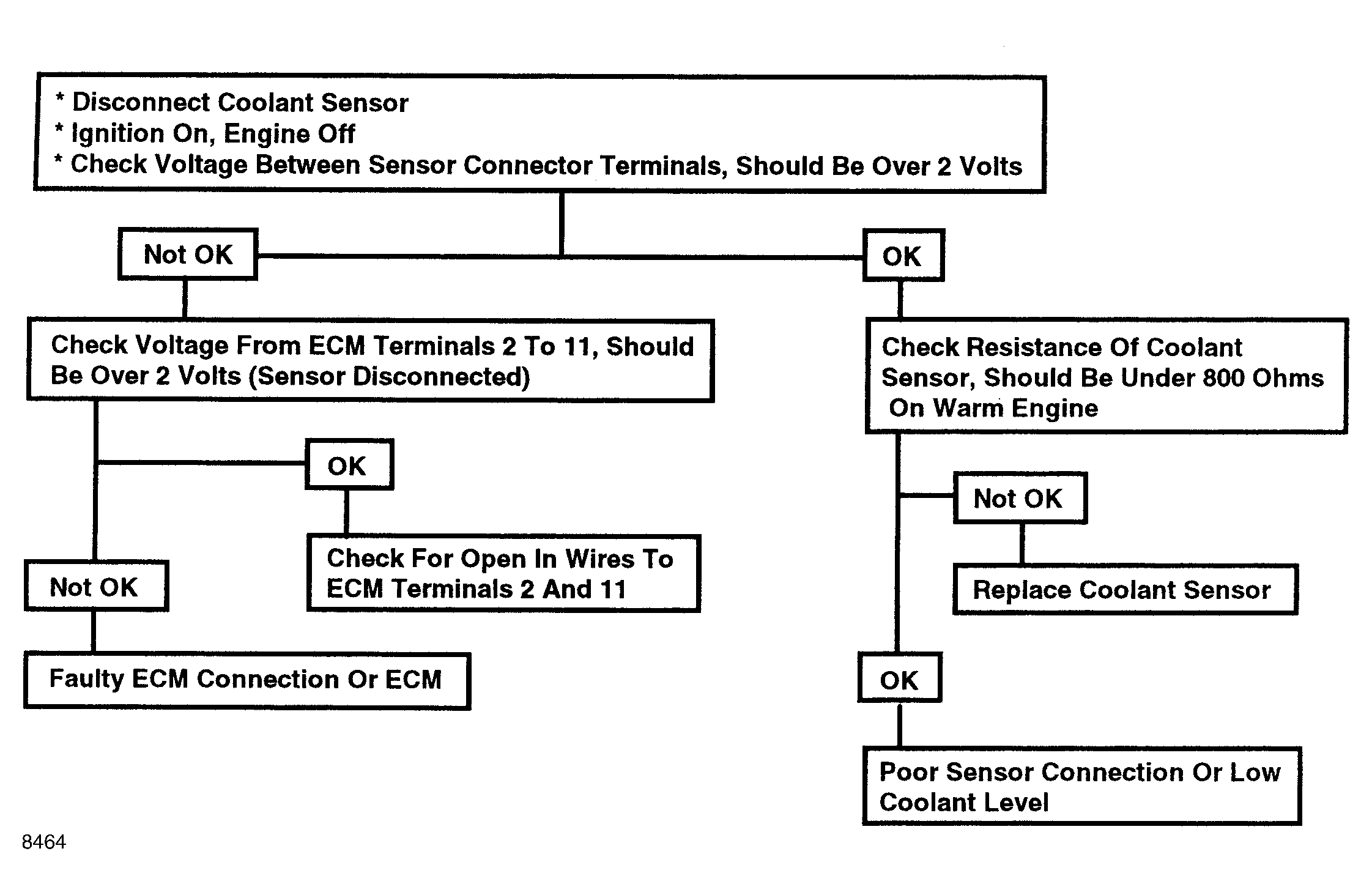

Fig 1: Flow Chart, Trouble Code 15 - Open Coolant Temp Sens Ckt

G8464

Fig 2: Flow Chart, Trouble Code 15 - Open Coolant Temp Sens Ckt

GB0047678
