Code 45 - Rich O2 Sensor Indication

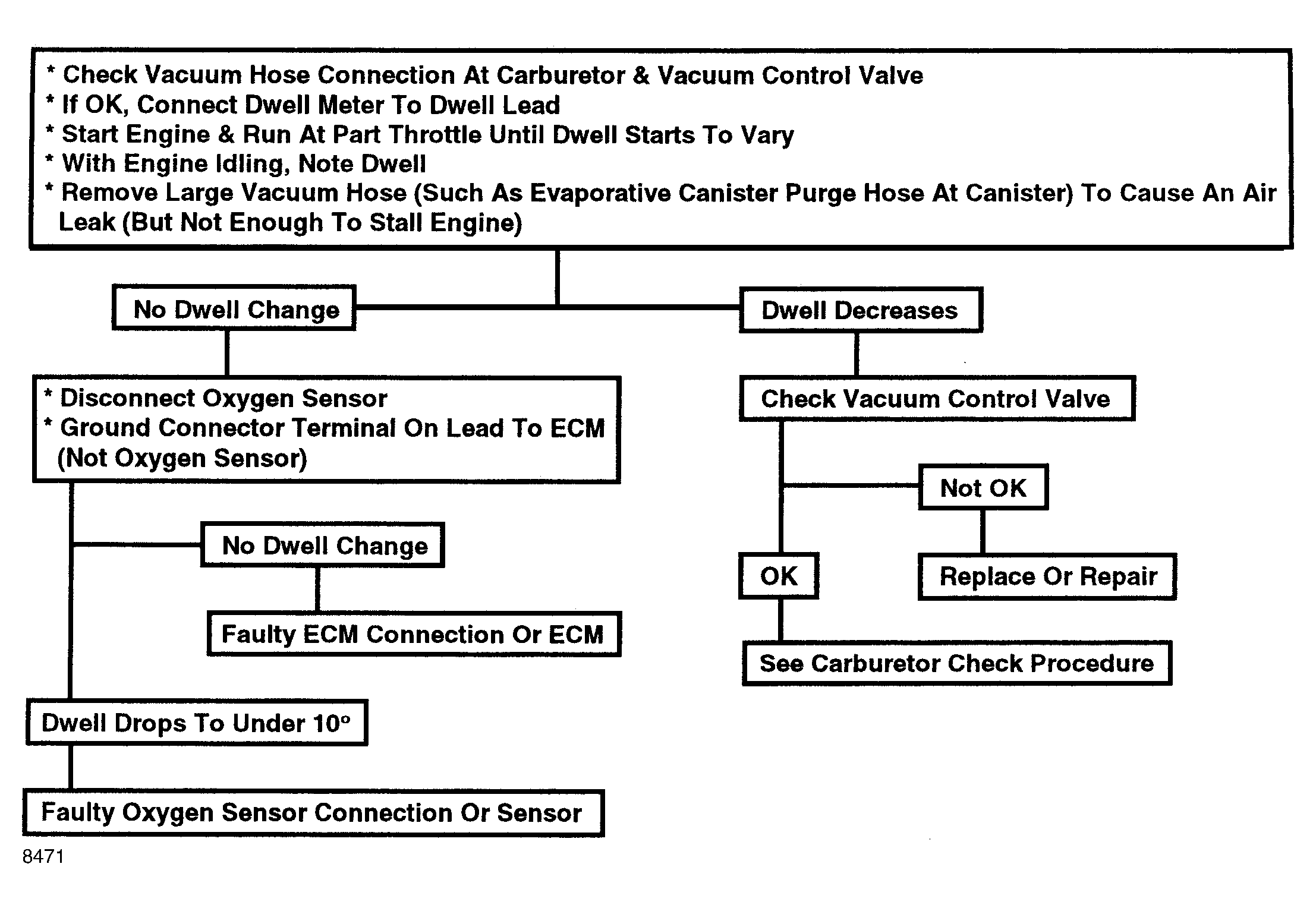

Fig 1: Flow Chart, Trouble Code 45 - Rich Oxygen (O2) Sensor Indication

G8471

Fig 2: Flow Chart, Trouble Code 45 - Rich Oxygen (O2) Sensor Indication

GB0047685
