2.8L CEC Tests W/Codes
›
Code 13 - O2 Sensor CKT
Code 13 - O2 Sensor CKT

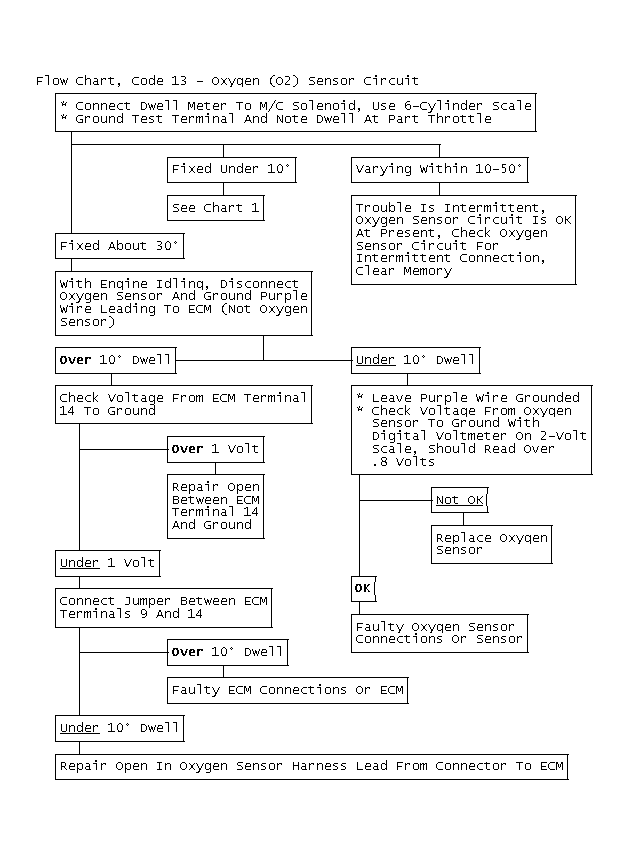

Fig 1: Flow Chart, Code 13 - Oxygen (O2) Sensor Circuit
Fig 2: Flow Chart, Code 13 - Oxygen (O2) Sensor Circuit
