Code 44 - Lean O2 Indication

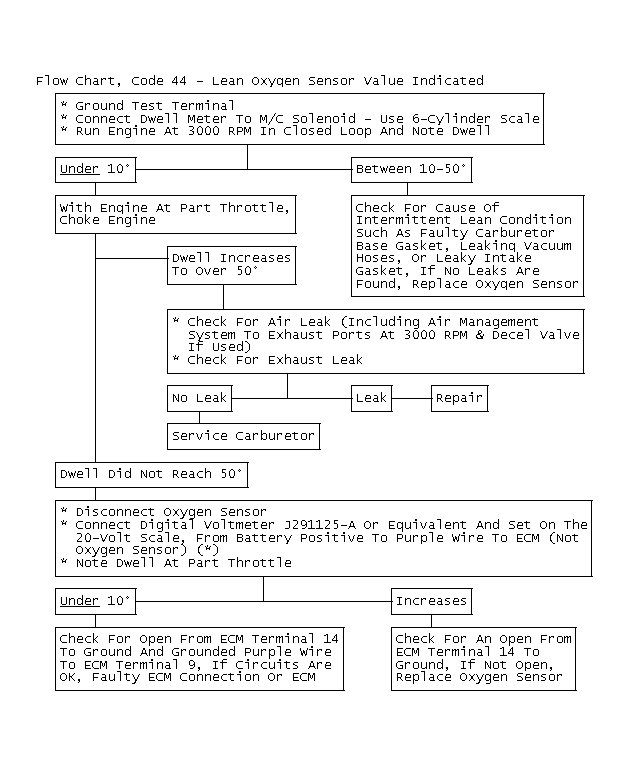

Fig 1: Flow Chart, Code 44 - Lean Oxygen Sensor Value Indicated

NOTE: If M/C solenoid does not click with ignition ON and TEST terminal grounded, and there is no code 23 or 54, check for sticking M/C solenoid.

Fig 2: Flow Chart, Code 44 - Lean Oxygen Sensor Value Indicated
